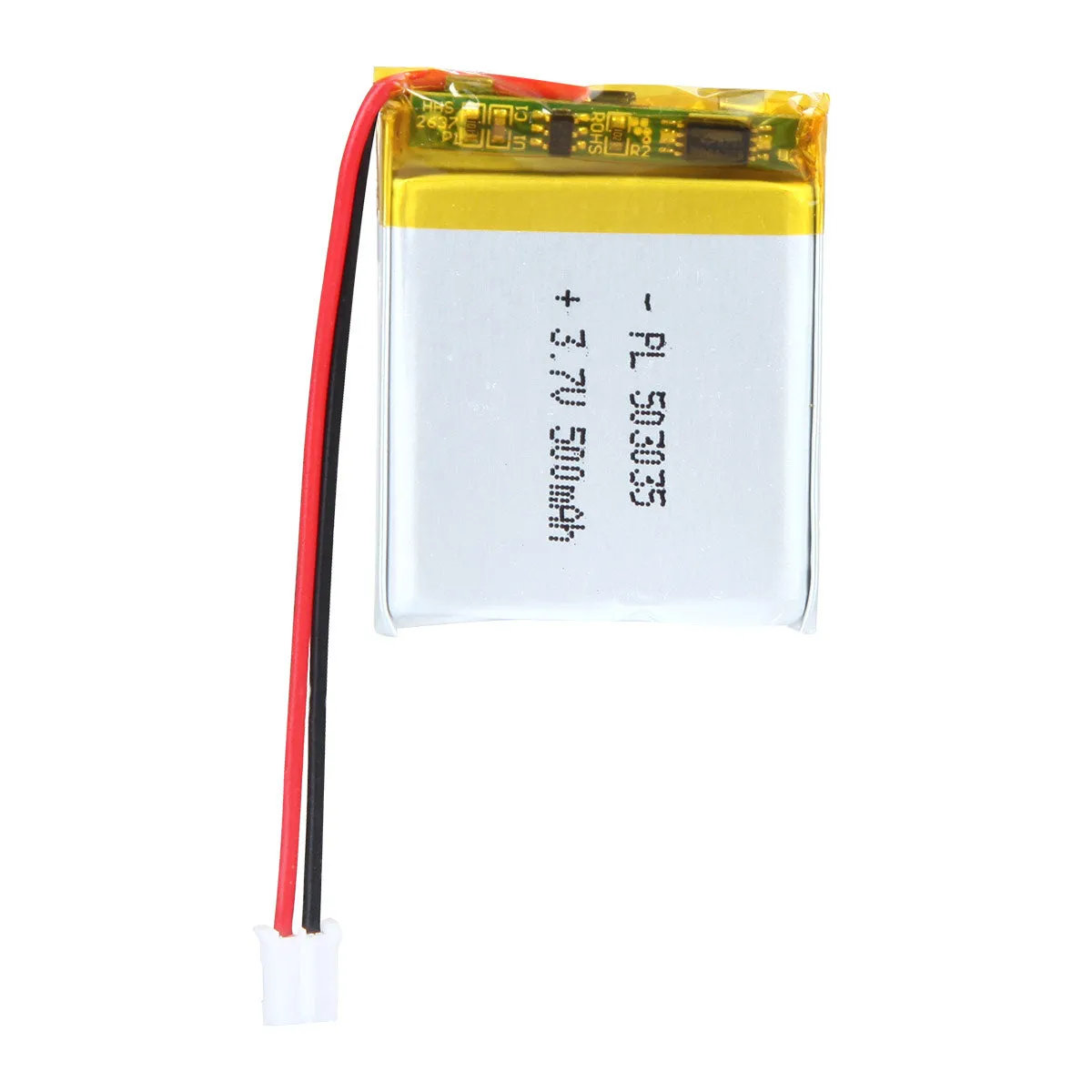

THOR 503035 3.7V 500mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

THOR 503035 3.7V 500mAh LiPo battery dimension drawing showing T×W×L = 5 × 30 × 37 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

Exploded multilayer structure of a LiPo pouch cell showing tabs, pouch film, electrodes, separator, current collectors and insulating layers

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-503035 provides 500mAh in a 5 × 30 × 35mm bare-cell envelope. THOR-602535 keeps the same capacity and 35mm length while narrowing the cell to 25mm, but increases nominal thickness to 6mm. THOR-603030 is 5mm shorter at the same capacity, but also uses 6mm thickness. Choose THOR-503035 when lower depth is more important than minimum width or length.

The 5 × 30 × 35mm value is the nominal bare-cell envelope, not a guaranteed finished-pack size. PCM position, insulation, lead exit, connector body and wire bend radius can add space around the cell. Confirm the production-intent assembly before enclosure approval.

At 3.7V nominal and 500mAh, THOR-503035 stores 1.85Wh. Runtime depends on standby and active load, conversion efficiency, cutoff voltage, duty cycle, temperature and aging. Capacity and geometry do not establish current capability; validate continuous and peak demand with the approved assembly.

THOR-503035 Engineering & Fit Questions

How does THOR-503035 compare with THOR-602535 and THOR-603030?

THOR-602535↗ is 5mm narrower at the same capacity and length, but increases thickness from 5mm to 6mm. THOR-603030↗ is 5mm shorter at the same capacity, also at 6mm thickness.

Are 5 × 30 × 35mm the finished THOR-503035 dimensions?

No. They are nominal bare-cell dimensions. PCM placement, insulation, connector body, lead exit and wire routing can increase the finished envelope, so confirm the production-intent assembly before enclosure release.

How should THOR-503035 runtime and load suitability be validated?

Use 1.85Wh as the nominal energy starting point, then measure standby drain, active duty cycle, pulse load, conversion losses, cutoff voltage and temperature effects. Verify the approved PCM and harness in the actual device.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-503035
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 500mAh Lithium Polymer (LiPo) Battery with Connector | THOR-503035

THOR-503035 is a 3.7V 500mAh LiPo pouch cell with 1.85Wh nominal energy and a 5 × 30 × 35mm bare-cell envelope. It trades 5mm more width for 1mm less thickness than THOR-602535 while preserving the same 35mm length and capacity. Final pack dimensions and load suitability require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-503035

Mechanical Characteristics

Model	THOR-503035
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	5 × 30 × 35 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 11 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	500 mAh
Energy	1.85 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	100 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	500 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	100 mA (0.2C)
Max. Continuous Discharge	500 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-503035

Slim Handheld Measurement Modules — PrimaryThe 5mm profile and 30 × 35mm footprint can suit compact measurement modules where enclosure depth is limited. Confirm display, sensor, processor and transient loads.

Rechargeable Wireless Sensor HubsTHOR-503035 may suit small sensor hubs after standby drain, wake frequency, radio bursts and the protected-pack envelope are validated.

Compact Access-Control & Identification TerminalsThe 1.85Wh nominal energy can support small access or identification terminals when reader, display and wireless duty cycles are measured in the final device.
