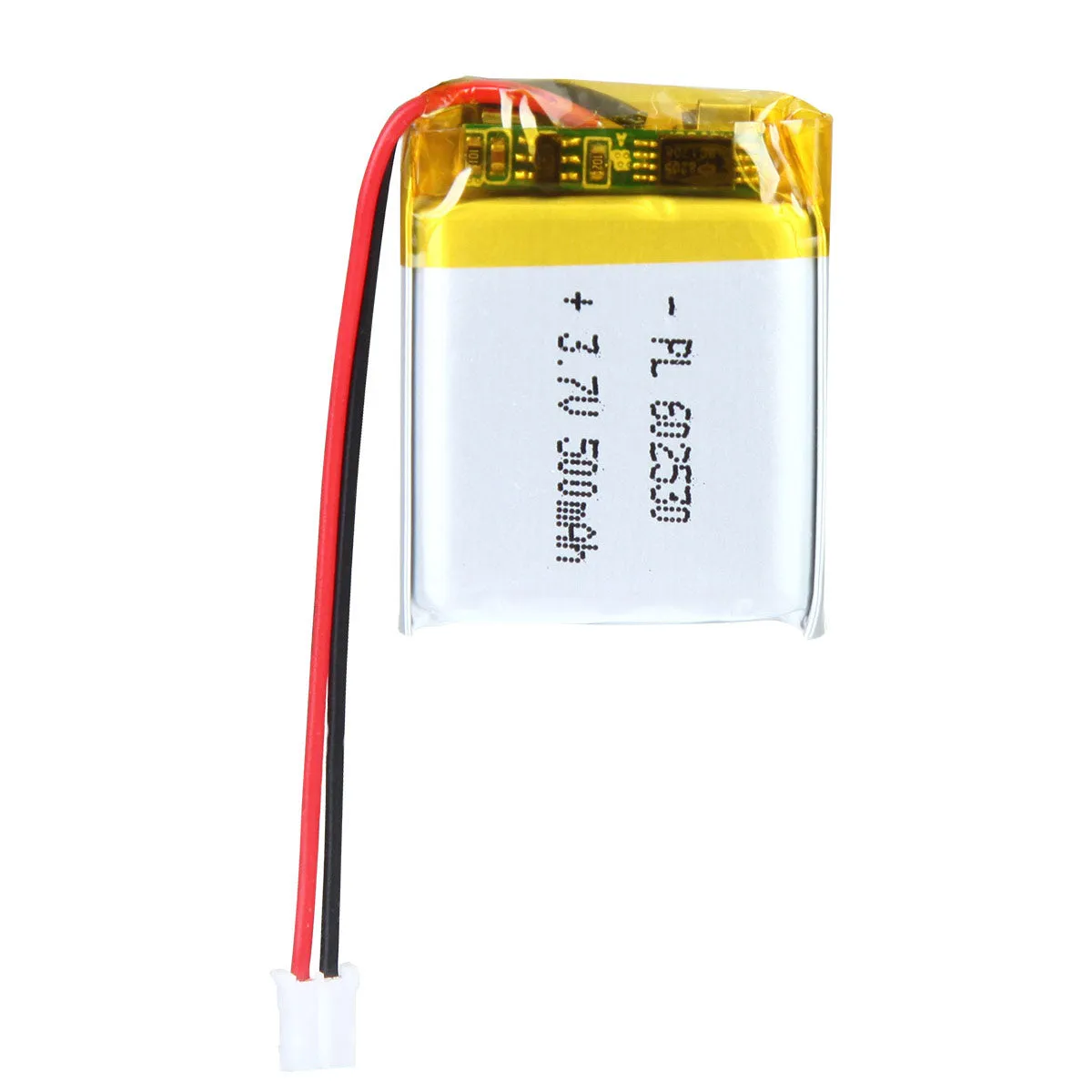

THOR 602530 3.7V 500mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

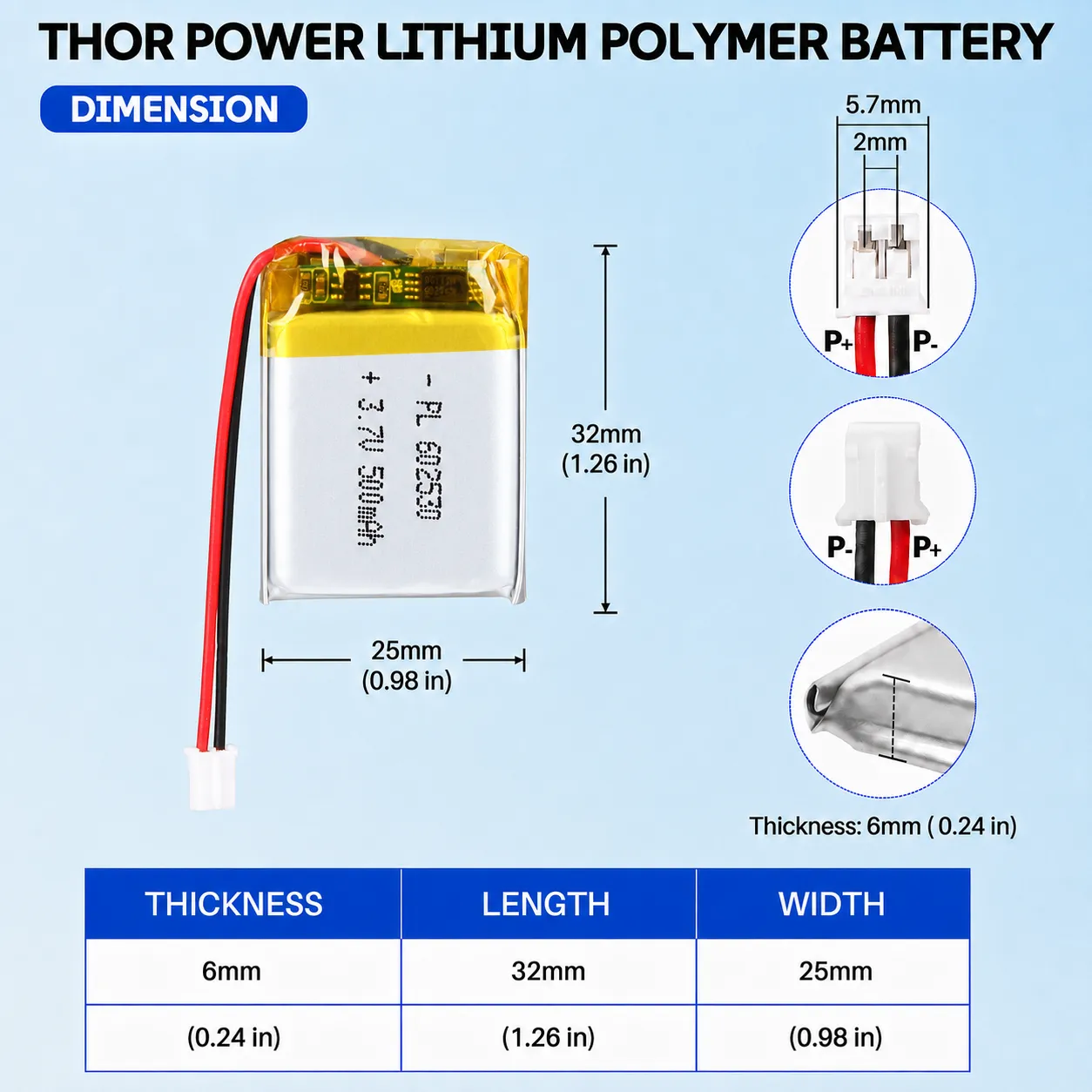

THOR 602530 3.7V 500mAh LiPo battery dimension drawing showing T×W×L = 6.0 × 25 × 32 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-602530 provides 500mAh in a short 6 × 25 × 30mm bare-cell envelope. THOR-602535 keeps the same thickness, width and capacity but adds 5mm of length. THOR-503035 reduces thickness to 5mm at the same capacity, but requires a wider and longer 30 × 35mm footprint. Choose THOR-602530 when the 25 × 30mm plan area is the binding constraint.

The 6 × 25 × 30mm value is the nominal bare-cell envelope, not a guaranteed finished-pack dimension. PCM placement, insulation, connector body, lead exit and wire bend radius can require additional clearance. Confirm the production-intent assembly before enclosure approval.

At 3.7V nominal and 500mAh, THOR-602530 stores 1.85Wh. Runtime depends on standby drain, active duty cycle, regulator efficiency, cutoff voltage, temperature and aging. Capacity and geometry do not establish current capability; validate continuous and peak demand with the approved cell, PCM and harness.

THOR-602530 Engineering & Fit Questions

How does THOR-602530 compare with THOR-602535 and THOR-503035?

THOR-602535↗ keeps the same 6mm thickness, 25mm width and 500mAh capacity but is 5mm longer. THOR-503035↗ reduces thickness to 5mm at the same capacity but requires a 30 × 35mm footprint.

Are 6 × 25 × 30mm the finished THOR-602530 dimensions?

No. They are nominal bare-cell dimensions. PCM placement, insulation, connector body, lead exit and wire routing can increase the finished envelope, so confirm the production-intent assembly before enclosure release.

How should THOR-602530 runtime and load suitability be checked?

Use 1.85Wh as the nominal energy starting point, then measure standby drain, active duty cycle, pulse load, regulator losses, cutoff voltage and temperature effects. Validate the final protection and harness before sample approval.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-602530
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 500mAh Lithium Polymer (LiPo) Battery with Connector | THOR-602530

THOR-602530 is a 3.7V 500mAh LiPo pouch cell with 1.85Wh nominal energy and a short 6 × 25 × 30mm bare-cell envelope. It prioritizes minimum length within the 25mm-wide family, while THOR-602535 adds 5mm of length at the same capacity. Final pack dimensions and load suitability require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-602530

Mechanical Characteristics

Model	THOR-602530
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	6 × 25 × 30 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 9 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	500 mAh
Energy	1.85 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	100 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	500 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	100 mA (0.2C)
Max. Continuous Discharge	500 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-602530

Short-Body Wireless Sensor Modules — PrimaryThe 25 × 30mm plan area can suit compact sensor modules where battery length is tightly constrained. Confirm standby drain, sample interval, radio bursts and the finished-pack envelope.

Compact Handheld Control ModulesTHOR-602530 may suit small controllers or remote modules designed around a short battery bay. Validate button, radio and indicator duty cycles together with connector clearance.

Rechargeable Identification & Access ModulesThe 1.85Wh nominal energy can support compact identification or access electronics when reader, display and communication loads are measured in the final device.
