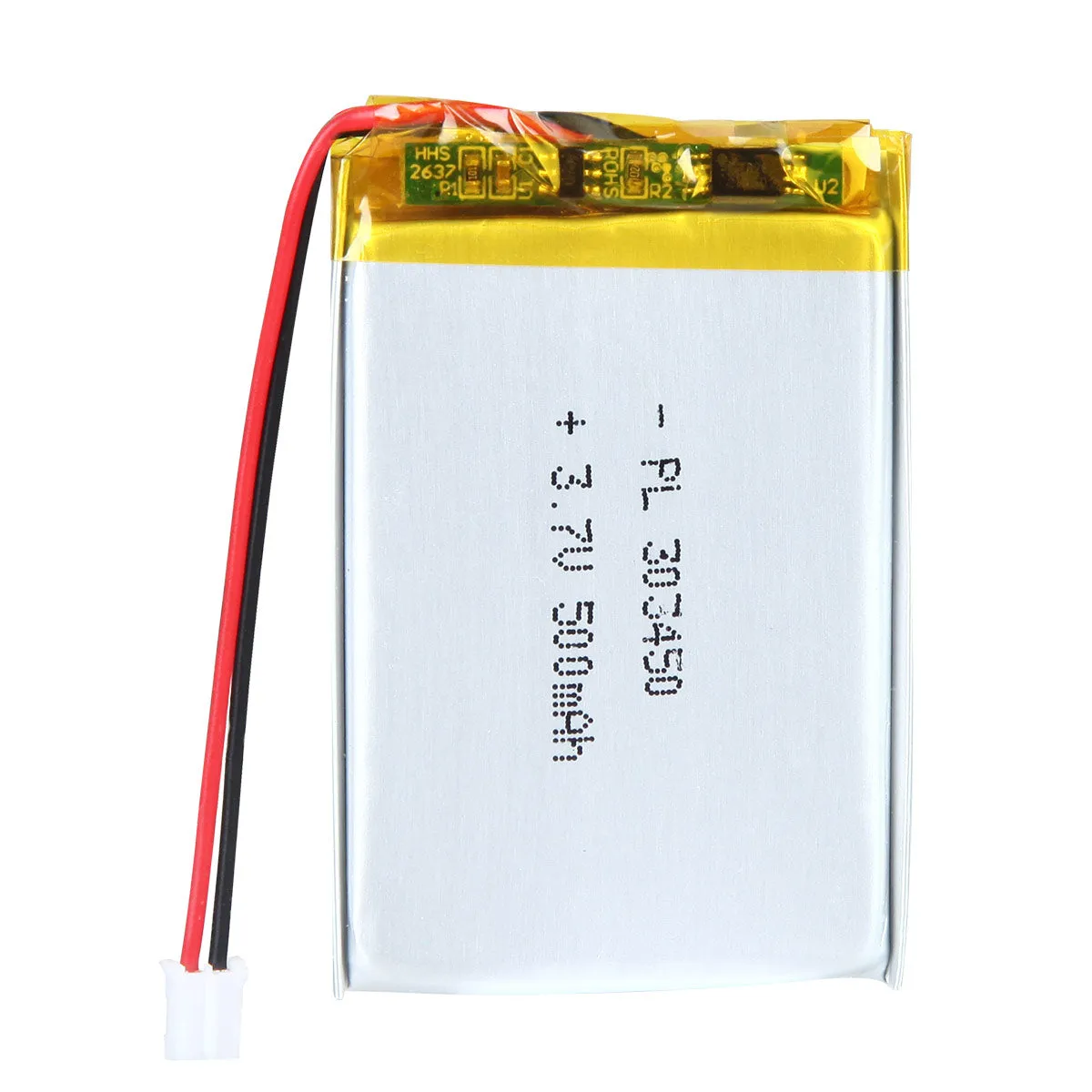

THOR 303450 3.7V 500mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

THOR 303450 3.7V 500mAh LiPo battery dimension drawing showing T×W×L = 3 × 34 × 52 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-303450 provides 500mAh in a broad, 3mm-thin 34 × 50mm bare-cell footprint. THOR-383046 keeps 500mAh in a smaller 30 × 46mm footprint by increasing thickness to 3.8mm. THOR-503035 shortens the footprint to 30 × 35mm but requires 5mm thickness. Choose THOR-303450 when minimum depth matters more than plan area.

The 3 × 34 × 50mm value is the nominal bare-cell envelope. PCM placement, insulation, lead exit, connector and wire routing can increase finished thickness or length. Verify nearby PCB components, ribs and connector clearance before freezing a shallow enclosure.

At 3.7V nominal and 500mAh, THOR-303450 stores 1.85Wh. Actual runtime depends on load profile, regulator efficiency, cutoff voltage, wireless or display duty cycle, temperature and aging. Capacity and a broad cell area do not establish high-rate performance.

THOR-303450 Engineering & Fit Questions

When should I choose THOR-303450 instead of a thicker 500mAh model?

Choose THOR-303450 when the enclosure needs a 3mm nominal cell profile and can accept 34 × 50mm. THOR-383046↗ reduces the footprint to 30 × 46mm at 3.8mm thickness, while THOR-503035↗ shortens it to 30 × 35mm by increasing thickness to 5mm.

What additional clearance is needed beyond 3 × 34 × 50mm?

The exact finished envelope is configuration-dependent. PCM placement, insulation, lead exit, connector body, wire routing, nearby PCB components and enclosure ribs all need clearance beyond the nominal bare cell.

Can 500mAh be used to predict runtime or discharge capability?

No. The rating corresponds to 1.85Wh at 3.7V nominal, but runtime depends on the actual load and system losses. Continuous and peak-current capability must be validated separately with the intended protection and harness.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-303450
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 500mAh Lithium Polymer (LiPo) Battery with Connector | THOR-303450

THOR-303450 is a 3.7V 500mAh LiPo pouch cell with 1.85Wh nominal energy and a broad, very thin 3 × 34 × 50mm bare-cell envelope. It minimizes battery depth by spreading 500mAh across a larger plan area; thicker alternatives use narrower or shorter footprints. Finished-pack thickness and load suitability require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-303450

Mechanical Characteristics

Model	THOR-303450
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	3 × 34 × 50 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 11 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	500 mAh
Energy	1.85 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	100 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	500 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	100 mA (0.2C)
Max. Continuous Discharge	500 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-303450

Slim Tracking & Telemetry Tags — PrimaryThe 3mm profile can suit flat tracking or telemetry tags with sufficient 34 × 50mm plan area. Validate radio bursts, reporting interval, standby drain and protected-pack thickness.

Flat Rechargeable Display ModulesTHOR-303450 may suit slim display or status modules after display duty cycle, processor load, charging and finished-pack clearance are confirmed.

Shallow Control Panels & Portable ControllersThe broad, thin geometry can fit shallow control products when connector placement, wire routing, pulse demand and mechanical support are validated.
