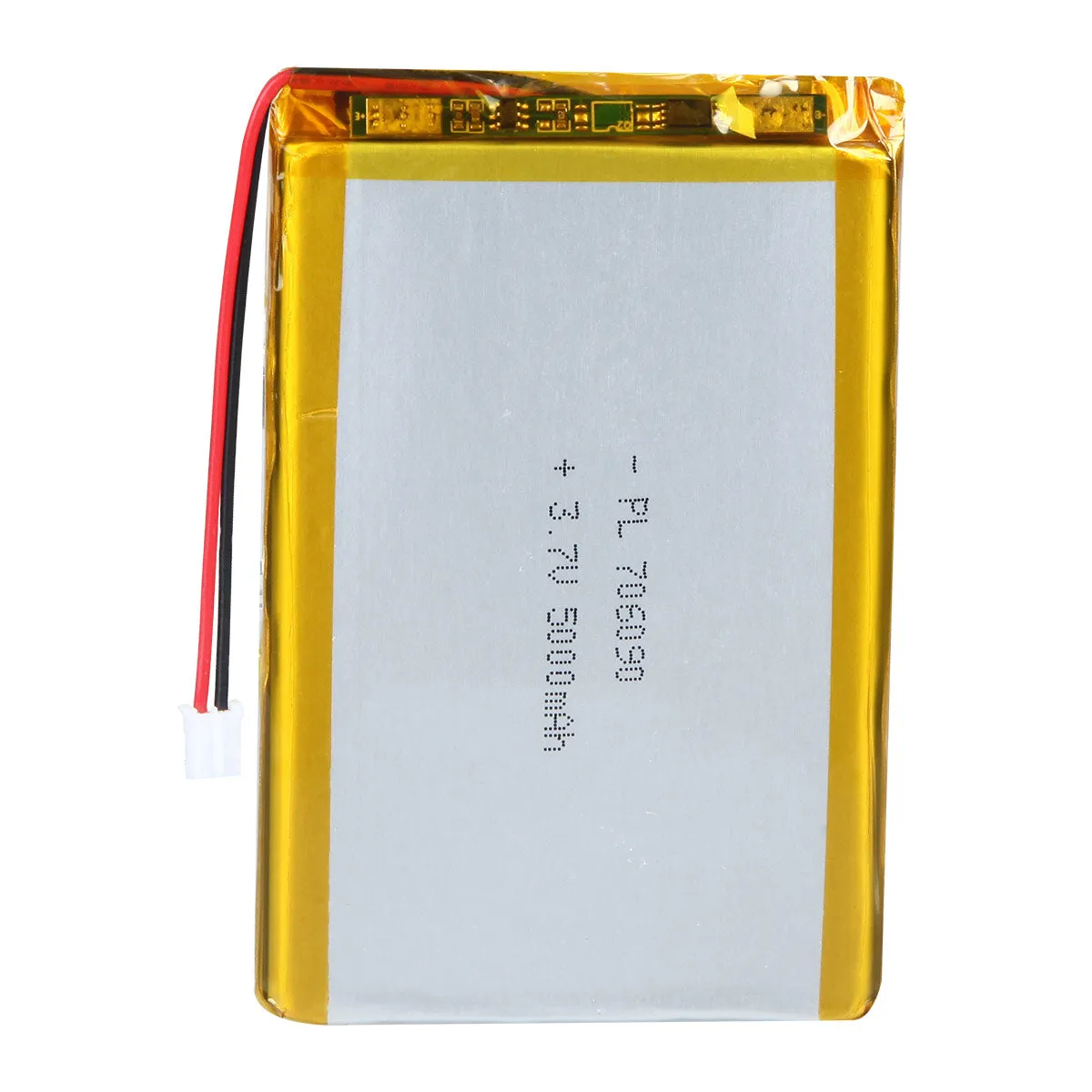

THOR-706090 provides 5000mAh in a 7 × 60 × 90mm bare-cell envelope. THOR-5758102 reduces thickness to 5.7mm at the same capacity but requires 102mm length. THOR-105555 shortens the footprint to 55 × 55mm by increasing nominal thickness to 10mm. Choose THOR-706090 when a 60 × 90mm cavity is available and 7mm depth is the preferred balance.

The 7 × 60 × 90mm value is the nominal bare-cell envelope. PCM, insulation, lead exit, connector position and wire bend radius can increase the final dimensions. A broad high-capacity pouch also requires appropriate mechanical support and thermal review.

At 3.7V nominal and 5000mAh, THOR-706090 stores 18.5Wh. Actual runtime depends on load profile, regulator efficiency, cutoff voltage, duty cycle, charging strategy, temperature and aging. The 5000mAh rating does not establish high-discharge capability; validate continuous and peak current with the final PCM, wire and connector.

• Stable 3.7 V nominal output for reliable power delivery
• Long cycle life — typically several hundred cycles, cost-efficient
• Built-in protection: overcharge, over-discharge, short-circuit
• Custom size, capacity, connector & PCM/BMS
• UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.
