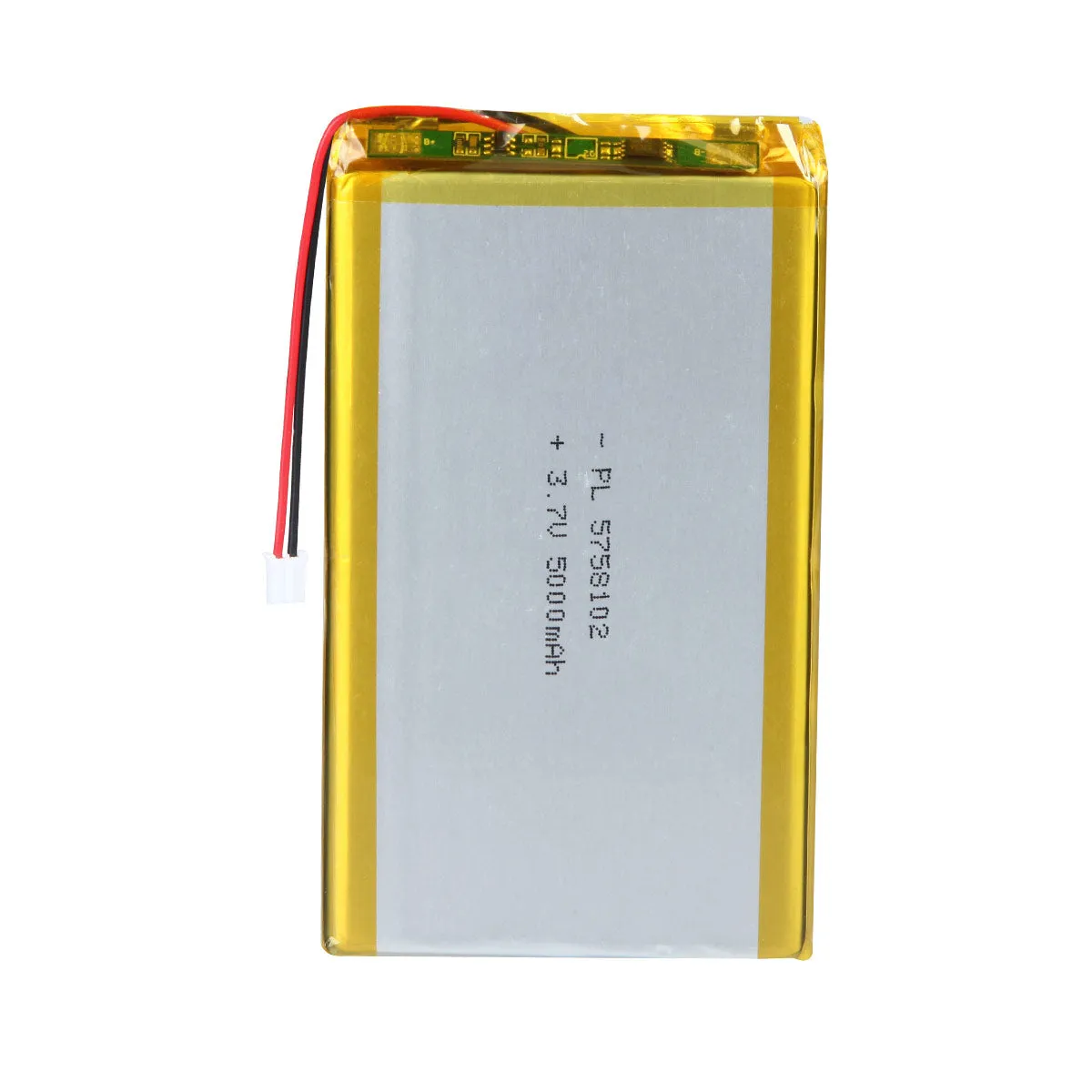

The THOR-5758102 combines 5000mAh with a relatively thin 5.7 × 58 × 102mm bare-cell envelope. The similarly shaped THOR-6060100 carries the same capacity in a 6 × 60 × 100mm format, while THOR-105573 is much shorter at 73mm but substantially thicker at 10mm. THOR-5758102 is therefore the selection for a long battery bay where thickness is more constrained than length.

A confirmed emergency and backup-power project used this 5000mAh cell as the basis of a custom 1S2P pack. Two cells in parallel create a nominal 10000mAh system architecture; that does not change the identity of the individual THOR-5758102 cell, which remains 5000mAh. Cell matching, protection/BMS design, interconnects, wiring and the finished 1S2P pack envelope are project-specific and must be validated as a complete assembly.

One THOR-5758102 cell provides 18.5Wh at 3.7V nominal. Backup duration depends on the protected system’s load profile, conversion losses, cutoff voltage, standby consumption, temperature and cell aging. The 1S2P example is integration evidence, not a universal current or BMS rating for this cell.

• Stable 3.7 V nominal output for reliable power delivery
• Long cycle life — typically several hundred cycles, cost-efficient
• Built-in protection: overcharge, over-discharge, short-circuit
• Custom size, capacity, connector & PCM/BMS
• UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications
