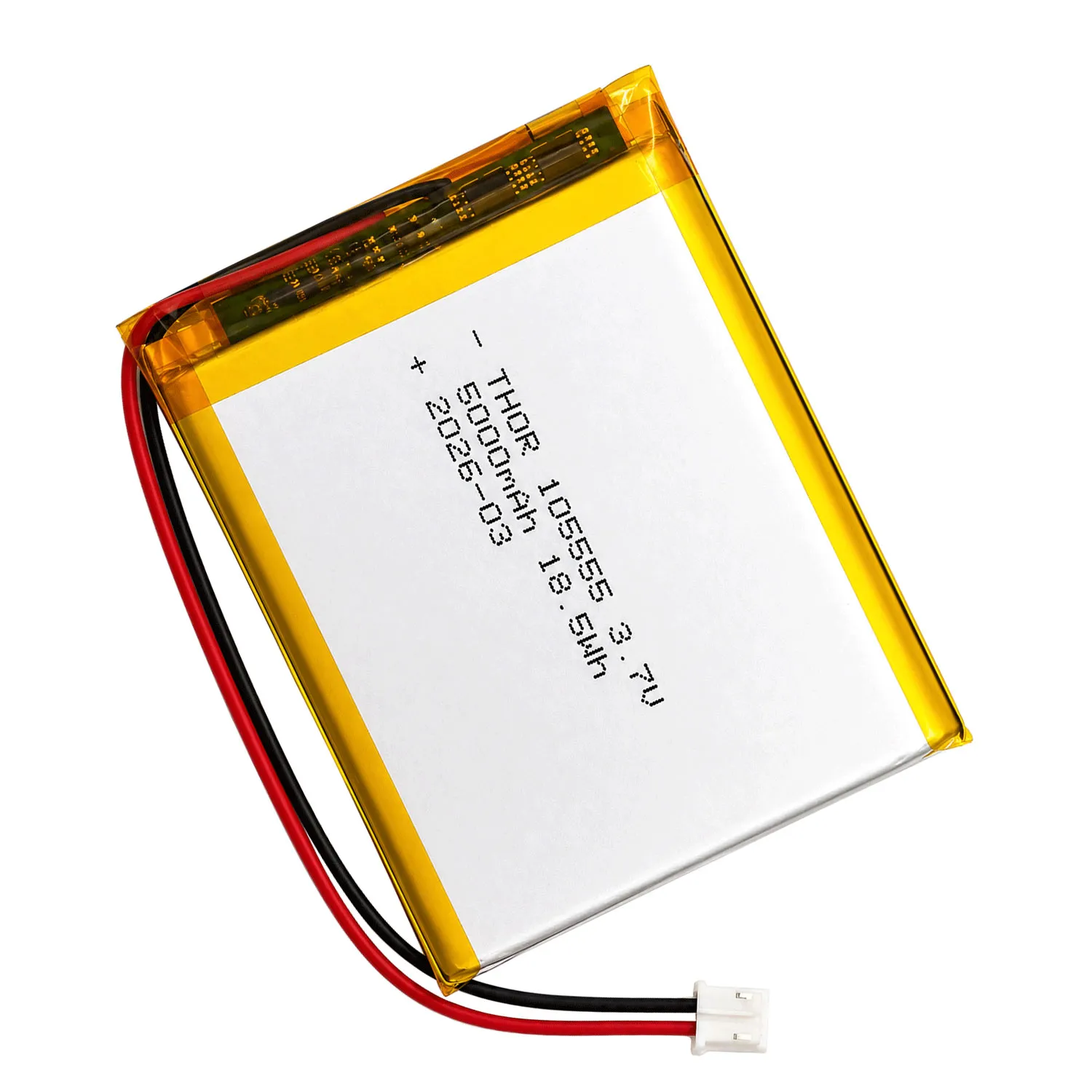

The THOR-105555 is a 3.7V 5000mAh lithium polymer cell with a 10 × 55 × 55mm bare-cell envelope and 18.5Wh nominal energy. Its near-square footprint is shorter than THOR-955565 and 0.5mm thicker, while THOR-115252 uses a smaller 52 × 52mm footprint but increases thickness to 11mm. The best option depends on the enclosure’s actual thickness, width and length limits.

This format is a technical-fit candidate for portable diagnostic equipment, high-capacity handheld instruments and compact backup modules when the protected-pack envelope is validated. The current product configuration indicates that the PCM can add approximately 2mm to cell length; wire exit, connector, insulation, swelling allowance and production tolerances must also be included in the cavity study.

The 5000mAh rating does not establish continuous or pulse-current capability. Expected runtime depends on usable energy, device load profile, conversion losses, temperature and cutoff settings, while the final PCM, NTC, connector, lead length and charging requirements remain project-specific.

• Stable 3.7 V nominal output for reliable power delivery
• Long cycle life — typically several hundred cycles, cost-efficient
• Built-in protection: overcharge, over-discharge, short-circuit
• Custom size, capacity, connector & PCM/BMS
• UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications
