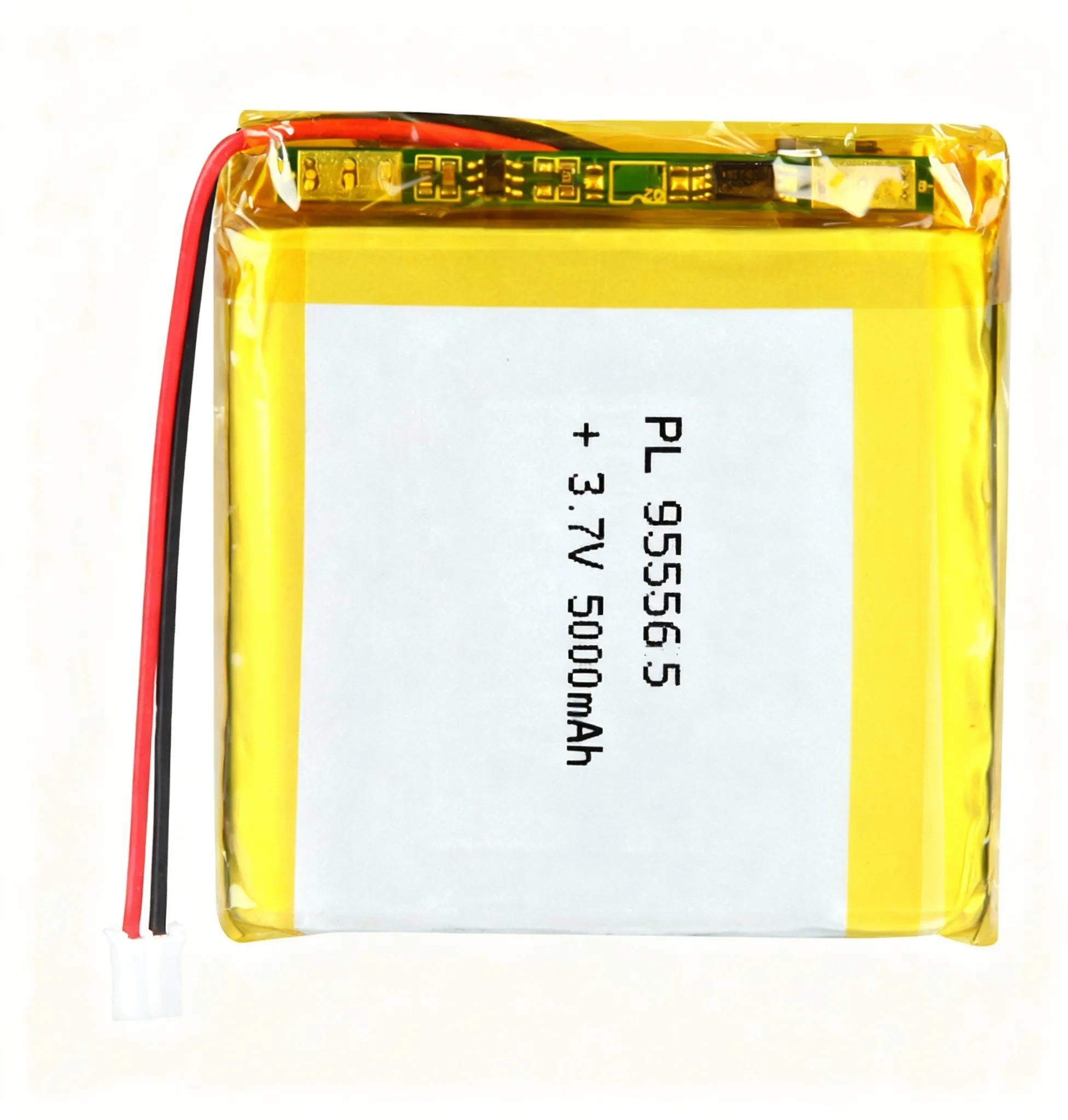

THOR 955565 3.7V 5000mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

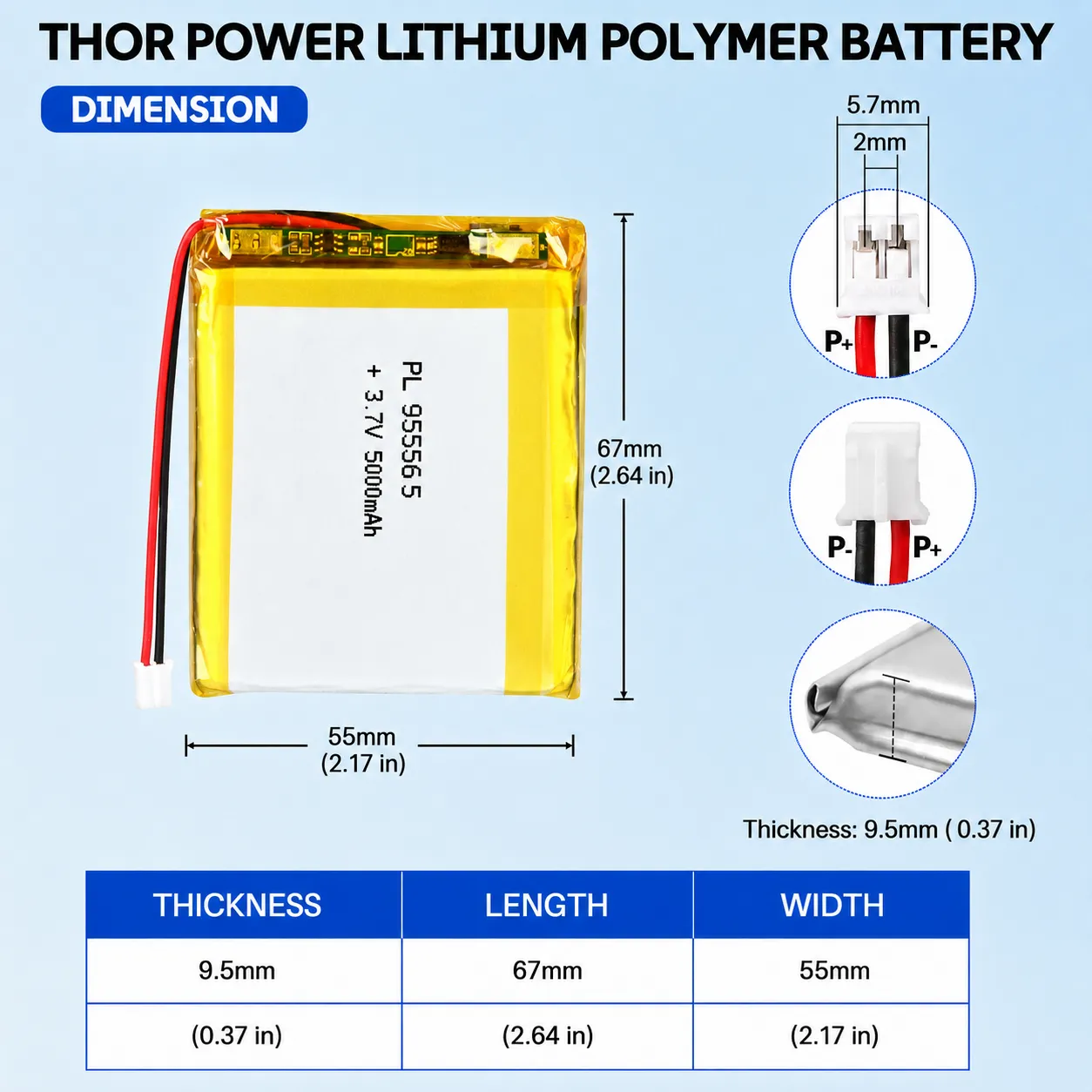

THOR 955565 3.7V 5000mAh LiPo battery dimension drawing showing T×W×L = 9.5 × 55 × 67 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

The THOR-955565 is a 3.7V 5000mAh lithium polymer cell with a 9.5 × 55 × 65mm bare-cell envelope and 18.5Wh nominal energy. It is 0.5mm thinner than THOR-105565 at the same 55 × 65mm footprint, while THOR-105555 shortens the cell to 55mm at 10mm thickness. Choose by the real three-axis cavity rather than capacity alone.

The relatively thin 5000mAh format is a technical-fit candidate for portable diagnostic devices, slim backup-power modules and field data terminals after the complete protected-pack envelope is verified. The current configuration indicates approximately 2mm additional length with the PCM; connector, lead exit, insulation, swelling allowance and tolerances remain part of the mechanical review.

The 18.5Wh nominal-energy value supports early runtime estimation, but usable runtime depends on the load profile, conversion efficiency, temperature and cutoff settings. Capacity does not define current capability, so continuous load, pulse demand, charging and protection requirements must be validated for the released configuration.

THOR-955565 Engineering & Fit Questions

How does THOR-955565 compare with THOR-105565?

THOR-105565↗ uses the same 55 x 65mm footprint and 5000mAh rating but is 10mm thick. THOR-955565 is 9.5mm thick.

Is THOR-955565 shorter than THOR-105555?

No. THOR-105555↗ is 10mm shorter but 0.5mm thicker.

Are the PCM and connector included in 9.5 x 55 x 65mm?

No. Those are bare-cell dimensions. Allow for protection, wires, connector, insulation, expansion and tolerances.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-955565
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	5000 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 5000mAh Lithium Polymer (LiPo) Battery with Connector | THOR-955565

The THOR-955565 packs 5000mAh into a dense 9.5×55×65mm form factor with 544.7Wh/L volumetric energy density. This near-square lithium polymer cell serves robotic controller and warehouse AGV system demanding sustained high-capacity power. For a ultra-thin alternative at 5000mAh, see THOR-105555.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-955565

Mechanical Characteristics

Model	THOR-955565
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	9.5 × 55 × 65 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 71 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	5000 mAh
Energy	18.5 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	1.0 A (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	5.0 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	1.0 A (0.2C)
Max. Continuous Discharge	5.0 A (1C), model-specific
Internal Resistance	≤ 30 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-955565

Portable Diagnostic DevicesPrimary technical-fit use for a relatively thin 5000mAh format after the protected-pack envelope and duty cycle are checked.

Slim Backup-Power ModulesFor backup assemblies that can accept the 55 x 65mm footprint while benefiting from 9.5mm bare-cell thickness.

Field Data TerminalsFor connected terminals after radio pulses, average load, charging, connector, thermal limits and cutoff settings are validated.
