3.7V 900mAh LiPo Batteries — Compare Sizes for Your Device
Fit 900mAh into a compact enclosure while balancing finished-pack size, runtime and the display-and-sensor load your device needs.
A 900mAh capacity target does not define one battery shape. Thin, wide and narrow pouch formats create different options for compact consumer and wellness devices such as e-ink readers and small home monitors. Use verified model data and estimated finished dimensions to shortlist candidates, then confirm the complete pack envelope and electrical requirements with an engineer.
Bare & Estimated Finished Sizes
Custom PCM & Connector Options
Engineering Fit Review
Technical Overview
A 900mAh LiPo battery gives compact consumer and wellness devices near-1Ah runtime without moving to a larger pack. At 900mAh, geometry can matter as much as nominal capacity: the same rating can be built in very different LiPo battery dimensions and aspect-ratio combinations. In devices such as an e-ink reader or a compact home monitor, the load is usually a low steady draw with display refresh and occasional wireless events, so finished-pack thickness and footprint often matter more than peak current. Select by the finished-pack envelope and actual load profile, not by capacity alone.
Find a 900mAh LiPo Battery for Your Available Space
Enter your device's maximum battery-space dimensions to narrow the 900mAh list. Results are potential matches based on estimated finished dimensions; PCM, insulation, wiring, connector position and mechanical clearance still require engineering confirmation.
14 listed 900mAh models
Finished dimensions depend on PCM, insulation, connector and wire-harness configuration and are confirmed on the engineering drawing for the selected model.
Fit 900mAh into a Compact Consumer or Wellness Device
Geometry varies substantially within this capacity. The listed THOR-255065 uses a nominal 2.5 × 50 × 65mm bare-cell envelope, while THOR-701688 is a narrower 7 × 16 × 88mm format. Select the proportion that works with the device layout instead of treating capacity as a dimensional specification.
The best 900mAh candidate leaves room for the entire assembly and supports the actual load profile, not merely the nominal energy target.
Same 900mAh capacity, very different geometry. The listed models below all store 900mAh, yet each one asks for completely different space inside a device:
THOR-255065
2.5 × 50 × 65 mm — the thinnest listed 900mAh cell. Thin and wide; suits a flat reader or monitor with surface area to spare.
THOR-701688
7 × 16 × 88 mm — a narrow, elongated strip. Suits a slim handle or edge channel where width is the hard limit.

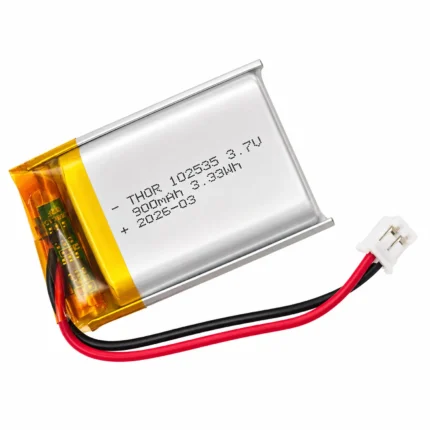

THOR-102535
10 × 25 × 35 mm — thick with the smallest footprint. Trades thickness for a compact block that fits a small cavity.
All three store 900mAh, yet each needs different space. If thickness is the limit, start from the thin, wide models; if the device is a narrow strip or a small block, a thicker cell can shrink the footprint. The geometry, not the capacity, decides the fit.
When 900mAh is close to the packaging limit, compare adjacent 800mAh and 1000mAh options to see whether a different capacity band offers a better geometry.
Validate 900mAh Current Capability for Compact Portable Loads
The 900mAh rating describes charge capacity, not maximum continuous or peak current. In a compact wellness or sensing device such as an e-ink reader, compact home monitor or spot-check portable pulse oximeter, most operating time is a low steady draw, with brief peaks from display refresh, sensor sampling or a short wireless transmission. Whether the cell sustains those peaks depends on the specific cell model, C-rate, internal resistance, PCM and temperature. Use the battery runtime and capacity guide for energy planning, then validate loaded voltage and low-state behavior with the actual electronics. A custom LiPo battery configuration should be reviewed when the standard assembly does not satisfy these constraints, and any health-related device still requires project-specific validation.
Bare Cell Size vs Finished Battery Size
The model dimensions describe the bare 900mAh cell. A production-ready battery adds components whose position can change the final thickness or length, so the mechanical envelope must be checked at pack level.
For a compact flat device, footprint, finished thickness and connector position can matter more than the small nominal-capacity difference between adjacent classes, especially inside a thin enclosure.
Bare Cell Size
Raw pouch-cell dimensions
(T × W × L)
→
+ PCM, Insulation, Wires, Connector
Protection circuitry, insulation wrap, lead wires, connector & wire exit
→
Estimated Finished Size
Approximate assembled dimensions for initial screening
Confirm the finished battery drawing and tolerance stack before committing the device enclosure or internal retention features.
How to Choose a 900mAh LiPo Battery
Measure the Space
Record the maximum battery cavity: thickness × width × length.
Allow Clearance
Allow for manufacturing tolerance, insulation, assembly and long-term cell expansion.
Confirm the Load
Provide continuous and peak current requirements. Capacity alone does not define current capability.
Define the Assembly
Confirm PCM, connector, polarity, wire length, wire exit direction and labeling.
Verify With Samples
Confirm the final drawing, finished dimensions and sample fit before volume production.
Custom 900mAh LiPo Battery Configuration
For 900mAh projects, THOR Power can review alternative pouch geometry, protection, leads, connector orientation, polarity and packaging. The final configuration is released only after mechanical and electrical requirements are confirmed.
Connector
Wire Length
Polarity
Wire Exit Direction
Label
Need a 900mAh LiPo Battery for Your Project?
Tell us your available battery space, application, working current, peak current, connector requirement and quantity. Our engineering team will review the suitable 900mAh model and finished battery configuration.
- Bare Cell Size
- —
- Approx. Finished Size
- —
Your information is used only to review and respond to your battery project request. Privacy Policy.
900mAh LiPo Battery FAQ
What size is a 900mAh LiPo battery?
A 900mAh LiPo battery has no universal size. The listed portfolio includes thin, wide and narrow formats, each with its own nominal bare-cell dimensions and estimated finished envelope.
Is bare-cell size the same as finished battery size?
Bare-cell size does not include the complete protection and interconnect assembly. PCM location, insulation, lead routing and connector body can all affect the finished dimensions.
What current can a 900mAh battery deliver?
Required current must be checked against the exact 900mAh cell and PCM. Provide continuous load, peak load and pulse duration rather than assuming a C-rate from capacity alone.
Can a 900mAh LiPo battery be made thinner?
Sometimes a different 900mAh shape reduces the critical axis while increasing another. A custom design may also be reviewed, but size, capacity and manufacturing feasibility must be validated together.
Should I choose 800mAh or 1000mAh instead of 900mAh?
An 800mAh cell can give a thinner or smaller footprint when mechanical fit matters more than runtime. A 1000mAh cell adds nominal energy if the flat enclosure has area to spare. Compare finished-pack dimensions side by side, because the capacity difference alone does not predict the better fit.
Is a 900mAh LiPo suitable for an e-ink reader or compact home monitor?
It can be considered when the finished-pack envelope fits the flat enclosure and the selected cell supports the low steady draw plus display-refresh and occasional wireless peaks. Confirm PCM behavior, connector routing, charging strategy and temperature range with the actual device electronics.
What should I check for a compact wellness or spot-check sensing device?
For a compact wellness device such as a portable pulse oximeter used for spot-check readings, verify that the cell and PCM handle brief sensor and display peaks without excessive voltage sag, and confirm charging, temperature range and any project-specific validation with the actual electronics. Capacity alone does not qualify a battery for a health-related device.
