Description

THOR-503040 is the 600mAh, 5mm-thick option in the 30 × 40mm footprint family. THOR-603040 increases thickness to 6mm and capacity to 800mAh, while THOR-803040 reaches 1000mAh at 8mm. THOR-703040 provides the 7mm, 900mAh intermediate step. Choose THOR-503040 when minimum depth matters more than maximum capacity within the fixed footprint.

The 5 × 30 × 40mm value is the nominal bare-cell envelope. PCM placement, insulation, connector body, lead exit and wire bend radius can increase the protected-pack dimensions. Confirm the production-intent drawing, polarity and sample fit before enclosure approval.

At 3.7V nominal and 600mAh, THOR-503040 stores 2.22Wh. Runtime depends on the real load profile, regulator efficiency, cutoff voltage, duty cycle, temperature and aging. Capacity and geometry do not confirm pulse or continuous-current performance.

THOR-503040 Engineering & Fit Questions

How does THOR-503040 fit into the 30 × 40mm thickness and capacity ladder?

THOR-503040 is the 5mm, 600mAh step. THOR-603040↗ provides 800mAh at 6mm, THOR-703040 provides 900mAh at 7mm, and THOR-803040↗ provides 1000mAh at 8mm. Capacity should not be assumed to scale linearly with thickness.

Are 5 × 30 × 40mm the finished THOR-503040 dimensions?

No. They are nominal bare-cell dimensions. PCM placement, insulation, connector body, lead exit and wire routing can increase the finished envelope, so confirm the production-intent assembly before enclosure release.

Does 600mAh confirm runtime or pulse-load capability?

No. The rating corresponds to 2.22Wh at 3.7V nominal, but runtime depends on the real load profile, conversion efficiency, cutoff voltage, duty cycle, temperature and aging. Continuous and peak-current capability require separate validation.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-503040
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	600 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 600mAh Lithium Polymer (LiPo) Battery with Connector | THOR-503040

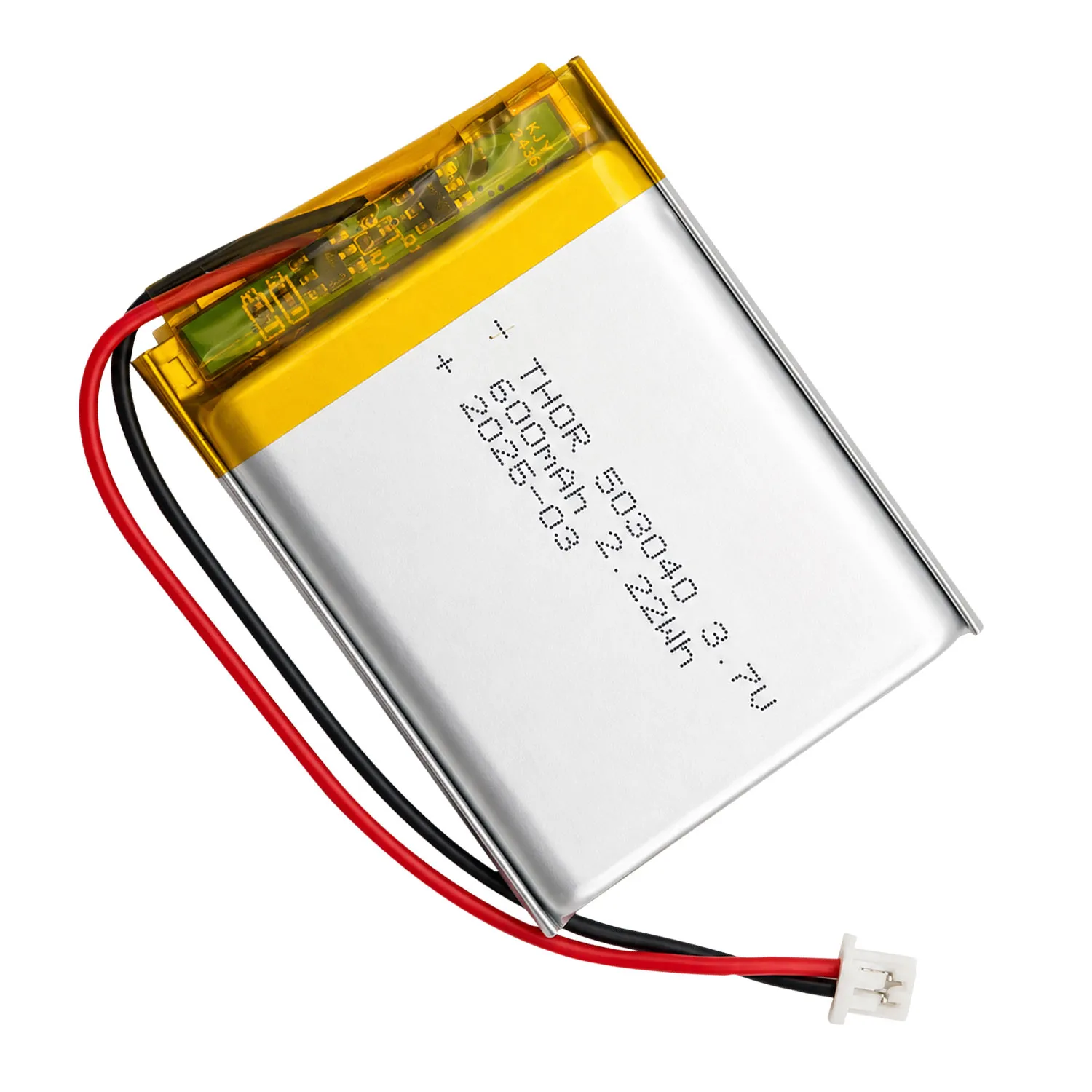

THOR-503040 is a 3.7V 600mAh LiPo pouch cell with 2.22Wh nominal energy and a 5 × 30 × 40mm bare-cell envelope. It is the lowest-thickness verified option in the THOR 30 × 40mm footprint ladder, prioritizing shallow depth over the higher capacities available at 6–8mm. Final pack and load requirements must be validated.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

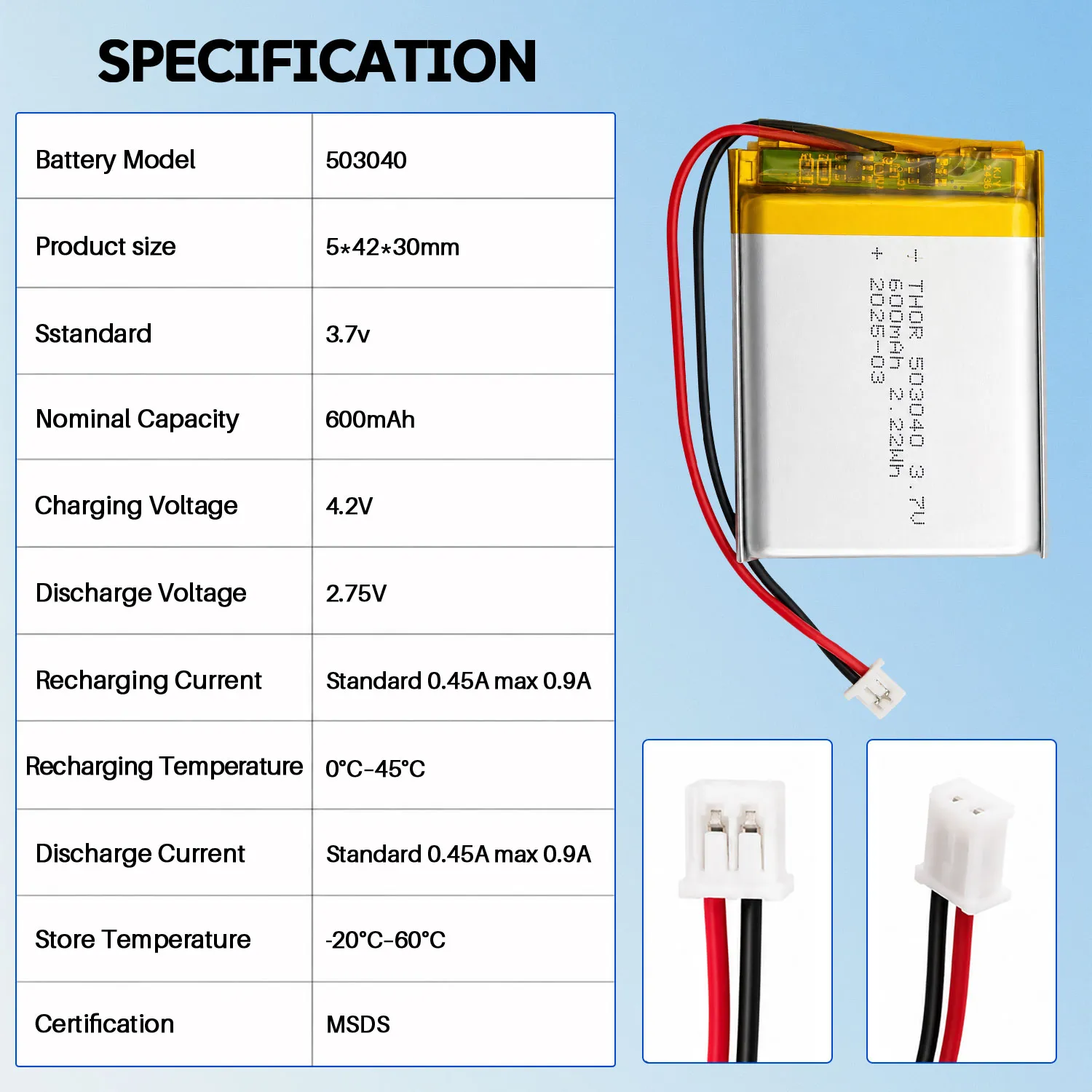

Battery Specification — THOR-503040

Mechanical Characteristics

Model	THOR-503040
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)

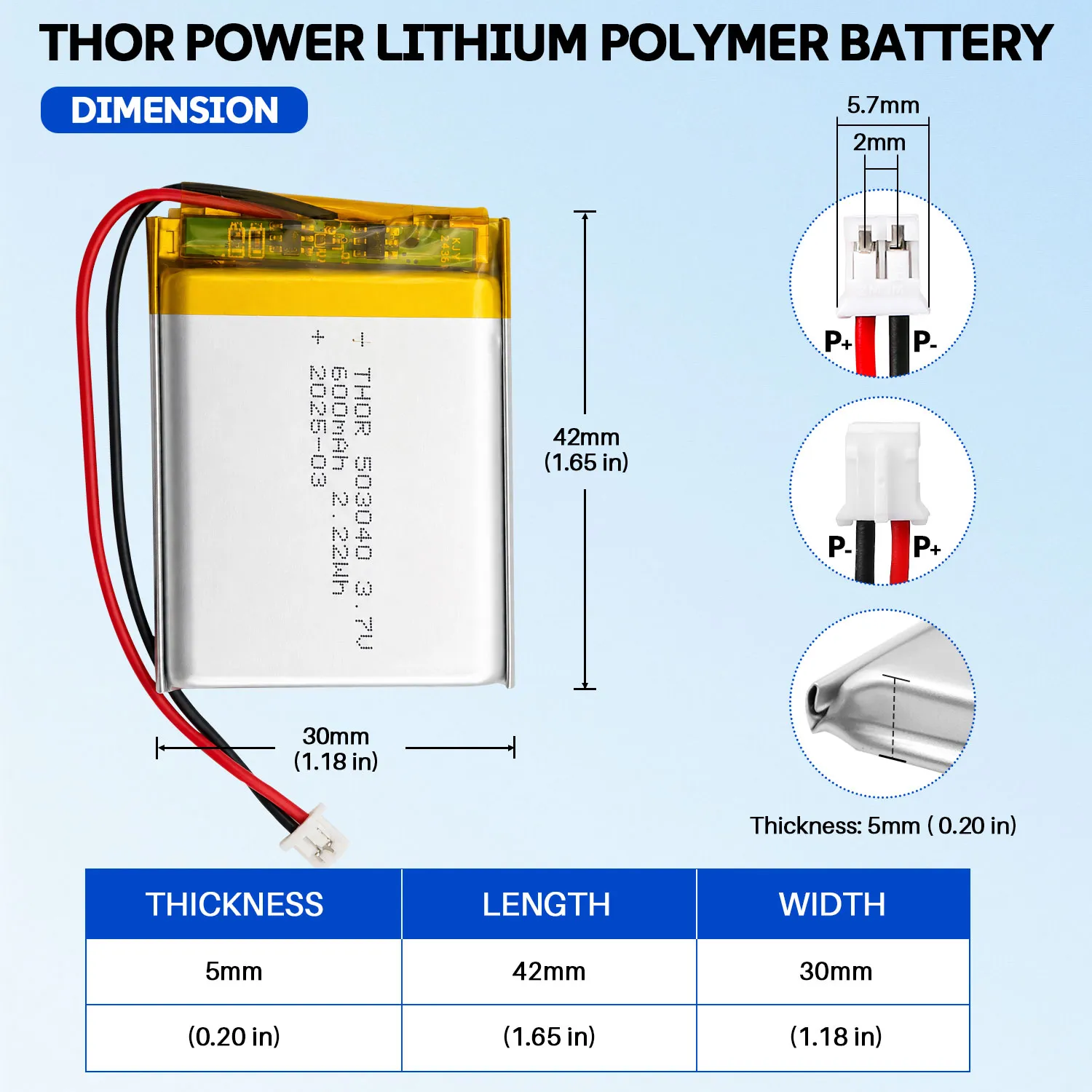

Dimensions (T×W×L)	5 × 30 × 40 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 13 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	600 mAh
Energy	2.22 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	120 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	600 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	120 mA (0.2C)
Max. Continuous Discharge	600 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-503040

Thin Handheld Instruments — PrimaryThe 5mm profile and 30 × 40mm footprint can suit compact instruments designed around a shallow battery bay. Confirm display, sensing, processor and peak-load requirements.

Portable Data Loggers & Sensor ModulesTHOR-503040 may suit rechargeable logging or sensing modules after standby current, sample interval, transmit pulses and the complete pack envelope are validated.

Slim Rechargeable Control ModulesThe near-square plan area can fit compact controller housings where depth is constrained. Validate radio duty cycle, connector position, charging method and sample runtime.
