Description

THOR-404040 provides 700mAh in a thin, near-square 4 × 40 × 40mm bare-cell envelope. THOR-403442 keeps the same 4mm thickness and capacity in a narrower, slightly longer 34 × 42mm footprint. THOR-603035 uses a smaller 30 × 35mm plan area at the same capacity but increases nominal thickness to 6mm. Choose THOR-404040 when minimum depth and a balanced square plan area are more important than minimum width.

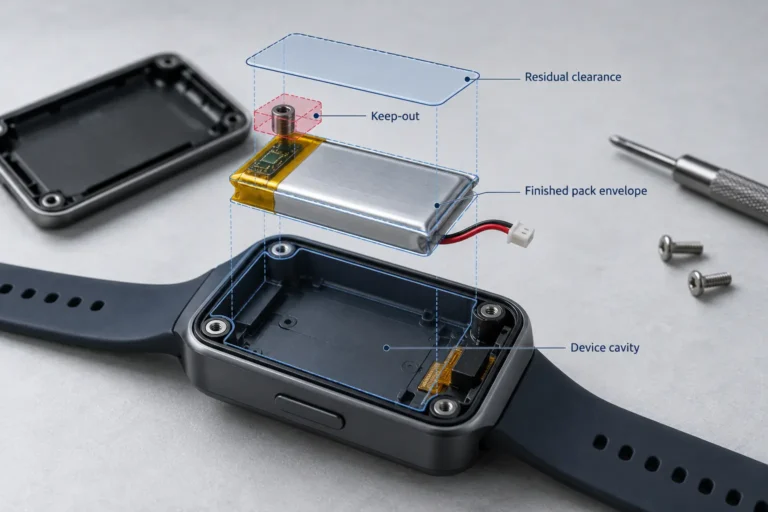

The 4 × 40 × 40mm value is the nominal bare-cell envelope. A typical PCM-equipped assembly is approximately 4 × 40 × 42mm, but the finished battery can require more clearance for PCM placement, insulation, lead exit, connector body and wire routing. Confirm the final drawing and physical samples before tooling.

At 3.7V nominal and 700mAh, THOR-404040 stores 2.59Wh and uses the standard 1S 4.2V full-charge system. Runtime depends on standby and active load, conversion efficiency, cutoff voltage, duty cycle, temperature and aging. Continuous and peak-current suitability should be confirmed against the final cell, PCM, wire, connector and device load profile.

THOR-404040 Engineering & Fit Questions

How does THOR-404040 compare with THOR-403442 and THOR-603035?

THOR-404040 provides 700mAh in a 4 × 40 × 40mm near-square envelope. THOR-403442↗ keeps the same thickness and capacity but is narrower and slightly longer. THOR-603035↗ uses a smaller 30 × 35mm plan area but increases nominal thickness to 6mm.

Are 4 × 40 × 40mm the finished THOR-404040 dimensions?

No. They are nominal bare-cell dimensions. A typical PCM-equipped assembly is approximately 4 × 40 × 42mm, but PCM placement, insulation, connector body, lead exit and wire routing can change the final envelope. Confirm the production-intent assembly before enclosure approval.

What certification and compliance documents are available for THOR-404040?

UN38.3, IEC 62133-2, KC and relevant battery compliance documentation are available for OEM project review. Controlled files are not published for public download. If the PCM, wire, connector or finished-pack configuration changes, documentation applicability should be confirmed for the final configuration.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-404040
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	700 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 700mAh Lithium Polymer (LiPo) Battery with Connector | THOR-404040

THOR-404040 is a 3.7V 700mAh LiPo pouch cell with 2.59Wh nominal energy and a thin, near-square 4 × 40 × 40mm bare-cell envelope. It uses a broad 40 × 40mm footprint to keep nominal depth to 4mm. Typical PCM-equipped length is approximately 42mm. UN38.3, IEC 62133-2, KC and relevant battery compliance documentation are available for OEM project review.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-404040

Mechanical Characteristics

Model	THOR-404040
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	4 × 40 × 40 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 13 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	700 mAh
Energy	2.59 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	140 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	700 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	140 mA (0.2C)
Max. Continuous Discharge	700 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-404040

Thin Square Sensor Hubs & Control Nodes — PrimaryThe 4mm nominal depth and 40 × 40mm footprint can suit shallow square sensor or control enclosures. Confirm radio pulses, sampling duty cycle and the complete protected-pack envelope.

Compact Portable Health & Measurement DisplaysTHOR-404040 may suit compact display or measurement modules with a broad shallow battery bay after sensing, screen, processor and communication loads are validated.

Flat Access & Wireless Interface ModulesThe near-square geometry can fit flat access-control or wireless interface assemblies that cannot accept a thicker, narrower battery. Confirm connector and wire-routing clearance.
