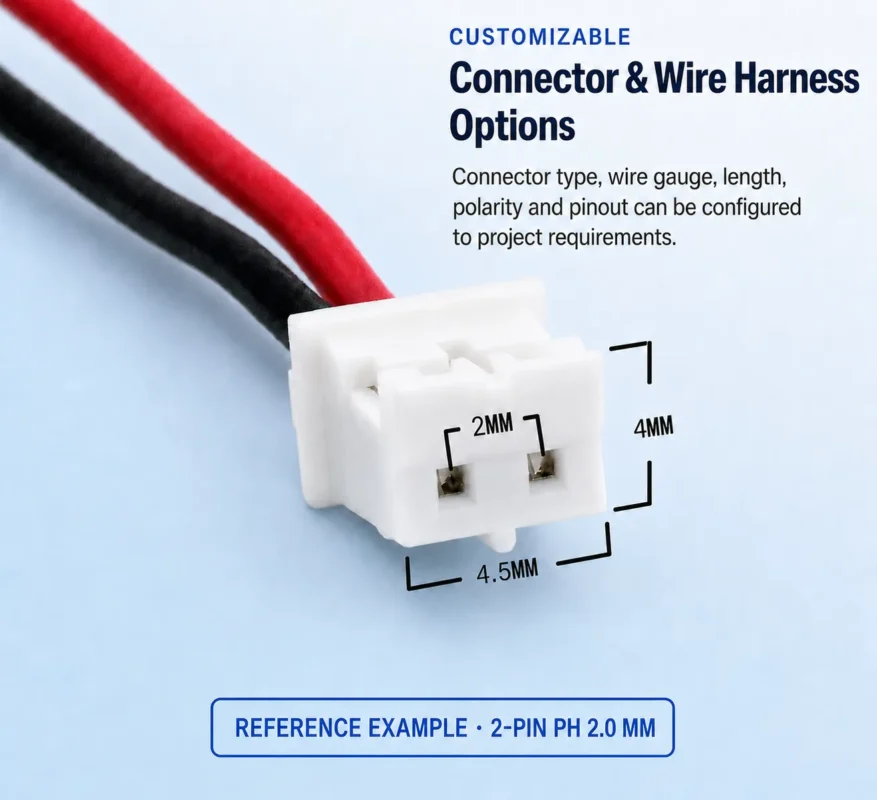

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

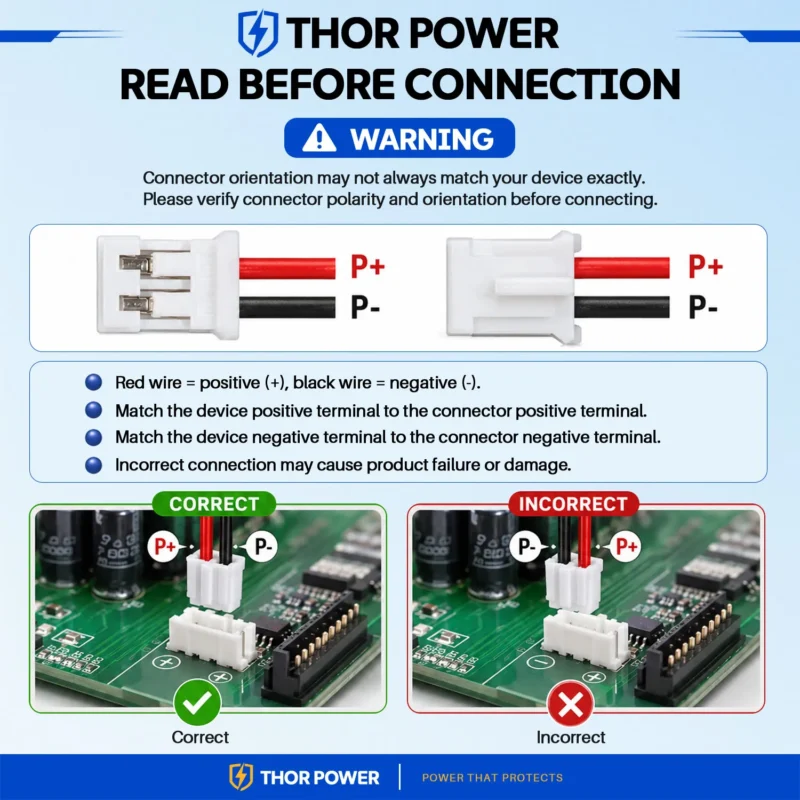

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-103665 concentrates 3000mAh into a 10 × 36 × 65mm bare-cell envelope. THOR-104065 keeps the same 3000mAh capacity, 10mm nominal thickness and 65mm length but increases width from 36mm to 40mm. This makes THOR-103665 the narrower same-capacity choice; it does not establish an electrical performance advantage over THOR-104065.

The 10 × 36 × 65mm value is the nominal bare-cell envelope. A typical PCM-equipped assembly is approximately 10 × 36 × 67mm, but PCM placement, insulation, lead exit, connector body, NTC, wire routing and bend radius can change the final envelope. Confirm the production-intent drawing and sample before enclosure approval.

At 3.7V nominal and 3000mAh, THOR-103665 stores 11.1Wh and uses the standard 1S 4.2V full-charge system. Actual runtime depends on standby and active load, conversion efficiency, cutoff voltage, duty cycle, temperature and aging. Continuous and peak-current suitability should be confirmed against the final cell, PCM, wire, connector and device load profile.

THOR-103665 Engineering & Fit Questions

How does THOR-103665 compare with THOR-104065?

Both models provide 3000mAh at 10mm nominal thickness and 65mm length. THOR-104065↗ is 40mm wide, while THOR-103665 is 36mm wide. Choose by available enclosure width; neither geometry alone establishes an electrical advantage.

Are 10 × 36 × 65mm the finished THOR-103665 dimensions?

No. They are nominal bare-cell dimensions. A typical PCM-equipped assembly is approximately 10 × 36 × 67mm, but PCM, NTC, insulation, connector body, lead exit and wire routing can change the final envelope.

What certification documents are available for THOR-103665?

UN38.3 and IEC 62133-2 documentation are available for OEM project review. Controlled files are not published for public download. If the PCM, wiring, connector or finished-pack configuration changes, documentation applicability should be confirmed for the final configuration.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-103665
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	3000 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 3000mAh Lithium Polymer (LiPo) Battery with Connector | THOR-103665

THOR-103665 is a 3.7V 3000mAh LiPo pouch cell with 11.1Wh nominal energy in a 10 × 36 × 65mm bare-cell envelope. It concentrates 3000mAh into a 36mm-wide, 65mm-long footprint at 10mm nominal depth. Typical PCM-equipped length is approximately 67mm. UN38.3 and IEC 62133-2 documentation are available for OEM project review.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-103665

Mechanical Characteristics

Model	THOR-103665
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	10 × 36 × 65 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 49 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	3000 mAh
Energy	11.1 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	600 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	3.0 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	600 mA (0.2C)
Max. Continuous Discharge	3.0 A (1C), model-specific
Internal Resistance	≤ 45 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-103665

Professional Handheld Communication Terminals — PrimaryThe 36 × 65mm plan area and 11.1Wh nominal energy can suit professional handheld communication hardware that can accommodate 10mm cell depth. Validate radio transmit peaks, standby drain and finished-pack integration.

Portable Diagnostic & Measurement InstrumentsTHOR-103665 may suit compact diagnostic or measurement equipment where a narrower 36mm battery bay is valuable. Confirm sensing, display, processing and communication loads.

Rugged Mobile Data-Collection ModulesThe compact high-capacity geometry can suit mobile data terminals after processor, display, scanner or radio duty cycles, connector position and wire routing are validated.
