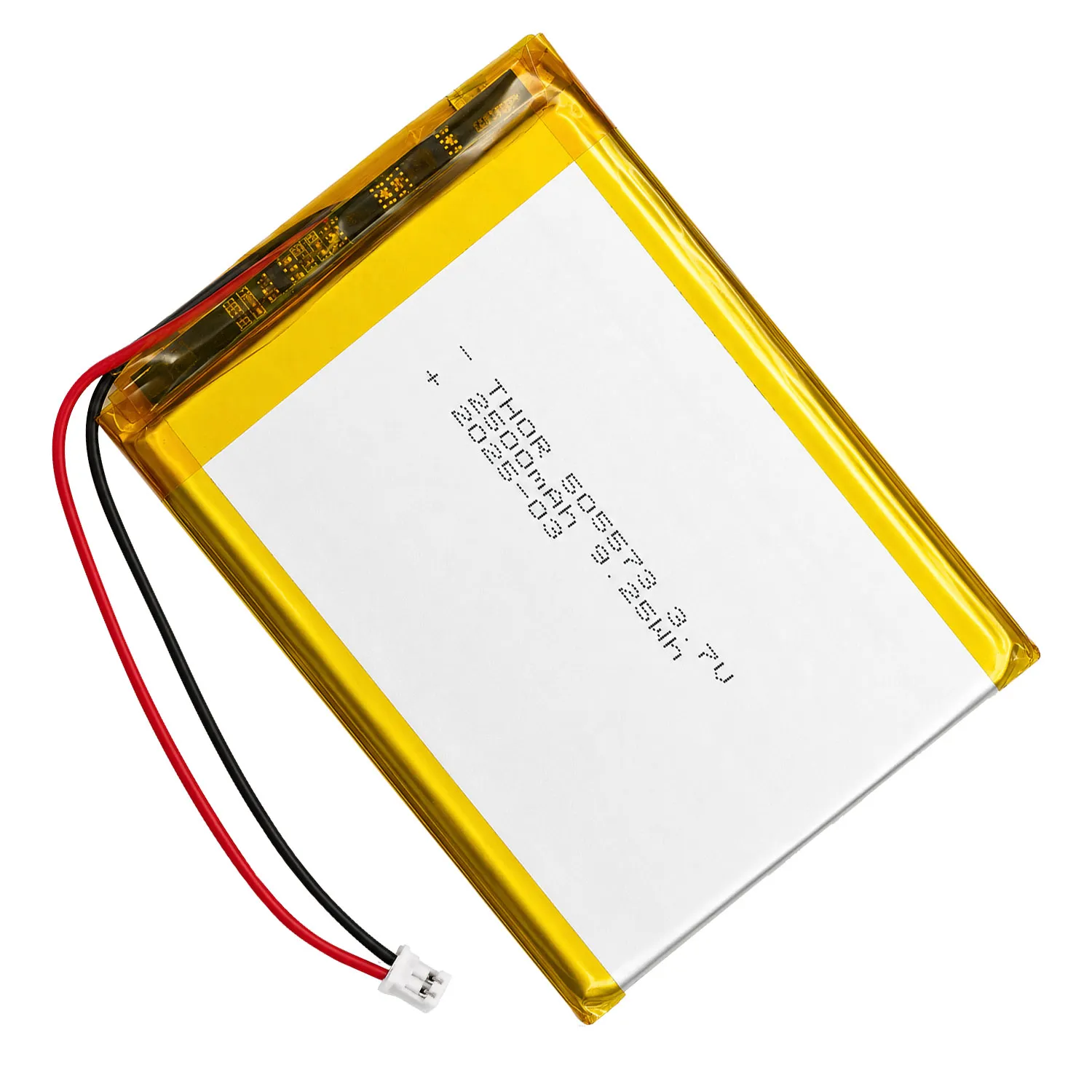

THOR 505573 3.7V 2500mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

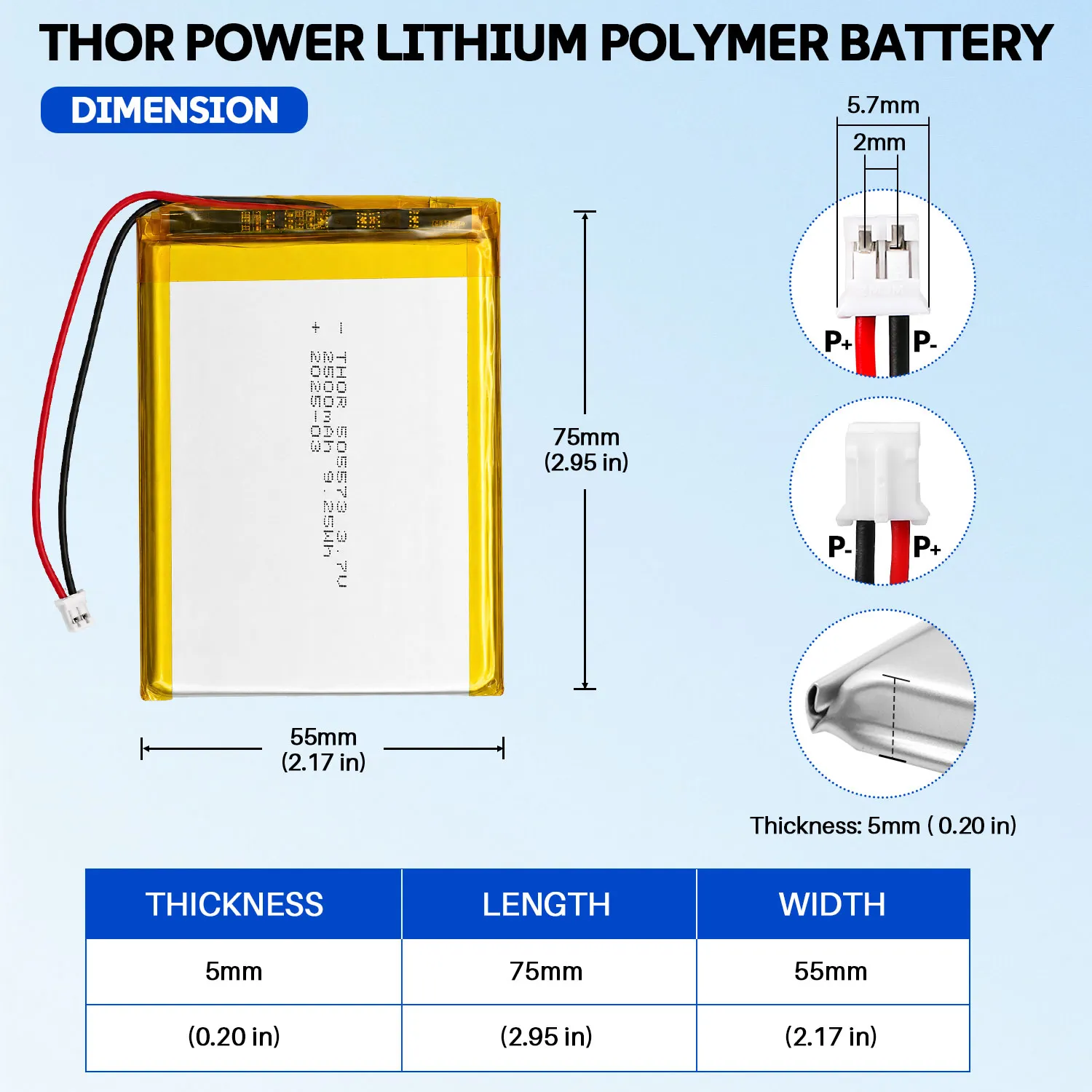

THOR 505573 3.7V 2500mAh LiPo battery dimension drawing showing T×W×L = 5.0 × 55 × 75 mm (with PCM) and 2-pin connector polarity

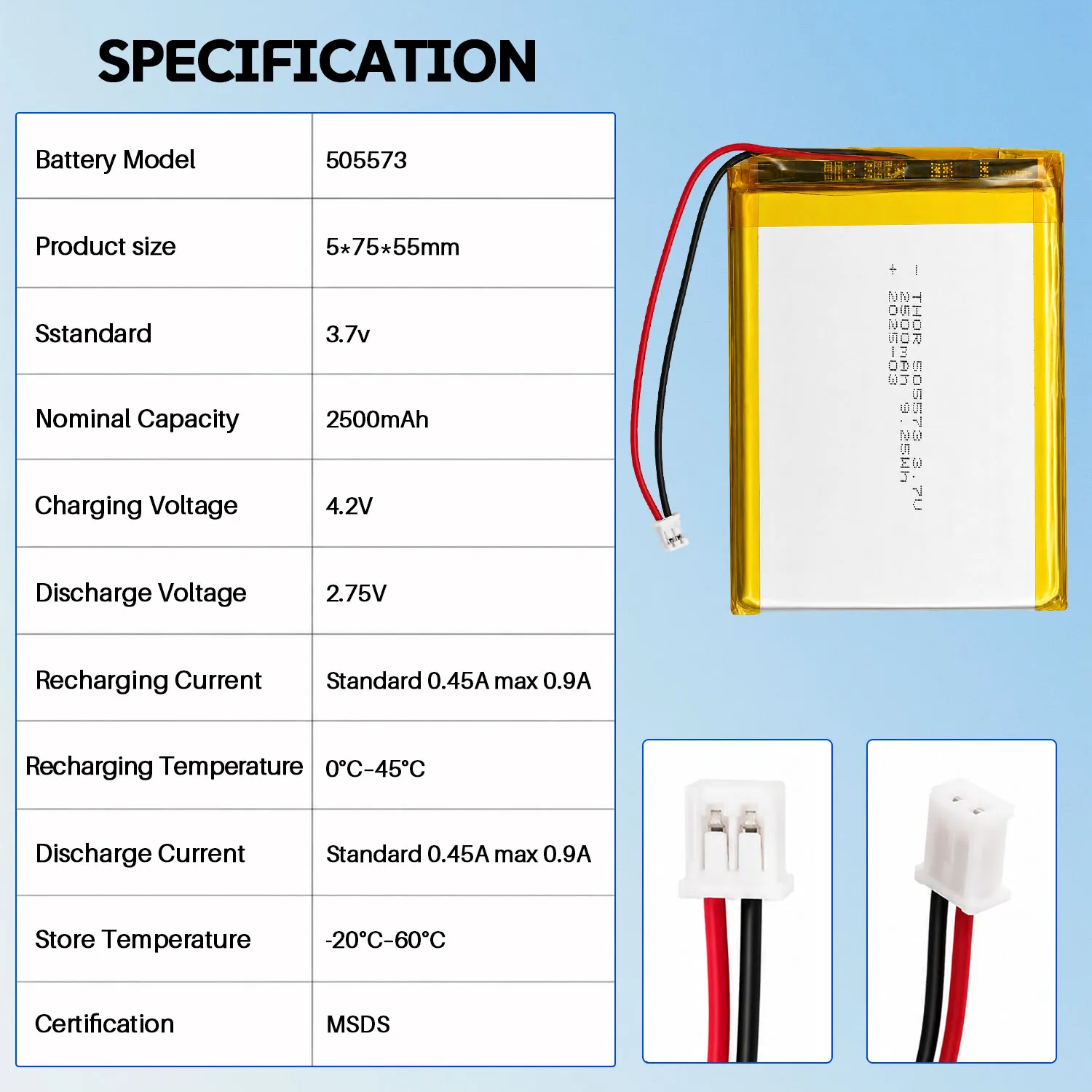

THOR 505573 3.7V 2500mAh lithium polymer battery specifications with dimensions and connector details

THOR 505573 LiPo battery application scenarios for tablets, portable medical devices, power banks, and industrial handhelds

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-505573 provides 2500mAh in a thin, broad 5 × 55 × 73mm bare-cell envelope. THOR-385677 reduces thickness to 3.8mm at the same capacity but requires a slightly larger 56 × 77mm footprint. THOR-724957 shortens the footprint to 49 × 57mm by increasing nominal thickness to 7.2mm. Choose THOR-505573 when a shallow 5mm profile matters more than minimum plan area.

The 5 × 55 × 73mm value is the nominal bare-cell envelope. PCM, insulation, lead exit, connector position and wire bend radius can increase the final dimensions. Confirm the production-intent assembly and mechanical support before releasing a broad, shallow enclosure.

At 3.7V nominal and 2500mAh, THOR-505573 stores 9.25Wh. Actual runtime depends on load profile, conversion efficiency, cutoff voltage, display or wireless duty cycle, temperature and aging. Do not infer high-current capability from capacity or cell area.

THOR-505573 Engineering & Fit Questions

When should I choose THOR-505573 instead of a thinner or shorter 2500mAh model?

Choose THOR-505573 when a 5mm profile is required and the enclosure can accept 55 × 73mm. THOR-385677↗ is thinner at 3.8mm but slightly broader and longer, while THOR-724957↗ is shorter and narrower but increases thickness to 7.2mm.

Are 5 × 55 × 73mm the finished THOR-505573 dimensions?

No. Those are nominal bare-cell dimensions. PCM placement, insulation, connector, lead exit and wire routing can enlarge the finished pack, and the broad cell also needs appropriate mechanical support.

Does 2500mAh confirm suitability for motor or other high-load devices?

No. Capacity corresponds to 9.25Wh nominal energy but does not establish current capability. Validate continuous and peak load, voltage sag, PCM, wire, connector and thermal conditions with the intended system.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-505573
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	2500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 2500mAh Lithium Polymer (LiPo) Battery with Connector | THOR-505573

THOR-505573 is a 3.7V 2500mAh LiPo pouch cell with 9.25Wh nominal energy and a thin 5 × 55 × 73mm bare-cell envelope. Its broad footprint preserves a 5mm profile for shallow portable products; narrower alternatives require greater thickness or length. Final protected-pack fit and current capability require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-505573

Mechanical Characteristics

Model	THOR-505573
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	5 × 55 × 73 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 42 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	2500 mAh
Energy	9.25 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	500 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	2.5 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	500 mA (0.2C)
Max. Continuous Discharge	2.5 A (1C), model-specific
Internal Resistance	≤ 45 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-505573

Slim Portable Display & HMI Modules — PrimaryThe 5mm profile and broad footprint can suit portable display or HMI products built around a shallow rear battery cavity. Confirm display, processor, communications and finished-pack requirements.

Portable Diagnostic & Measurement InstrumentsTHOR-505573 may support portable diagnostic or measurement equipment when the enclosure provides sufficient plan area. Validate sensing, display, peak load and mechanical support.

Flat Portable Audio & Control ElectronicsThe 9.25Wh nominal energy can suit flat audio or control products after amplifier or radio peaks, thermal behavior, charging and connector layout are confirmed.
