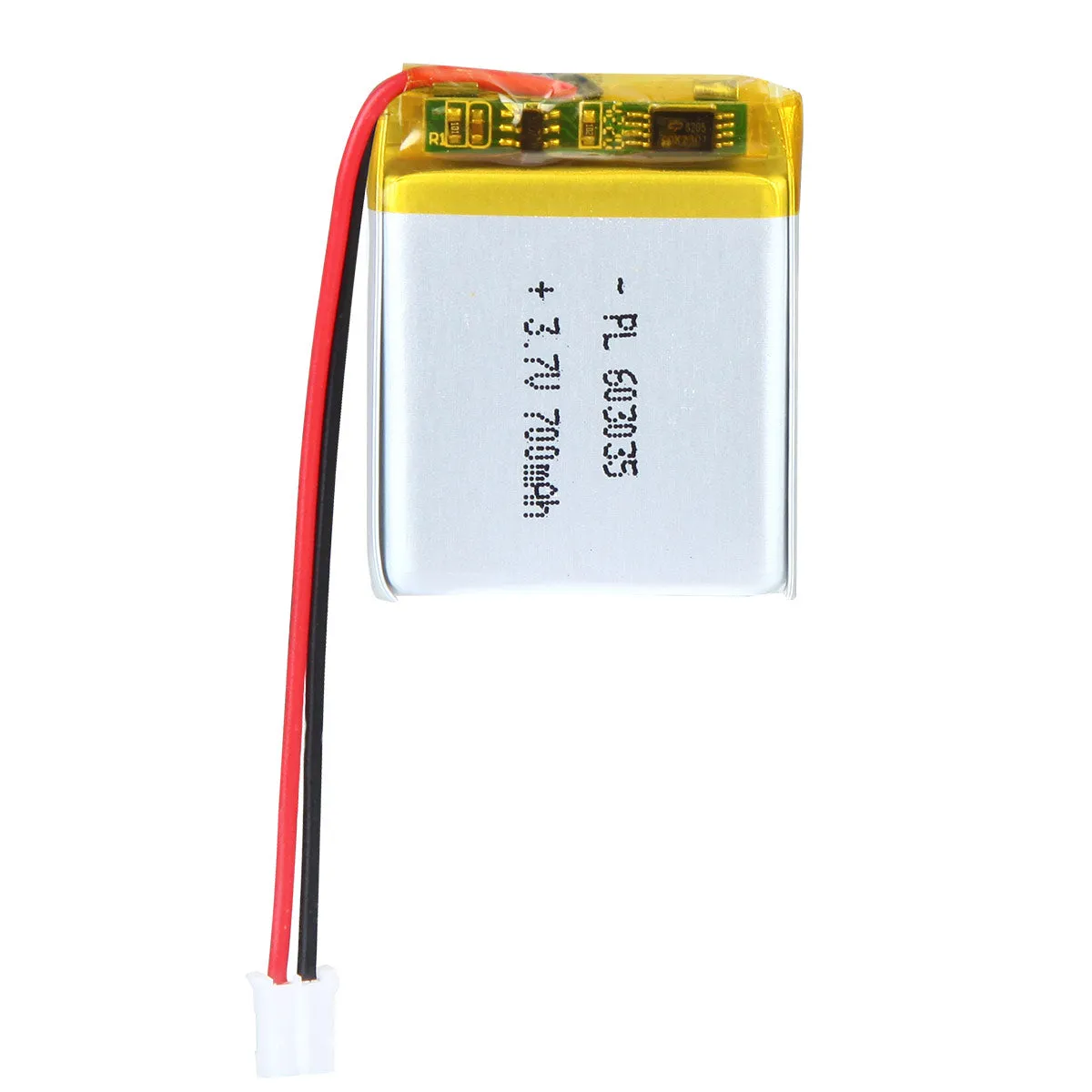

THOR 603035 3.7V 700mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

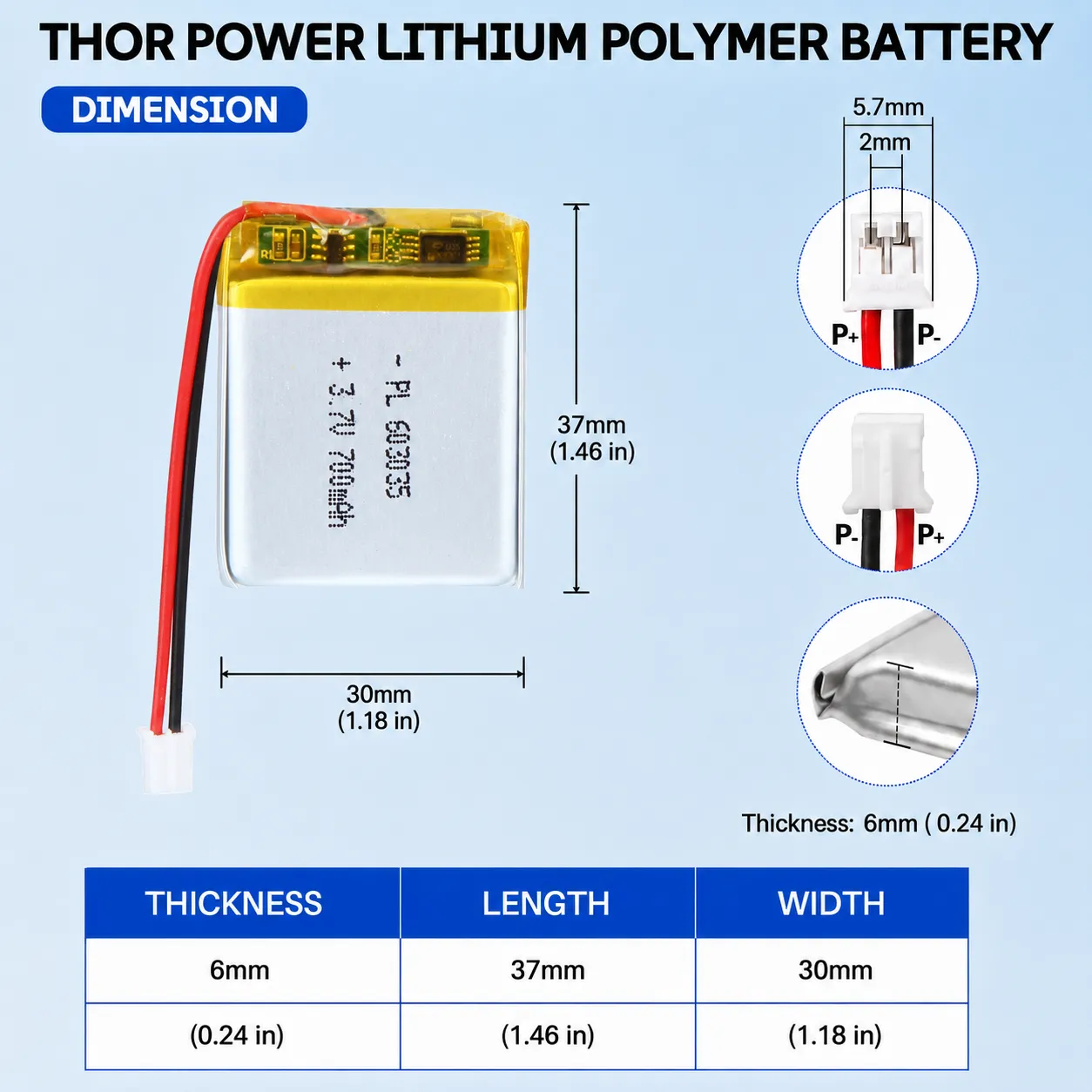

THOR 603035 3.7V 700mAh LiPo battery dimension drawing showing T×W×L = 6.0 × 30 × 37 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

Exploded multilayer structure of a LiPo pouch cell showing tabs, pouch film, electrodes, separator, current collectors and insulating layers

↓ Download Product Datasheet (PDF)Request a Quote

Description

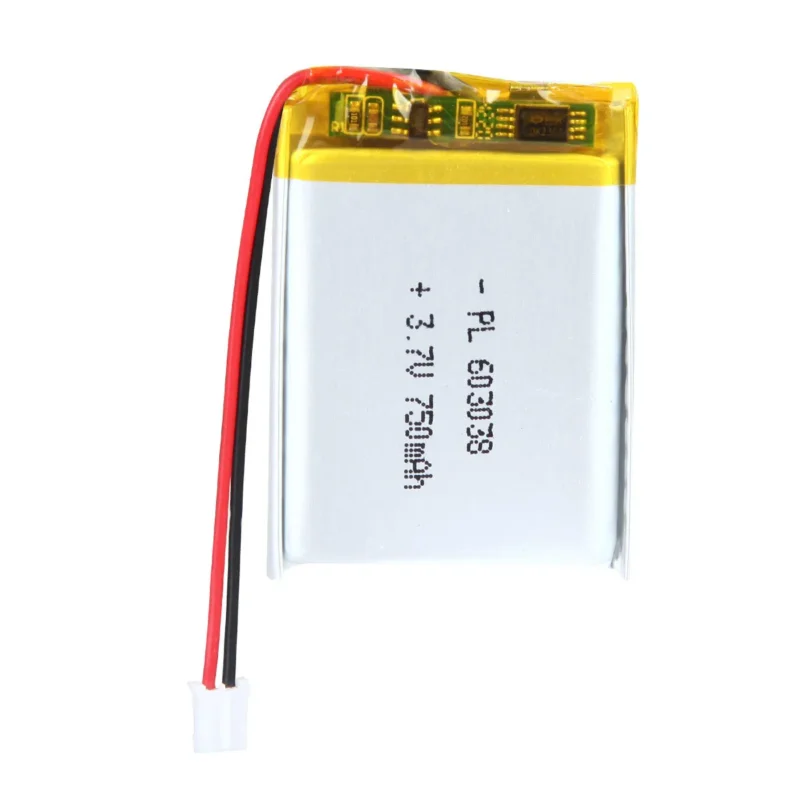

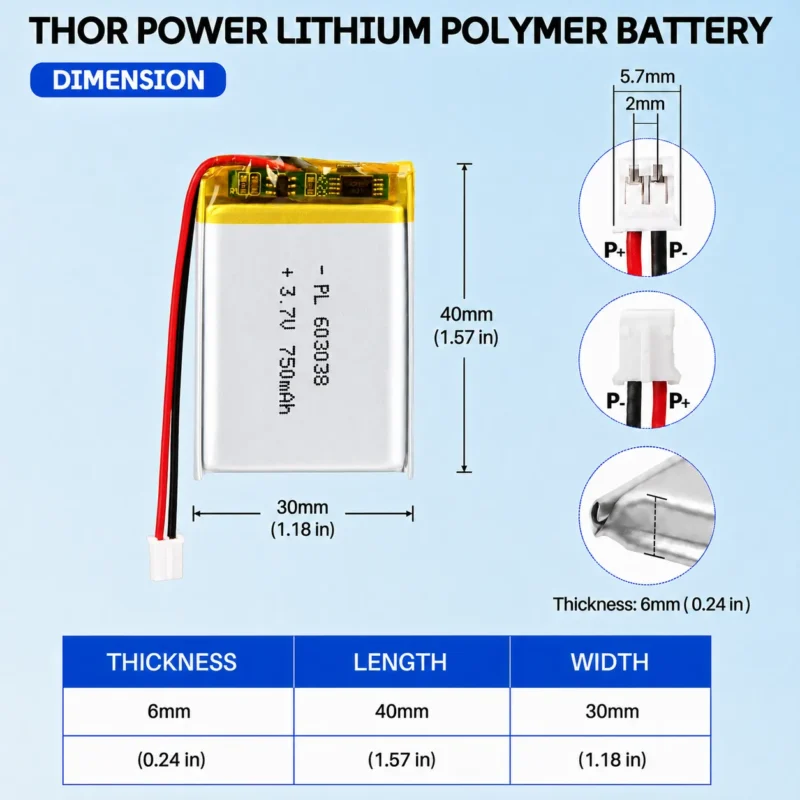

The THOR-603035 is a 3.7V 700mAh lithium polymer cell with a 6 × 30 × 35mm bare-cell envelope and 2.59Wh nominal energy. THOR-603038 keeps the same thickness and width while extending length to 38mm for 750mAh; THOR-603040 extends to 40mm for 800mAh. THOR-503035 is thinner at 5mm but provides 500mAh.

The balanced 30 × 35mm footprint is a technical-fit candidate for premium TWS charging cases, rechargeable hearing-assist devices and compact smart-jewelry or translator electronics. The current configuration indicates approximately 2mm additional length with the PCM; wire routing, connector, insulation, swelling allowance and tolerances must be verified in the actual enclosure.

Capacity does not by itself approve audio peaks, wireless transmit pulses or charging current. Validate the full duty cycle, thermal environment, cutoff settings and protection limits before using the 2.59Wh nominal-energy value for runtime estimates.

THOR-603035 Engineering & Fit Questions

How does THOR-603035 compare with THOR-603040?

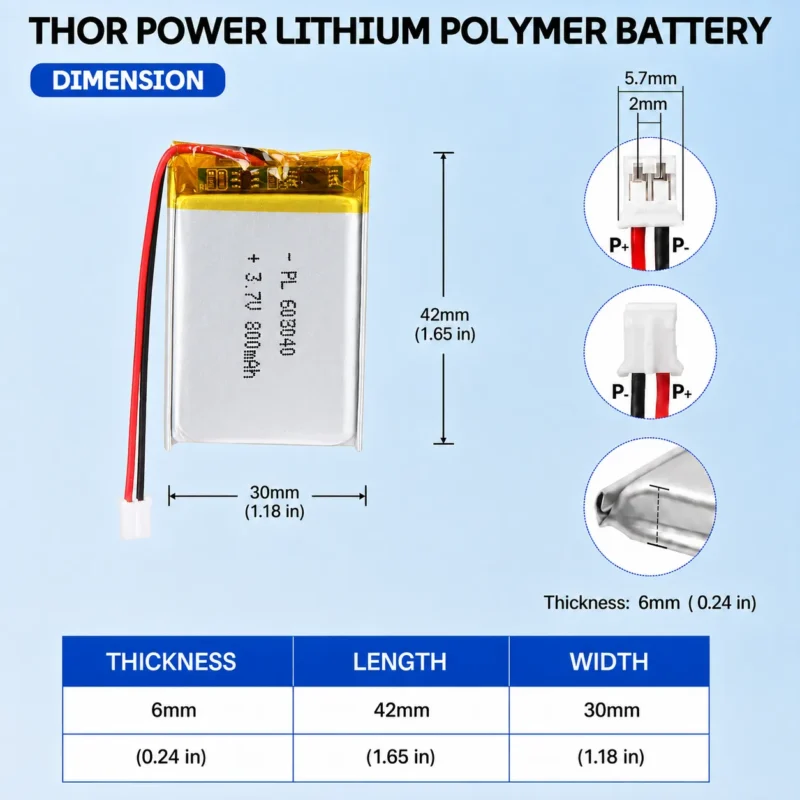

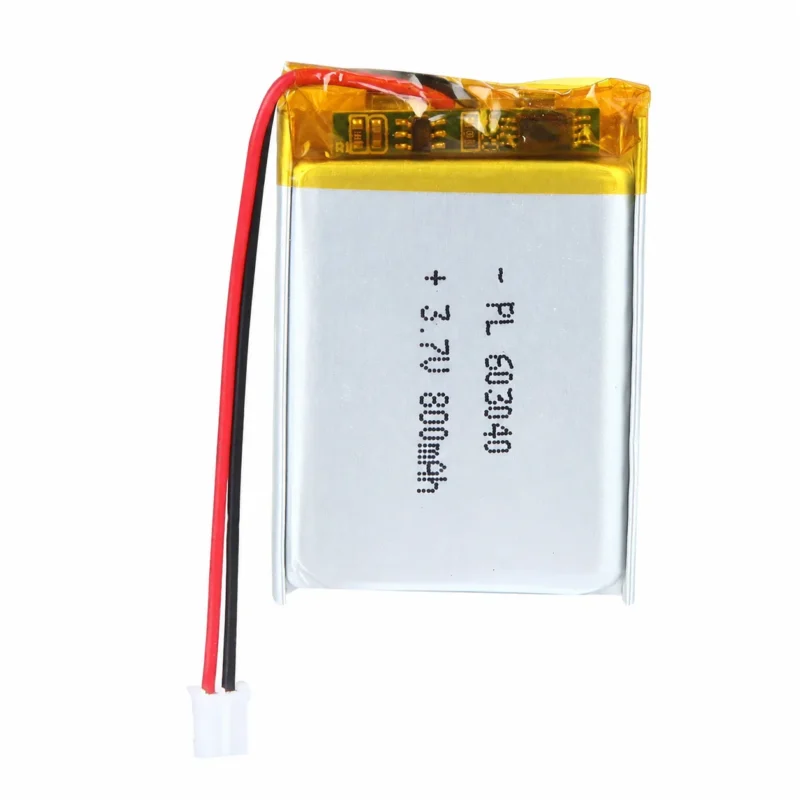

THOR-603040↗ keeps 6mm thickness and 30mm width but extends length from 35mm to 40mm and increases capacity from 700mAh to 800mAh.

Is there a thinner 30 x 35mm alternative?

THOR-503035↗ uses the same footprint at 5mm thickness, with a lower 500mAh capacity.

Does 700mAh establish audio or radio pulse capability?

No. Validate continuous load, pulse demand, temperature, cutoff, charging and protection limits.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-603035
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	700 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 700mAh Lithium Polymer (LiPo) Battery with Connector | THOR-603035

The THOR-603035 is a 700mAh 3.7V lithium polymer battery (6.0×30×35mm), delivering 2.59Wh at ~11.3g. Balanced 6.0mm × 30×35mm form bridges slim and deep 700mAh designs. One of 7 700mAh variants — see also THOR-403442, THOR-423448 for alternative dimensions. Ideal for premium TWS earbuds, hearing device batteries, smart jewelry cells, and wearable translator power. Volumetric density: 0.41 Wh/cm³.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-603035

Mechanical Characteristics

Model	THOR-603035
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	6 × 30 × 35 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 13 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	700 mAh
Energy	2.59 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	140 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	700 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	140 mA (0.2C)
Max. Continuous Discharge	700 mA (1C), model-specific
Internal Resistance	≤ 100 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-603035

Premium TWS Charging CasesPrimary technical-fit use after audio peaks, charging, thermal limits and the finished-pack envelope are validated.

Rechargeable Hearing-Assist DevicesFor compact hearing electronics where the enclosure can accommodate the bare cell plus protection, leads and connector.

Smart Jewelry & Wearable TranslatorsFor connected wearables after standby drain, radio pulses, skin temperature and mechanical protection are reviewed.
