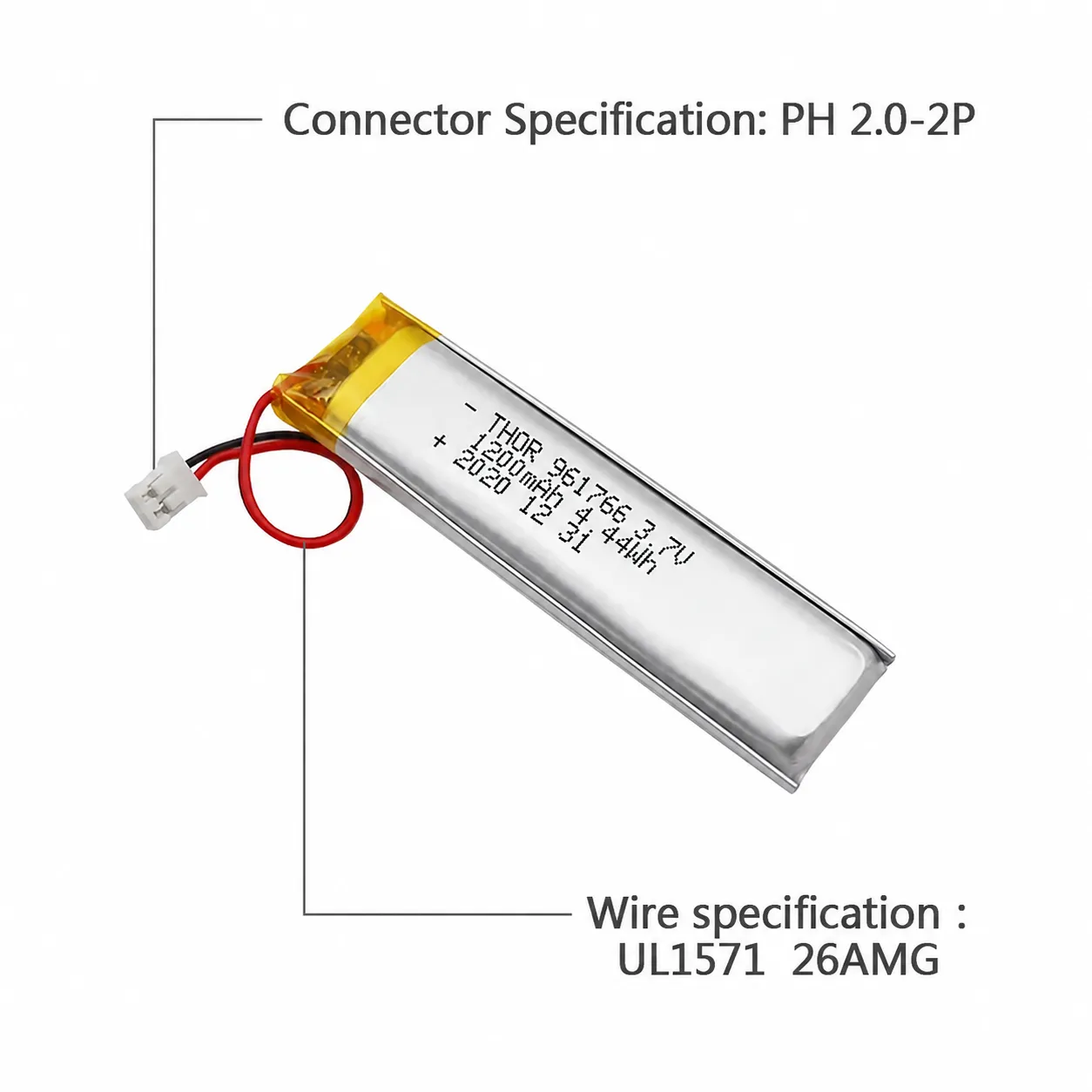

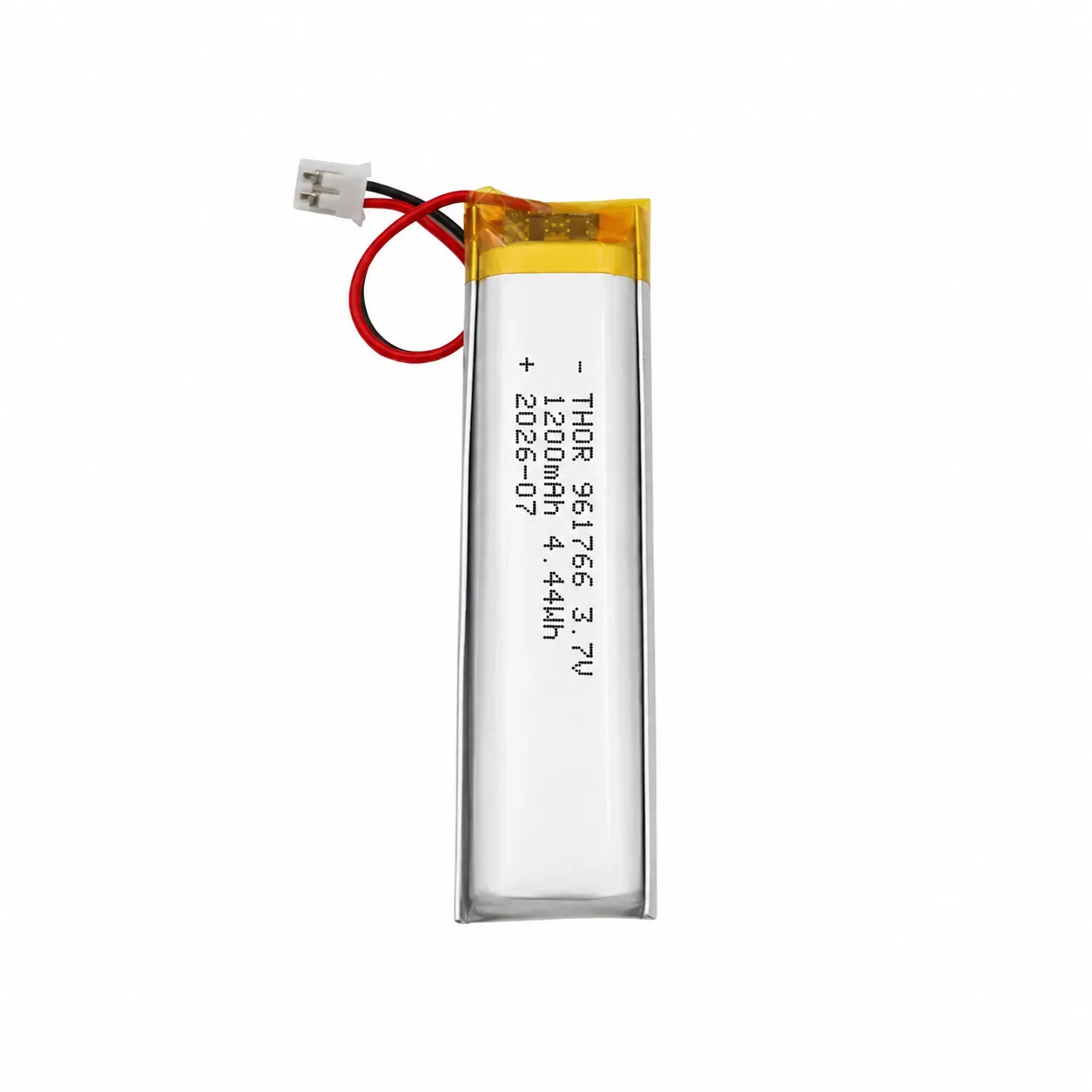

THOR-961766 provides 1200mAh in a narrow, elongated 9.6 × 17 × 66mm bare-cell envelope. THOR-102540 keeps the same capacity in a much shorter 25 × 40mm footprint but requires more width. THOR-802952 is thinner and shorter at 8 × 29 × 52mm, again trading width for length. Choose THOR-961766 when a 17mm-wide channel is the hard enclosure constraint.

The 9.6 × 17 × 66mm value is the nominal bare-cell envelope. PCM position, insulation, connector body, lead exit and wire bend radius can enlarge the finished assembly, especially at the ends of a narrow channel.

At 3.7V nominal and 1200mAh, THOR-961766 stores 4.44Wh. Runtime depends on the complete load profile, regulator efficiency, cutoff voltage, duty cycle, temperature and aging. Capacity and thickness do not establish current capability.

• Stable 3.7 V nominal output for reliable power delivery
• Long cycle life — typically several hundred cycles, cost-efficient
• Built-in protection: overcharge, over-discharge, short-circuit
• Custom size, capacity, connector & PCM/BMS
• UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.
