THOR 654060 3.7V 1800mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

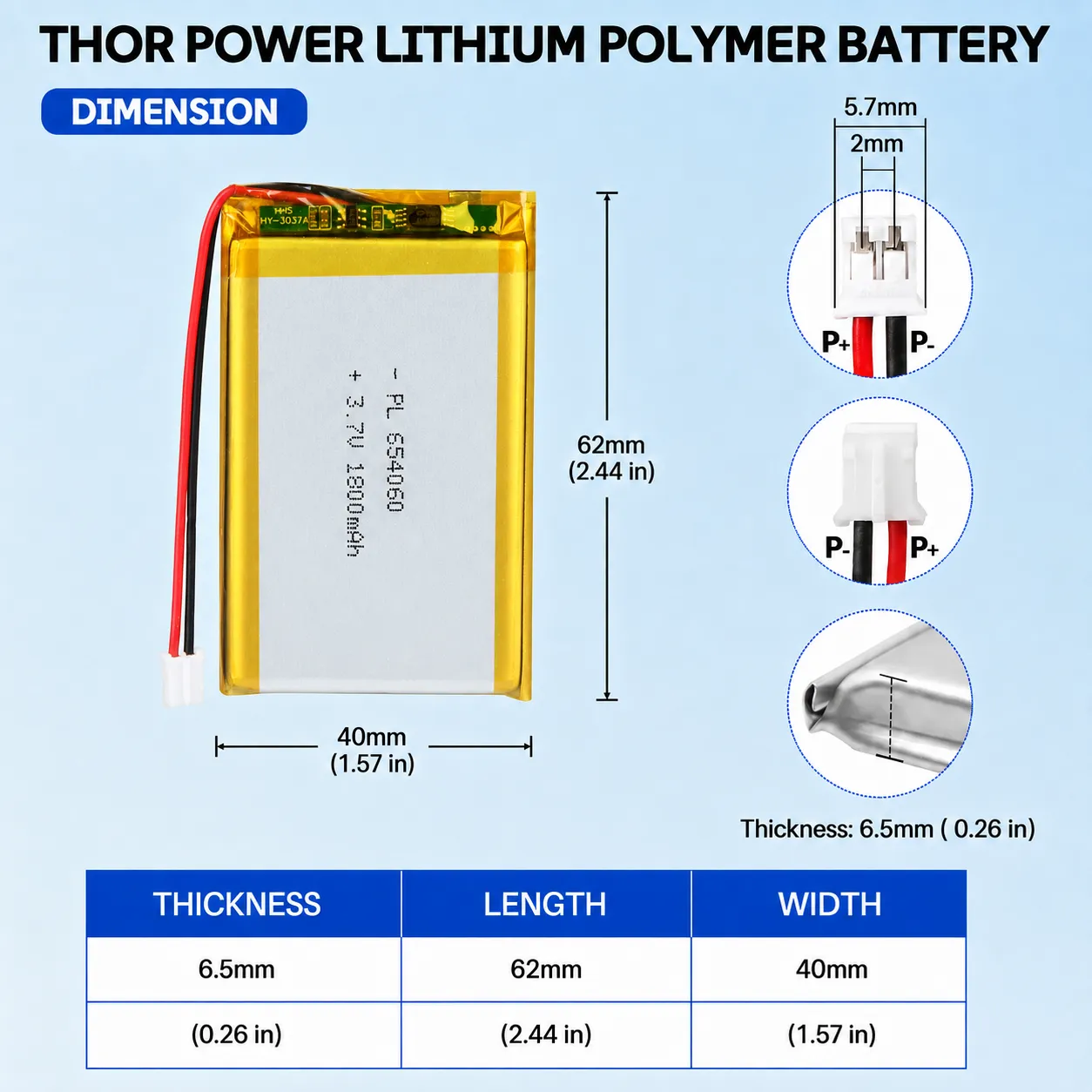

THOR 654060 3.7V 1800mAh LiPo battery dimension drawing showing T×W×L = 6.5 × 40 × 62 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

Exploded multilayer structure of a LiPo pouch cell showing tabs, pouch film, electrodes, separator, current collectors and insulating layers

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-654060 provides 1800mAh in a 6.5 × 40 × 60mm bare-cell envelope for designs that prioritize lower thickness and can accept 60mm length. THOR-804050 keeps the same 1800mAh capacity and 40mm width but is 8mm thick and 10mm shorter. If more energy is required and a 9mm-thick cavity is available, THOR-903659 provides 2500mAh in a 9 × 36 × 59mm format.

The 6.5 × 40 × 60mm value is the nominal bare-cell envelope. The current PCM-equipped drawing is approximately 6.5 × 40 × 62mm. Include insulation, lead exit, connector mating space and wire bend radius in the enclosure, then validate the production-intent drawing and samples.

At 3.7V nominal and 1800mAh, THOR-654060 stores 6.66Wh. Runtime depends on load profile, regulator efficiency, cutoff voltage, display or radio duty cycle, temperature and aging. Capacity and geometry do not establish continuous or peak-current capability.

THOR-654060 Engineering & Fit Questions

How do THOR-654060, THOR-804050 and THOR-903659 compare?

THOR-654060 is the thinner 1800mAh option at 6.5 × 40 × 60mm. THOR-804050↗ has the same capacity in a thicker but 10mm shorter format, while THOR-903659↗ increases capacity to 2500mAh in a 9 × 36 × 59mm envelope.

Are 6.5 × 40 × 60mm the finished THOR-654060 dimensions?

No. They are nominal bare-cell dimensions. The current PCM-equipped drawing is approximately 6.5 × 40 × 62mm, and the final cavity must also allow for insulation, lead exit, connector mating and wire routing.

What determines runtime with THOR-654060?

Its nominal energy is 6.66Wh, but usable runtime depends on the complete load profile, regulator efficiency, system cutoff voltage, duty cycle, temperature and aging. Peak and continuous-current suitability must be reviewed independently of capacity.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-654060
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	1800 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 1800mAh Lithium Polymer (LiPo) Battery with Connector | THOR-654060

THOR-654060 is a 3.7V 1800mAh LiPo pouch cell with 6.66Wh nominal energy and a 6.5 × 40 × 60mm bare-cell envelope. It is thinner and longer than THOR-804050 at the same capacity, while THOR-903659 offers more energy in a thicker, slightly narrower format. Final selection should balance thickness, length, energy and protected-pack integration.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-654060

Mechanical Characteristics

Model	THOR-654060
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	6.5 × 40 × 60 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 33 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	1800 mAh
Energy	6.66 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	360 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	1.8 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	360 mA (0.2C)
Max. Continuous Discharge	1.8 A (1C), model-specific
Internal Resistance	≤ 70 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-654060

Industrial Handheld Terminals — PrimaryThe 6.5mm nominal thickness and 40 × 60mm footprint can suit industrial handheld terminals that need 6.66Wh without moving to a 9mm-class cell. Validate display, processor, radio and transient loads.

Portable Analyzers & Measurement InstrumentsTHOR-654060 can suit portable analyzers or measurement instruments where a relatively thin 60mm-long battery cavity is available. Confirm sensing, display, data-logging and connector requirements.

Wireless Data LoggersThe cell may support data loggers with periodic sensing and radio reporting after standby drain, transmission pulses, environmental conditions and finished-pack fit are validated.
