Description

Choose THOR-505050 when the design can accept 5mm nominal battery thickness and needs more runtime than the 4mm THOR-405050↗ can provide within the same 50 × 50mm footprint. The extra 1mm of nominal thickness increases capacity from 1000mAh to 1500mAh, a 50% increase while preserving width and length. If reducing footprint area is more important than minimizing thickness, compare narrower 1500mAh alternatives such as THOR-804040↗ or THOR-103048↗, which shift the same capacity into different aspect ratios.

The nominal 5 × 50 × 50mm dimensions describe the bare cell. With PCM, the current finished assembly is approximately 5 × 50 × 52mm. Enclosure design should include the PCM high point, connector mating space, lead-wire exit and normal pouch dimensional allowance, especially when the device cavity is close to the 5mm cell-depth limit.

At 3.7V nominal, 1500mAh corresponds to 5.55Wh. The larger capacity improves available stored energy relative to THOR-405050, but runtime still depends on the device load profile, efficiency, cutoff voltage and operating conditions. The standard configuration uses PCM protection, 28AWG leads and PH2.0, with NTC optional; final current and charging requirements should be validated for the production device.

THOR-505050 Engineering & Fit Questions

How does THOR-505050 compare with THOR-405050?

Both share the same 50 × 50mm footprint. THOR-505050 uses 1mm more nominal thickness (5mm vs 4mm) to increase capacity from 1000mAh to 1500mAh, a 50% gain. Choose THOR-405050↗ when minimizing battery depth is the priority; choose THOR-505050 when additional runtime justifies the extra millimetre.

What is the finished size of THOR-505050 with PCM?

The bare cell is nominally 5 × 50 × 50mm. The current PCM-equipped assembly is approximately 5 × 50 × 52mm. The finished envelope depends on PCM placement, insulation, connector position, wire exit and harness routing, so enclosure design should reference the approved production-intent drawing.

Is the extra 1mm thickness worth the increase from 1000mAh to 1500mAh?

That depends on the project constraints. The extra 1mm of nominal cell depth yields 500mAh (50%) more capacity, equivalent to 1.85Wh additional stored energy. If the enclosure can tolerate 5mm battery thickness without affecting other stack-up components, the capacity gain is substantial. If 4mm is the hard mechanical limit, THOR-405050 is the correct choice.

Can THOR-505050 be supplied with NTC?

NTC is optional on this SKU. The standard configuration includes PCM protection, 28AWG leads and PH2.0 connector. If the device charge controller or battery monitor requires temperature sensing, specify NTC when requesting an OEM sample so the finished pack includes the third wire and thermistor element.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-505050
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	1500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

THOR-505050 3.7V 1500mAh LiPo Battery – 5×50×50mm

THOR-505050 is a 1S 3.7V 1500mAh lithium polymer battery built around a nominal 5 × 50 × 50mm bare pouch cell, providing 5.55Wh. It keeps the same broad 50 × 50mm footprint as THOR-405050 but uses 1mm more nominal thickness to provide 500mAh additional capacity. The current PCM-equipped assembly is approximately 5 × 50 × 52mm, making finished-pack depth and connector routing important mechanical checks before enclosure release.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-505050

Mechanical Characteristics

Model	THOR-505050
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	5 × 50 × 50 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 26 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional

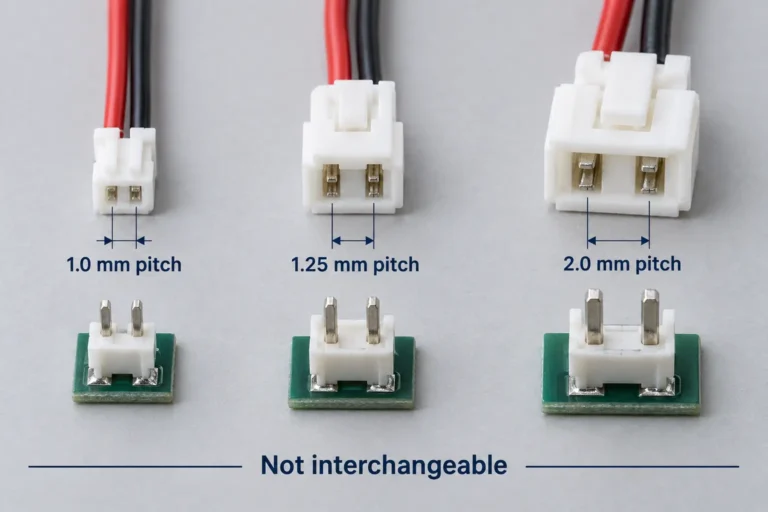

Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	1500 mAh
Energy	5.55 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	300 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	1.5 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	300 mA (0.2C)
Max. Continuous Discharge	1.5 A (1C), model-specific
Internal Resistance	≤ 70 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-505050

Portable Home Monitoring DevicesThe 1500mAh capacity and broad 50 × 50mm footprint can suit portable home-monitoring devices that need longer runtime and can accept 5mm nominal cell thickness. Confirm display/sensor duty cycle, wireless activity and finished-pack integration.

Smart-Home Commissioning ToolsTHOR-505050 can suit portable setup and commissioning tools using displays, wireless communication and control electronics where extended runtime is more important than minimizing battery depth below 5mm.

Wireless Handheld ControllersThe 1500mAh format can support rechargeable handheld controllers that need longer operating time within a broad flat enclosure. Validate communications load, display activity, peak current and connector routing.

Portable Test InstrumentsTHOR-505050 can also suit compact test and measurement instruments where the enclosure accepts a 50 × 50mm battery cavity and the project benefits from additional runtime compared with thinner 1000mAh alternatives.
