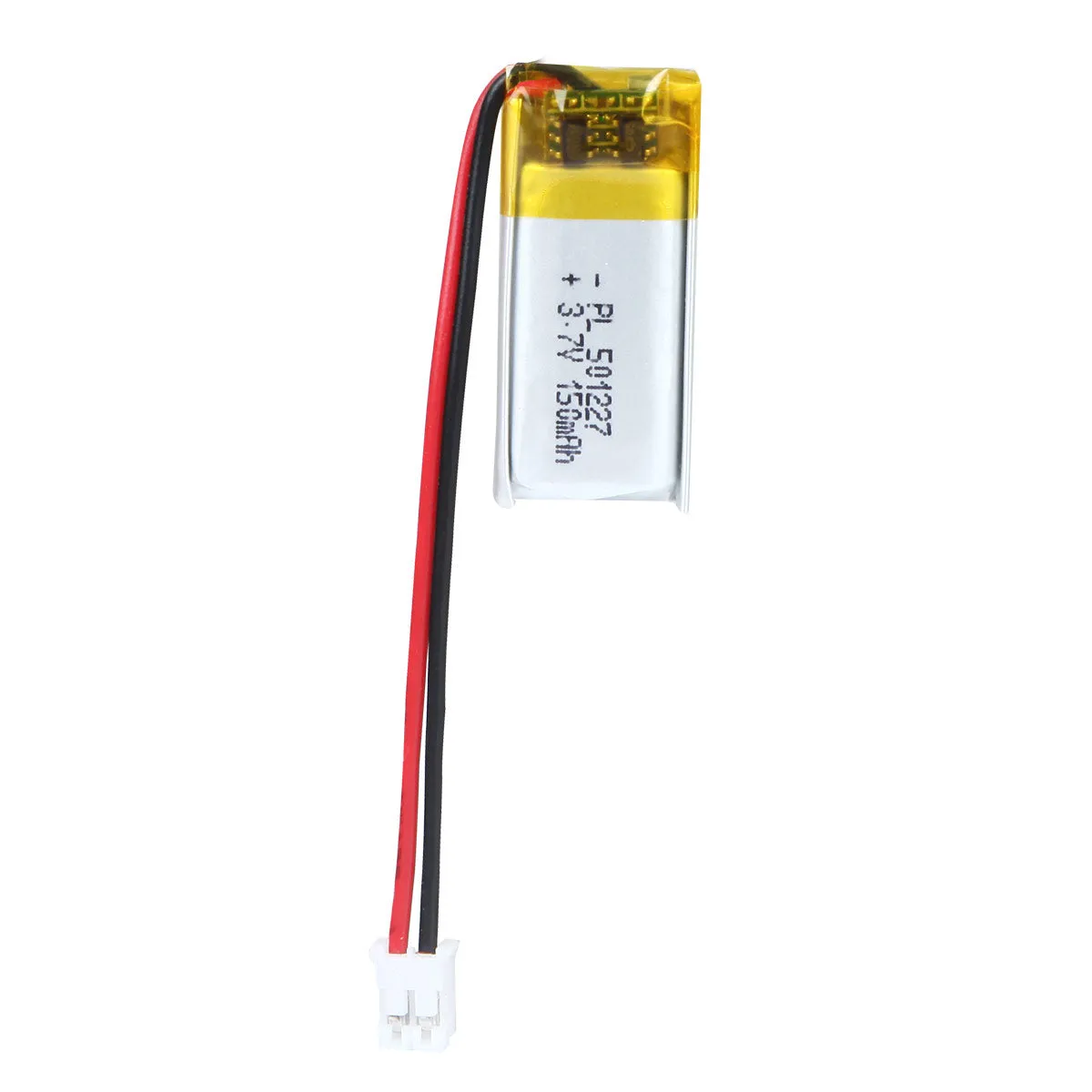

THOR 501227 3.7V 130mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

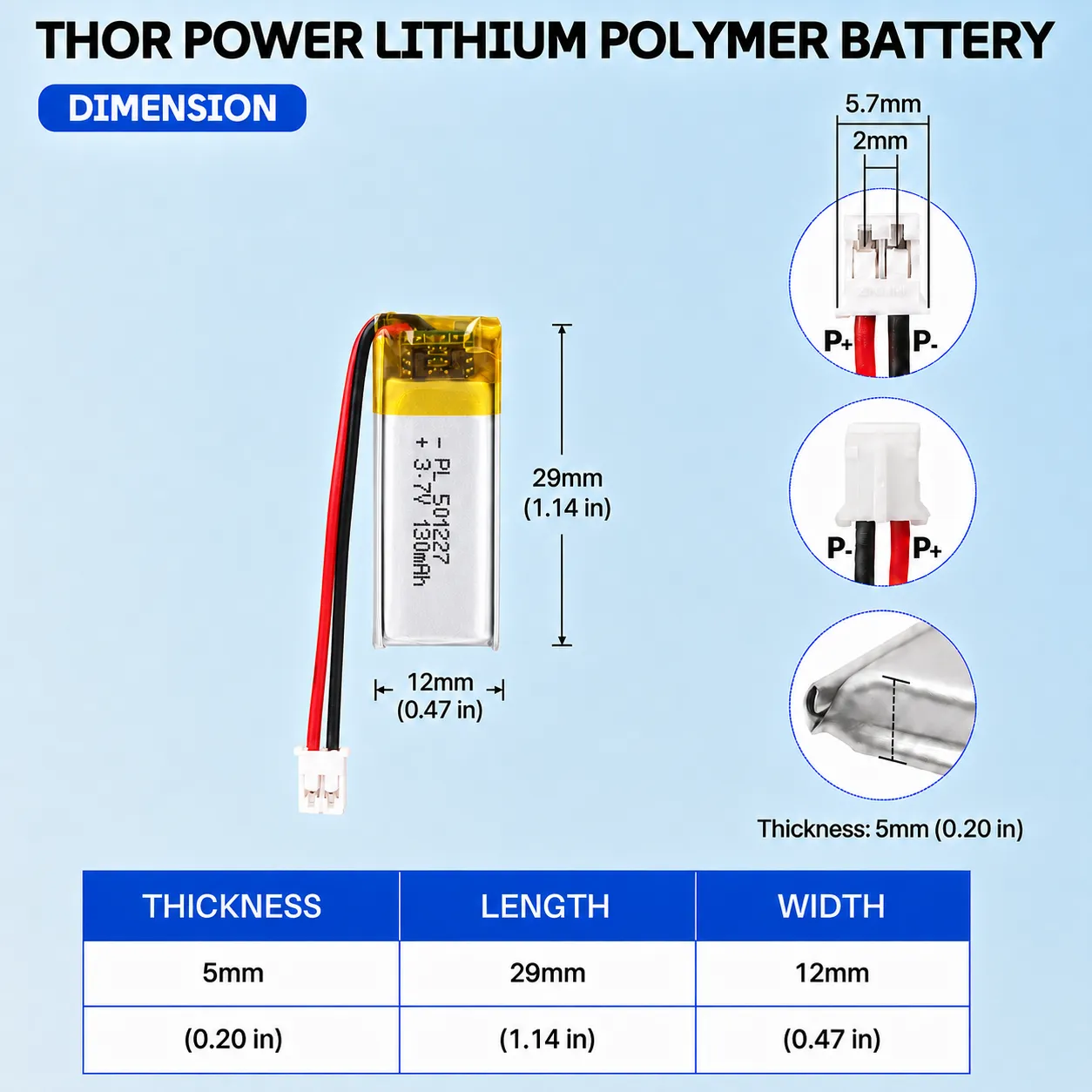

THOR 501227 3.7V 130mAh LiPo battery dimension drawing showing T×W×L = 5 × 12 × 29 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

Exploded multilayer structure of a LiPo pouch cell showing tabs, pouch film, electrodes, separator, current collectors and insulating layers

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-501227 is the middle geometry in the 5mm-thick micro-cell ladder, providing 130mAh in a 5 × 12 × 27mm bare-cell envelope. THOR-501125 is 1mm narrower and 2mm shorter with 100mAh. THOR-501525 provides 150mAh in a 15mm-wide, 25mm-long format, trading width for a shorter length and 20mAh more capacity.

The 5 × 12 × 27mm value is the nominal bare-cell envelope. The current PCM-equipped drawing is approximately 5 × 12 × 29mm. PCM position, insulation, connector height, lead exit and wire bend radius can materially affect the finished geometry in a micro enclosure.

At 3.7V nominal and 130mAh, THOR-501227 stores approximately 0.48Wh. Actual runtime depends on standby current, active duty cycle, radio or sensor pulses, regulator efficiency, cutoff voltage, temperature and aging. Validate peak demand and voltage sag with the intended electronics.

THOR-501227 Engineering & Fit Questions

When should I choose THOR-501227 instead of THOR-501125 or THOR-501525?

Choose THOR-501227 when 130mAh is useful and the cavity can accept 12 × 27mm. THOR-501125↗ is smaller at 11 × 25mm with 100mAh, while THOR-501525↗ provides 150mAh in a wider but shorter 15 × 25mm footprint.

Are 5 × 12 × 27mm the protected-pack dimensions?

No. They are nominal bare-cell dimensions. The current PCM-equipped drawing is approximately 5 × 12 × 29mm, and connector height, insulation, lead exit and wire routing can require additional clearance.

How should a 130mAh design be runtime-tested?

Test the real standby current, active duty cycle, pulse magnitude and duration, regulator efficiency, system cutoff voltage, temperature range and aging allowance. Runtime calculations based only on 130mAh will not capture voltage sag or conversion losses.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-501227
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	130 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 130mAh Lithium Polymer (LiPo) Battery with Connector | THOR-501227

THOR-501227 is a 3.7V 130mAh LiPo pouch cell with approximately 0.48Wh nominal energy and a 5 × 12 × 27mm bare-cell envelope. It occupies the middle of the THOR-501125 / 501227 / 501525 micro-cell ladder, adding capacity with a modest footprint increase while remaining narrower than THOR-501525. Final pack and pulse-load requirements must be verified.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-501227

Mechanical Characteristics

Model	THOR-501227
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	5 × 12 × 27 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 3 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	130 mAh
Energy	0.48 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	26 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	130 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	26 mA (0.2C)
Max. Continuous Discharge	130 mA (1C), model-specific
Internal Resistance	≤ 130 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-501227

Compact Wearable Control Modules — PrimaryThe 5 × 12 × 27mm geometry can suit wearable control modules that need more capacity than a 100mAh-class cell without moving to a 15mm-wide format. Confirm duty cycle, enclosure clearance and mechanical protection.

Wireless Sensor Nodes & Smart TagsTHOR-501227 may suit low-duty sensor nodes or smart tags after standby drain, radio pulses, reporting interval and finished-pack dimensions are validated.

Compact Audio & Accessory ElectronicsThe cell can be considered for compact audio or accessory electronics when pulse demand, connector placement, thermal behavior and charge method are verified.
