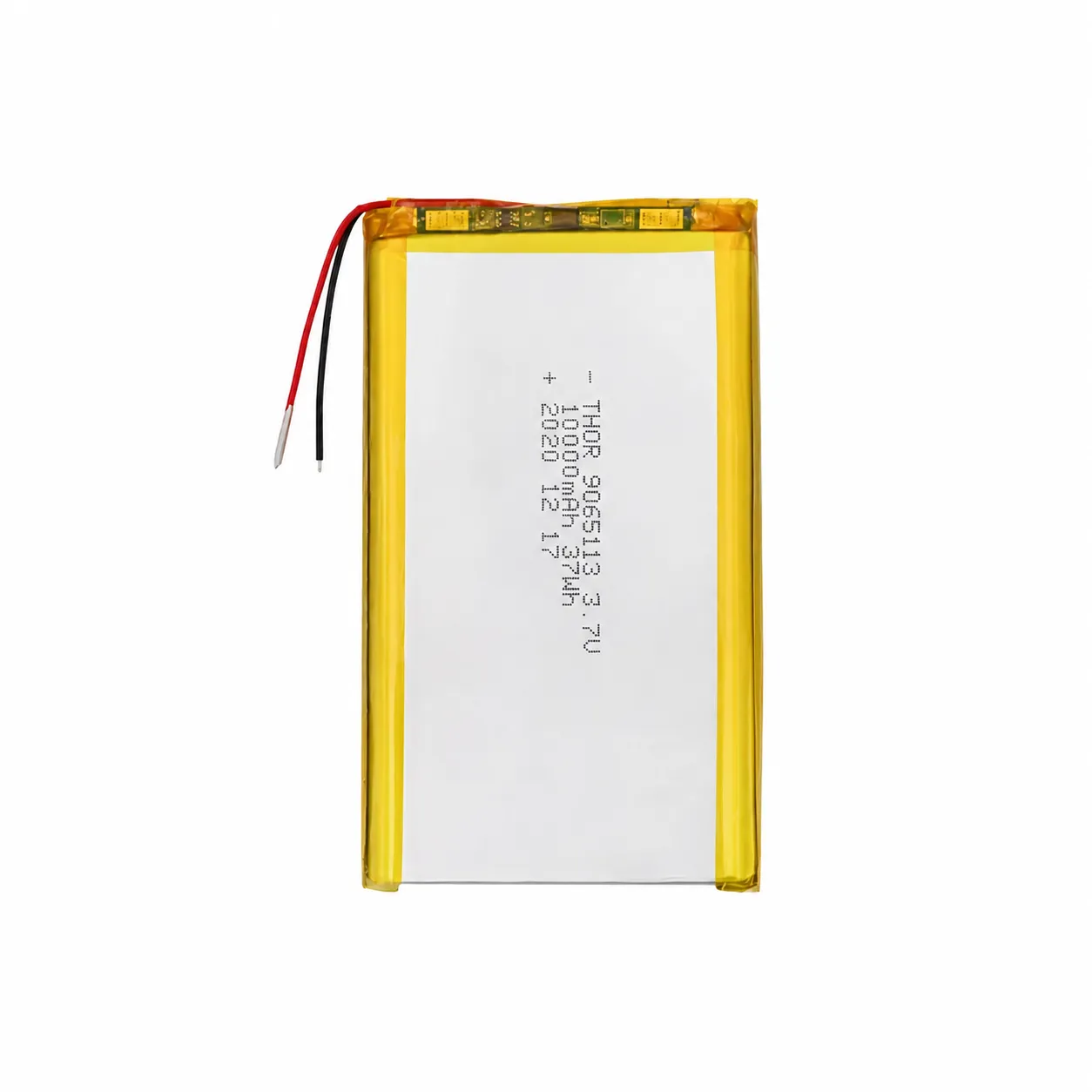

THOR-9065113 provides 10000mAh in a broad 9 × 65 × 113mm bare-cell envelope. Compared with THOR-1160100, it reduces nominal thickness by 2mm but requires 5mm more width and 13mm more length. If still lower thickness is the priority and 8000mAh is sufficient, THOR-7565121 uses a 7.5 × 65 × 121mm envelope.

The 9 × 65 × 113mm value is the nominal bare-cell envelope. The current PCM-equipped drawing is approximately 9 × 65 × 115mm. Insulation, lead exit, connector position and harness bend radius can affect the final usable envelope; high-capacity cells also require appropriate mechanical support and thermal review.

At 3.7V nominal and 10000mAh, THOR-9065113 stores 37Wh. Actual runtime depends on load profile, regulator efficiency, cutoff voltage, duty cycle, charging strategy, temperature and aging. Validate continuous and peak current, PCM, wire and connector requirements at system level.

• Stable 3.7 V nominal output for reliable power delivery
• Long cycle life — typically several hundred cycles, cost-efficient
• Built-in protection: overcharge, over-discharge, short-circuit
• Custom size, capacity, connector & PCM/BMS
• UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications
