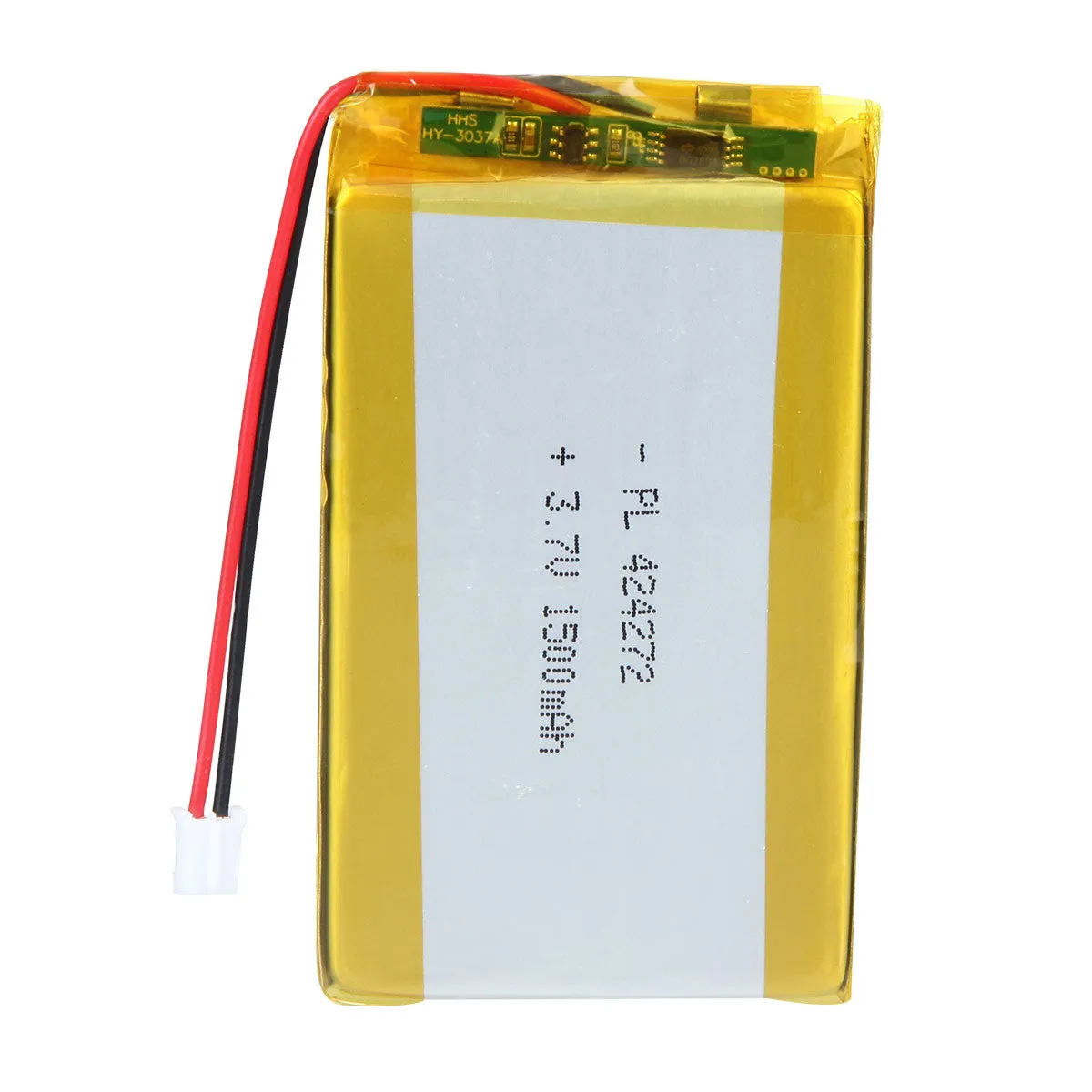

THOR 424272 3.7V 1500mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

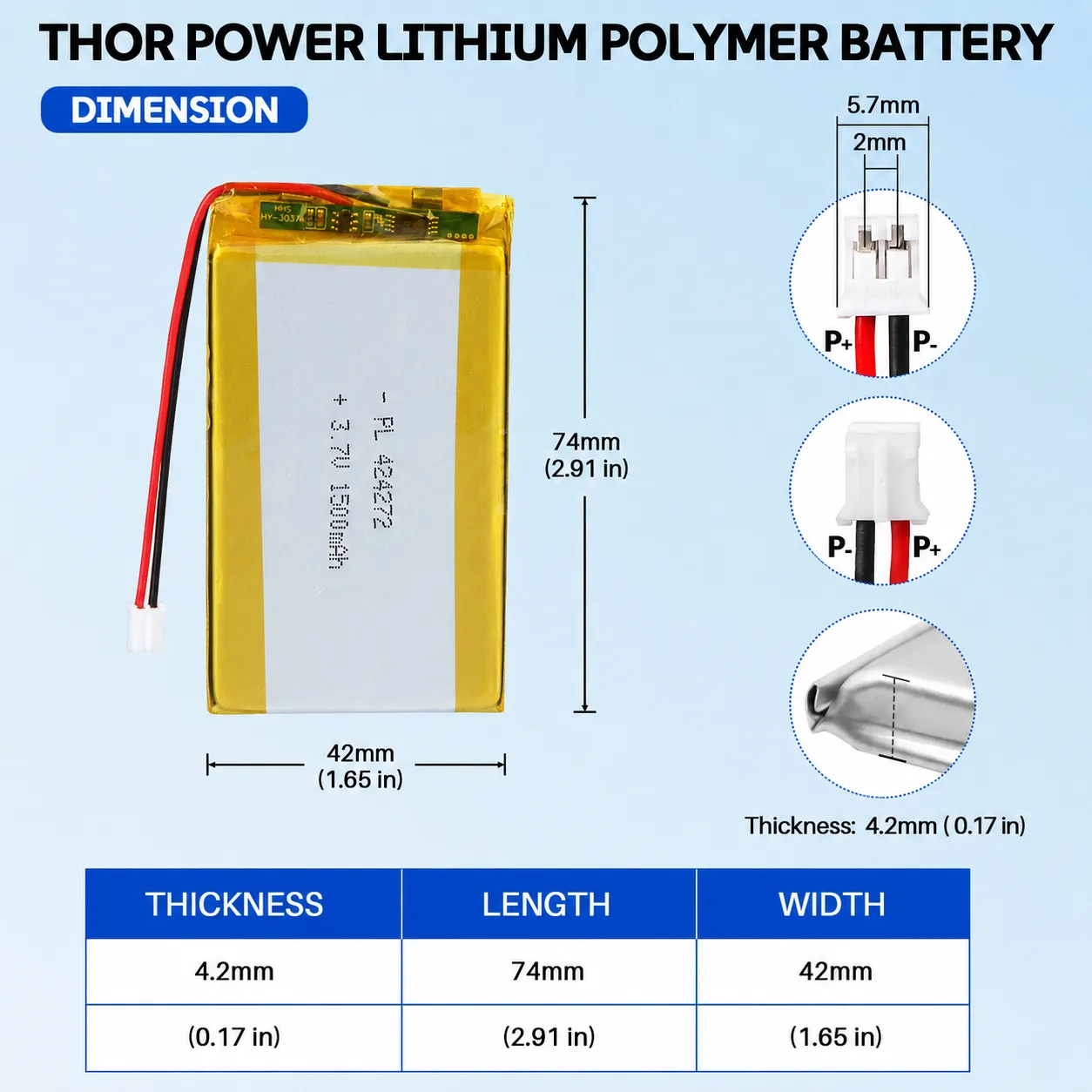

THOR 424272 3.7V 1500mAh LiPo battery dimension drawing showing T×W×L = 4.2 × 42 × 74 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

Exploded multilayer structure of a LiPo pouch cell showing tabs, pouch film, electrodes, separator, current collectors and insulating layers

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-424272 is the thin, broad 1500mAh option in this selection pair. Its 4.2 × 42 × 72mm bare-cell envelope suits shallow cavities with generous width and length. THOR-103048 provides the same 1500mAh capacity in a much shorter and narrower 10 × 30 × 48mm geometry, but requires more than twice the cell depth. If only a small thickness increase is acceptable, THOR-454272 keeps the same 42 × 72mm footprint at 4.5mm thickness.

The 4.2 × 42 × 72mm value is the nominal bare-cell envelope. The current PCM-equipped drawing is approximately 4.2 × 42 × 74mm. Allow for insulation, lead exit, connector mating space and wire bend radius, and confirm the final assembly against the approved drawing and production-intent samples.

At 3.7V nominal and 1500mAh, THOR-424272 stores 5.55Wh. Usable runtime varies with load profile, regulator efficiency, cutoff voltage, radio or display duty cycle, temperature and aging. Do not infer pulse or continuous-current capability from capacity or cell area alone.

THOR-424272 Engineering & Fit Questions

Should I choose THOR-424272 or THOR-103048 for 1500mAh?

Choose THOR-424272 for a shallow, broad cavity: it is 4.2mm thick with a 42 × 72mm footprint. Choose THOR-103048↗ when a shorter 30 × 48mm footprint matters more and the enclosure can accept 10mm nominal cell thickness.

What finished-pack length should be allowed for THOR-424272?

The nominal bare-cell size is 4.2 × 42 × 72mm, while the current PCM-equipped drawing is approximately 4.2 × 42 × 74mm. Connector mating space, insulation, lead exit and wire routing can require additional clearance, so approve the enclosure with the production-intent assembly.

Does the 1500mAh rating define runtime or discharge capability?

No. The 1500mAh rating corresponds to 5.55Wh at 3.7V nominal. Runtime depends on the device load, conversion efficiency, cutoff voltage, duty cycle, temperature and aging, while peak and continuous-current limits require separate validation.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-424272
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	1500 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 1500mAh Lithium Polymer (LiPo) Battery with Connector | THOR-424272

THOR-424272 is a 3.7V 1500mAh LiPo pouch cell with 5.55Wh nominal energy and a thin 4.2 × 42 × 72mm bare-cell envelope. Its broad, elongated footprint suits shallow battery cavities; compare THOR-103048 when a shorter, narrower but much thicker 1500mAh geometry is preferable. Final pack dimensions depend on PCM, insulation, wire and connector integration.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-424272

Mechanical Characteristics

Model	THOR-424272
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	4.2 × 42 × 72 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 27 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	1500 mAh
Energy	5.55 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	300 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	1.5 A (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	300 mA (0.2C)
Max. Continuous Discharge	1.5 A (1C), model-specific
Internal Resistance	≤ 70 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-424272

Slim Handheld Controllers & Transmitters — PrimaryThe 4.2mm nominal thickness and broad footprint can suit controller or transmitter housings designed around a shallow rear battery cavity. Validate control electronics, radio bursts, connector placement and final pack thickness.

Flat Portable Display & Terminal ModulesTHOR-424272 can suit portable display or terminal modules where battery area is available but enclosure depth is tightly constrained. Confirm display duty cycle, wireless load and the protected-pack envelope.

Slim Audio & Control ElectronicsThe elongated 42 × 72mm footprint can fit flat audio or control products after speaker, amplifier, peak-load and thermal requirements are validated.
