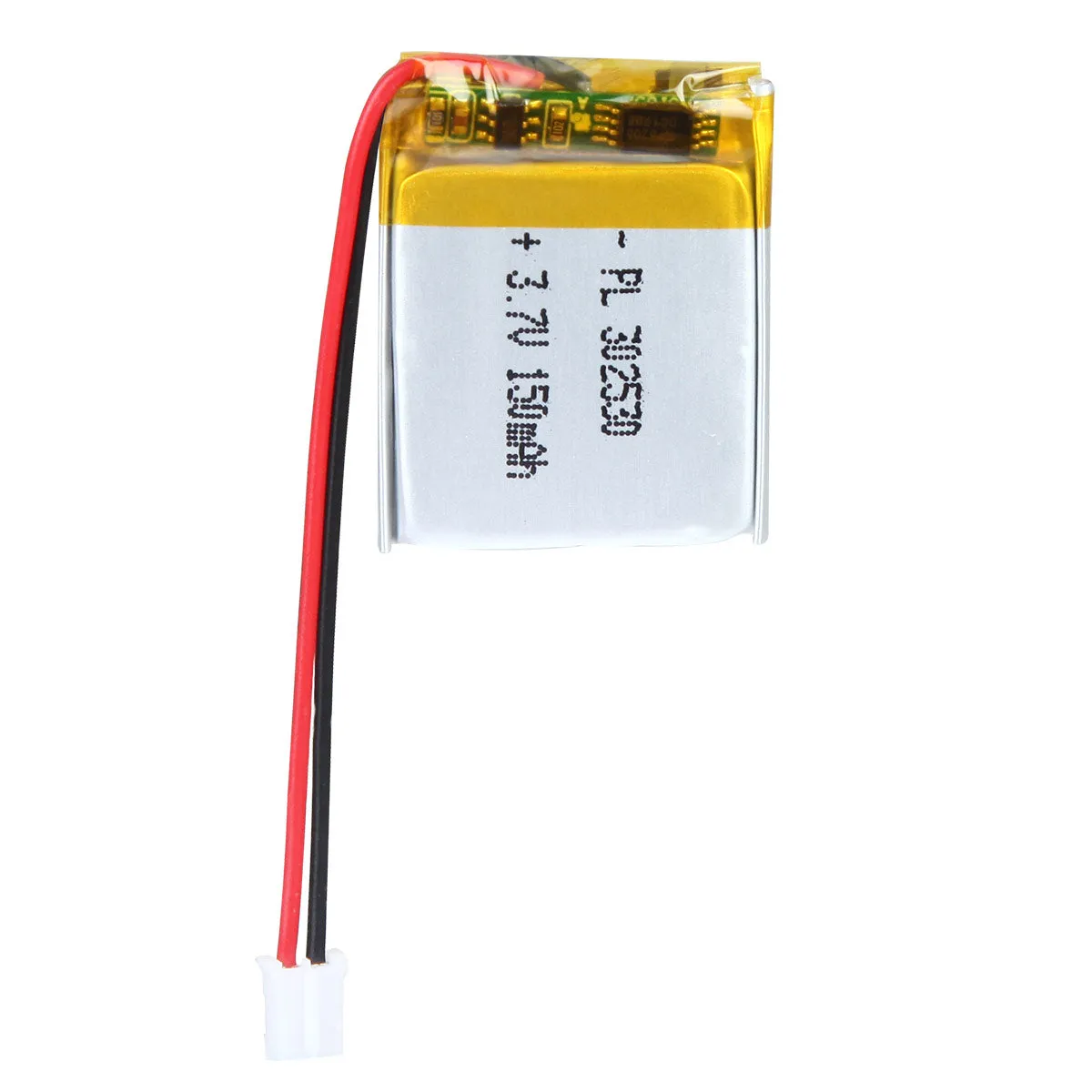

THOR 302530 3.7V 150mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

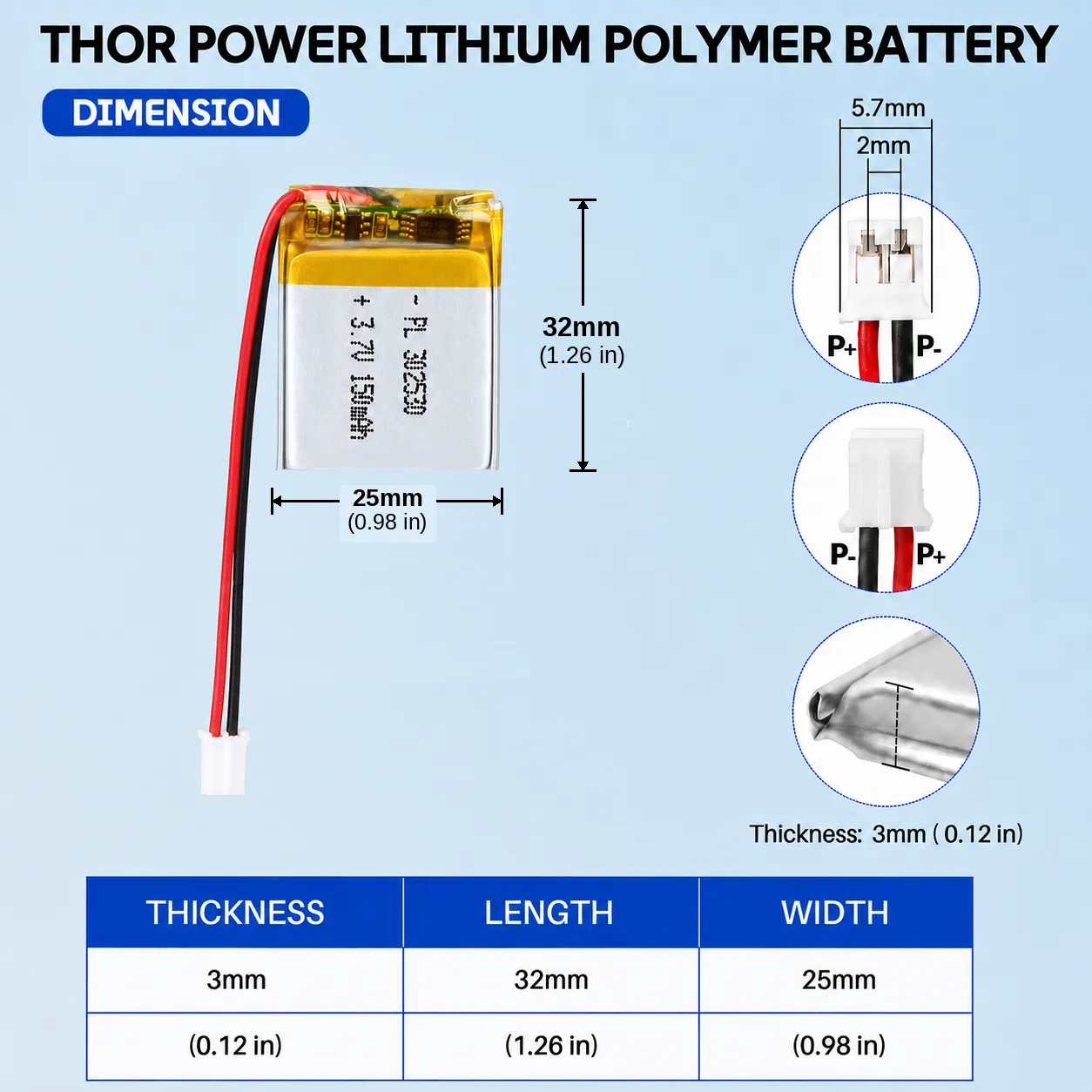

THOR 302530 3.7V 150mAh LiPo battery dimension drawing showing T×W×L = 3 × 25 × 32 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-302530 is the broad, 3mm-thin 150mAh option in this selection set. THOR-352025 keeps 150mAh in a shorter, narrower 20 × 25mm footprint but increases nominal thickness to 3.5mm. THOR-501525 is shorter and much narrower at 15 × 25mm, but requires 5mm thickness. Choose THOR-302530 when minimum depth is more important than plan area.

The 3 × 25 × 30mm value is the nominal bare-cell envelope. PCM placement, insulation, lead exit, connector and wire bend radius can increase the finished thickness and length, which is especially important in a shallow enclosure.

At 3.7V nominal and 150mAh, THOR-302530 stores approximately 0.56Wh. Runtime depends on standby drain, active duty cycle, pulse load, regulator efficiency, cutoff voltage, temperature and aging. Validate voltage sag and the complete protected assembly before sample approval.

THOR-302530 Engineering & Fit Questions

When is THOR-302530 preferable to shorter 150mAh cells?

Choose THOR-302530 when a 3mm profile is the priority and the cavity can accept 25 × 30mm. THOR-352025↗ is shorter and narrower but 3.5mm thick, while THOR-501525↗ uses a much smaller 15 × 25mm footprint at 5mm thickness.

Are 3 × 25 × 30mm the finished pack dimensions?

No. They are nominal bare-cell dimensions. PCM, insulation, lead exit, connector and wire routing can add thickness or length, so validate the complete protected assembly in the shallow cavity.

How should a 150mAh device be runtime-tested?

Test sleep current, active duty cycle, pulse load, regulator efficiency, cutoff voltage, temperature and aging. Confirm voltage sag with the actual electronics rather than relying on capacity alone.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-302530
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	150 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 150mAh Lithium Polymer (LiPo) Battery with Connector | THOR-302530

THOR-302530 is a 3.7V 150mAh LiPo pouch cell with approximately 0.56Wh nominal energy and a very thin 3 × 25 × 30mm bare-cell envelope. Its broad compact footprint preserves a 3mm profile, unlike shorter 150mAh options that require greater thickness. Final protected-pack thickness and pulse-load behavior require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-302530

Mechanical Characteristics

Model	THOR-302530
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	3 × 25 × 30 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 5 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	150 mAh
Energy	0.56 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	30 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	150 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	30 mA (0.2C)
Max. Continuous Discharge	150 mA (1C), model-specific
Internal Resistance	≤ 130 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-302530

Slim Smart Badges & ID Modules — PrimaryThe 3mm profile and broad compact footprint can suit rechargeable badge or ID modules where depth is tightly constrained. Confirm display, radio, standby and finished-pack requirements.

Flat Sensor Patches & Monitoring TagsTHOR-302530 may suit flat sensing or monitoring tags after flex, sealing, wireless peaks, duty cycle and protected-pack thickness are validated.

Compact Low-Duty Display ModulesThe cell can support compact display or indicator modules when the enclosure provides 25 × 30mm plan area and the load profile is verified.
