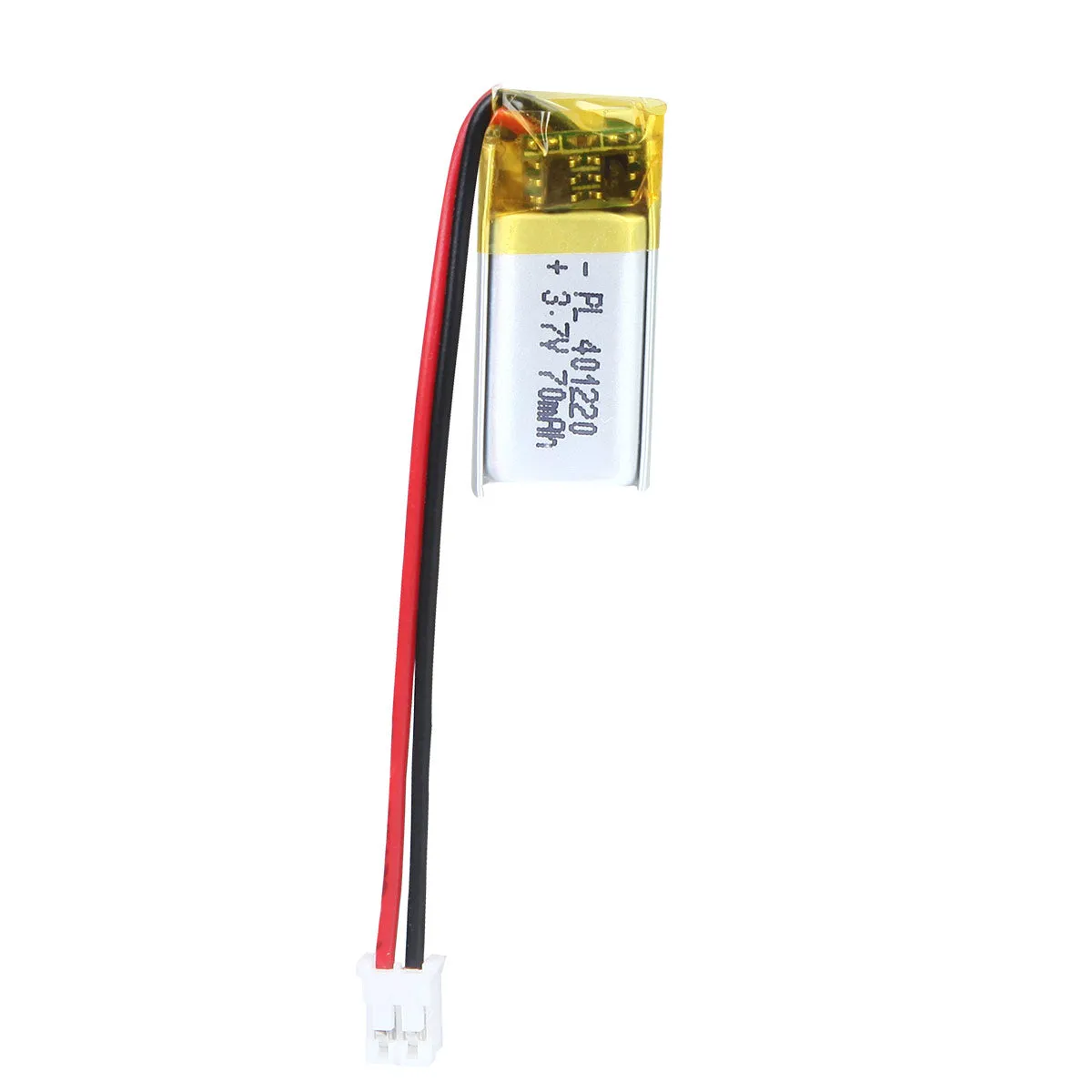

THOR 401220 3.7V 70mAh lithium polymer battery with PCM protection, red and black lead wires, and 2-pin connector

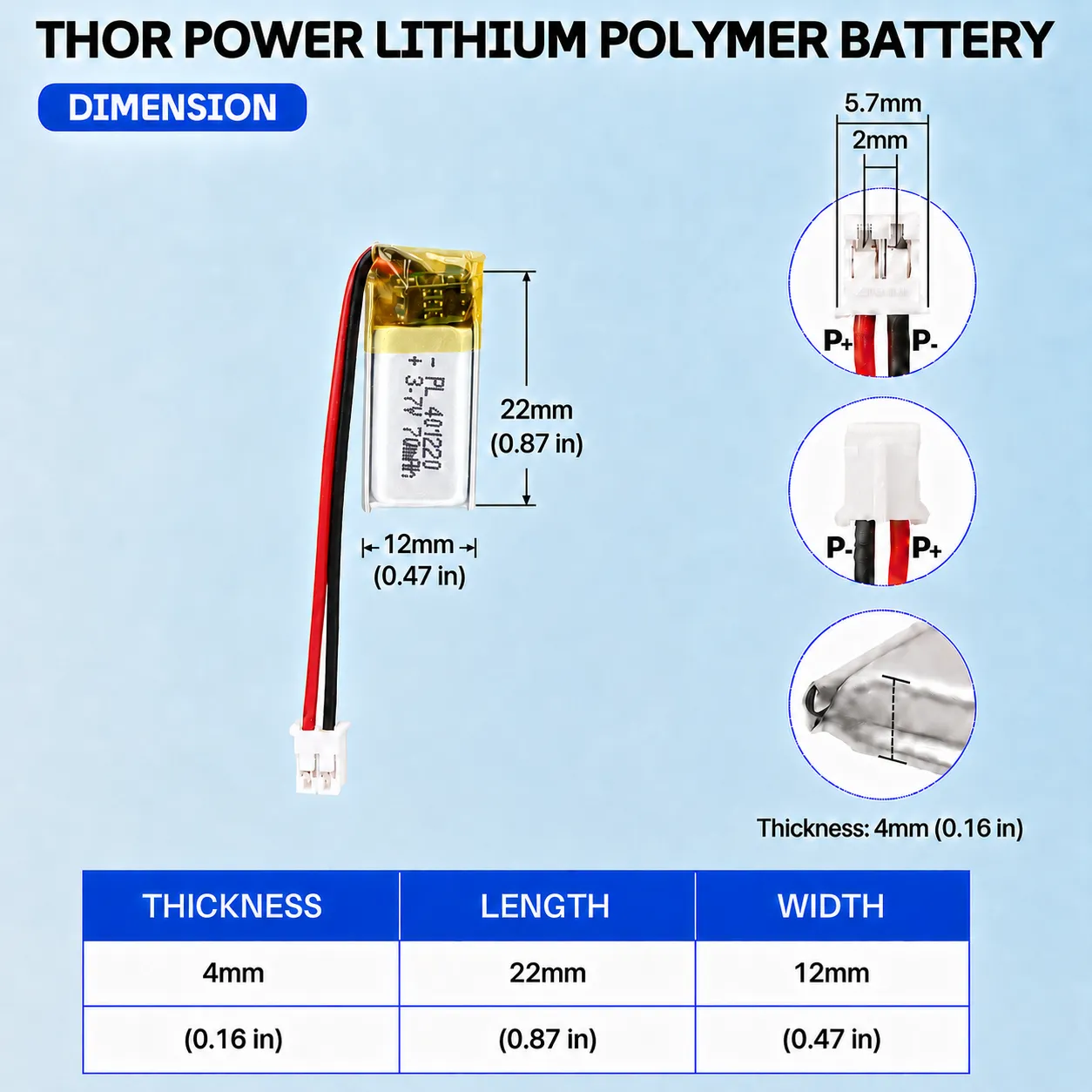

THOR 401220 3.7V 70mAh LiPo battery dimension drawing showing T×W×L = 4.0 × 12 × 22 mm (with PCM) and 2-pin connector polarity

Customizable LiPo battery connector and wire harness options, with PH 2.0 mm shown for reference

Lithium polymer (LiPo) battery connector polarity guide showing red positive and black negative wires with correct and incorrect connection examples

THOR lithium polymer (LiPo) battery discharge performance comparison with discharge curves and microscopic electrode material images

↓ Download Product Datasheet (PDF)Request a Quote

Description

THOR-401220 provides 70mAh in a very small 4 × 12 × 20mm bare-cell envelope. THOR-401020 is 2mm narrower at the same length and thickness but provides 55mAh. THOR-401025 keeps 70mAh and 4mm thickness in a narrower 10mm format that is 5mm longer. Choose THOR-401220 when minimum length matters more than minimum width.

The 4 × 12 × 20mm value is the nominal bare-cell envelope. PCM, insulation, connector height, lead exit and wire bend radius can dominate the finished dimensions in this size class, so validate the complete assembly rather than the pouch cell alone.

At 3.7V nominal and 70mAh, THOR-401220 stores approximately 0.26Wh. Runtime depends strongly on standby drain, wake frequency, pulse load, regulator losses, cutoff voltage, temperature and aging. Test voltage sag with the actual electronics.

THOR-401220 Engineering & Fit Questions

Should I choose THOR-401220, THOR-401020 or THOR-401025?

Choose THOR-401220 for 70mAh in a short 12 × 20mm footprint. THOR-401020↗ is narrower at 10 × 20mm but provides 55mAh, while THOR-401025↗ keeps 70mAh in a narrower but 5mm longer format.

Why can the finished THOR-401220 battery be larger than 4 × 12 × 20mm?

Those are nominal bare-cell dimensions. PCM, insulation, connector height, lead exit and wire bend radius can add significant space relative to such a small pouch cell.

What electrical checks matter most for a 70mAh cell?

Measure sleep current, active duty cycle, pulse magnitude and duration, regulator efficiency, cutoff voltage and charging behavior. A low average current does not guarantee that a short radio or audio peak will remain above the system cutoff voltage.

Stable 3.7 V nominal output for reliable power delivery
Long cycle life — typically several hundred cycles, cost-efficient
Built-in protection: overcharge, over-discharge, short-circuit
Custom size, capacity, connector & PCM/BMS
UN38.3 / MSDS ready; CE, KC, ROHS on request

Why Choose THOR Power

A vertically integrated lithium battery manufacturer (Dengzhou Xinju New Energy) with the scale and engineering depth to deliver custom LiPo cells reliably at volume.

3 factories, 800+ staff

Source-manufacturer scale — not a trading company.

200+ engineers

R&D led by a chief battery scientist for rapid custom design.

60,000 pouch cells / day

High-volume manufacturing with products exported across the US, Europe, Japan & Korea, SE Asia, Latin America and Africa.

End-to-end quality control

From raw material to finished cell.

Factory Photos

Automation Equipment

Testing Equipment

Warehouse & Certifications

Model	THOR-401220
Battery Type	Lithium Polymer (LiPo) pouch cell
Capacity	70 mAh
Certifications	UN38.3 / MSDS (IEC 62133-2, CE, KC on request)
MOQ	From 10 pcs for samples; production quoted per project
Customization	Size, capacity, connector, wire length, PCM/BMS, NTC, label

3.7V 70mAh Lithium Polymer (LiPo) Battery with Connector | THOR-401220

THOR-401220 is a 3.7V 70mAh LiPo pouch cell with approximately 0.26Wh nominal energy and a very small 4 × 12 × 20mm bare-cell envelope. It adds width and capacity over the 4 × 10 × 20mm THOR-401020 while remaining shorter than 70mAh alternatives built around 25mm length. Final pack and pulse-load requirements require validation.

Wholesale Pricing (USD)

Order Quantity	Reference Unit Price
10 – 99 pcs	—
100 – 999 pcs	—
1,000 – 9,999 pcs	—
10,000+ pcs	Contact for best price

Reference pricing for this model is being finalised. Talk to a Battery Engineer for a same-day quote.

Prices are for standard configuration reference only. Final pricing may vary by cell size, capacity, connector, wire length, PCM/BMS, label, packaging, certification requirements, and order quantity. Shipping cost is not included. MOQ: from 10 pcs for samples; production quantities are quoted per project.

Get an Engineering Quote

Custom sizes, capacities, connectors & PCM/BMS available. MOQ-friendly. Samples in days.

Battery Specification — THOR-401220

Mechanical Characteristics

Model	THOR-401220
Cell Type	Lithium Polymer (LiPo) pouch cell
Configuration	1S1P (customizable)
Dimensions (T×W×L)	4 × 12 × 20 mm (bare cell)
Dimension Tolerance	Thickness ±0.2 mm; Width/Length ±0.5 mm
With PCM Board	Length approx. +2 mm vs bare cell
Weight	Approx. 2 g
PCM / BMS	Included (standard)
NTC Thermistor	Optional
Connector	PH2.0 / Molex 1.25 (custom available)
Wire Length	Customizable
UN38.3	Test Summary available
Safety Data Sheet	SDS / MSDS available
IEC 62133-2	Available for selected models
RoHS / REACH	Compliance documents available

Electrical Specifications

Nominal Voltage	3.7 V
Rated Capacity	70 mAh
Energy	0.26 Wh
Charge Voltage	4.20 ± 0.03 V
Standard Charge	14 mA (0.2C), CC/CV to 4.20 V
Charge Cut-off Current	0.02C
Max. Charge Current	70 mA (up to 1C), model-specific
Discharge Cut-off Voltage	3.0 V
Standard Discharge	14 mA (0.2C)
Max. Continuous Discharge	70 mA (1C), model-specific
Internal Resistance	≤ 160 mΩ (1 kHz, 50% SOC, 25℃)
Cycle Life	≥ 500 cycles, ≥ 80% capacity
Cycle Test Condition	0.5C charge / 0.5C discharge, 3.0-4.2 V, 25 ± 2℃
Charge Temperature	0℃ ~ 45℃
Discharge Temperature	-20℃ ~ 60℃
Storage Temperature	-10℃ ~ 45℃ (≤ 1 month)
Capacity Retention	≥ 90% after 28 days @ 25℃
Note	Higher discharge-rate designs available upon engineering review

Protection Circuit (when PCM equipped)

Overcharge Detection	4.28 ± 0.03 V per cell
Overcharge Release	4.08 ± 0.05 V
Over-discharge Detection	2.75 ± 0.05 V
Over-discharge Release	3.00 ± 0.05 V
Overcurrent Protection	Per PCM design (2A ~ 5A typical)
Short-circuit Protection	Yes, auto-recovery

Values shown are THOR Power standard specifications for this cell class. Final parameters are confirmed in the engineering datasheet for your configuration.

Typical Applications — THOR-401220

Miniature Wireless Sensor Beacons — PrimaryThe 12 × 20mm footprint can suit small beacons or sensor modules with very low average demand. Confirm radio bursts, sleep current, reporting interval and the finished battery envelope.

Compact Hearable Accessory ElectronicsTHOR-401220 may suit miniature audio accessory modules after pulse load, charging, acoustic layout, connector clearance and mechanical protection are validated.

Small Rechargeable Tags & Wearable ModulesThe cell can support compact tags or wearable modules that prioritize minimum length. Validate duty cycle, enclosure sealing, wire routing and user-accessible charging requirements.
