Custom LiPo Batteries for Compact Electronic Devices
Factory-direct custom lithium polymer batteries with flexible size, capacity, voltage, connector, wire length, PCM protection, labeling, and OEM/ODM support for compact rechargeable electronic products.
How Custom LiPo Batteries Fit Compact Electronic Devices
For compact, lightweight, and high-discharge devices, THOR Power develops high-performance custom semi-solid polymer LiPo battery solutions based on device space, discharge demand, connector layout, PCM protection, and OEM project requirements — combining flexible pouch cell design, latest R&D support, and practical battery customization experience.
High-Performance Customization Points
Each custom LiPo battery is engineered around device structure, power demand, safety protection, and OEM production requirements to support better size fit, discharge performance, reliability, and long-term supply consistency.
Custom LiPo Battery Types for Different Device Requirements
THOR Power supports different custom lithium polymer battery types based on device space, thickness, capacity, discharge current, connector layout, PCM protection, and OEM project requirements.
General-Purpose

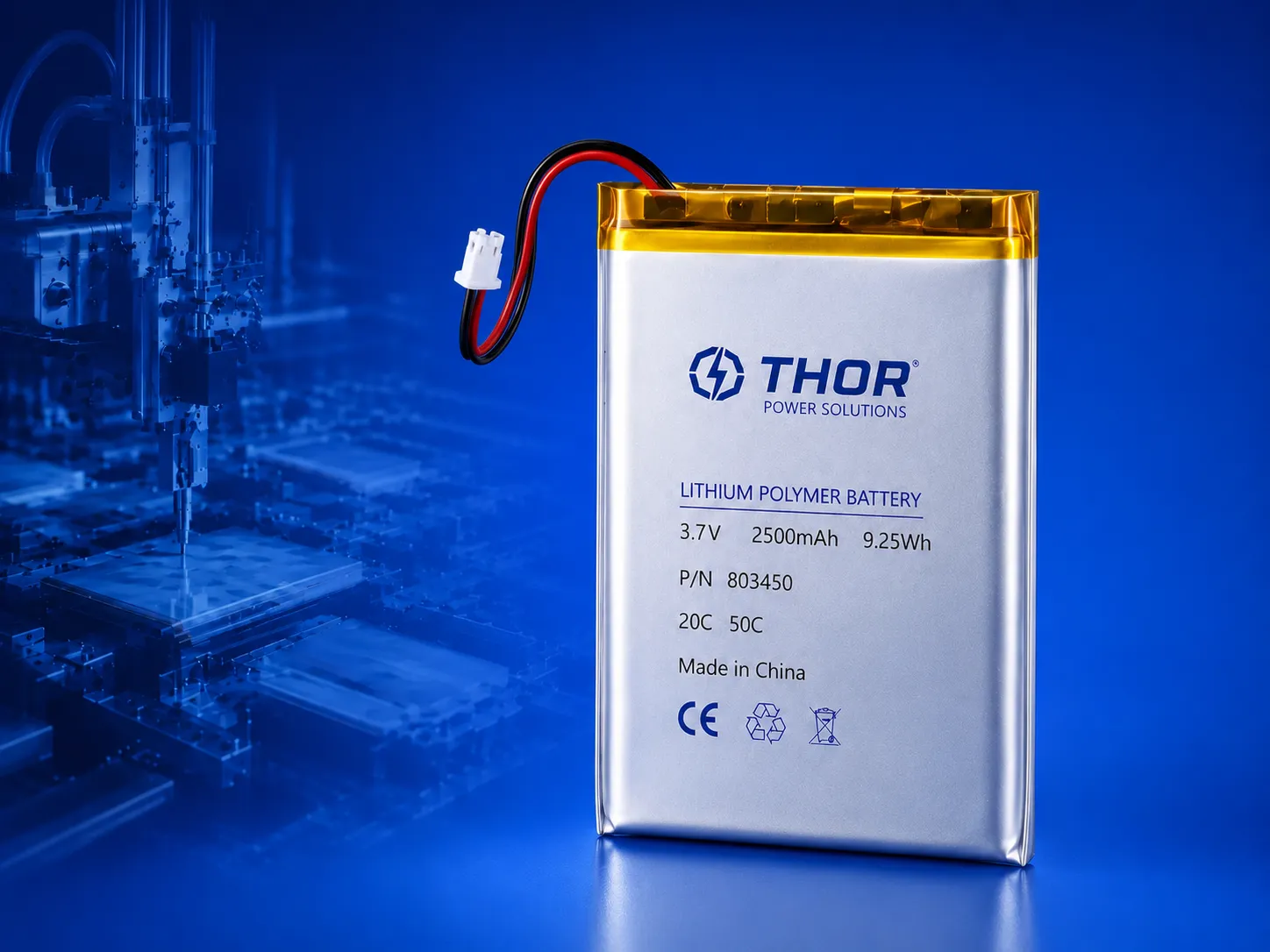

General-Purpose LiPo Batteries
Reliable LiPo pouch batteries for common rechargeable devices, with custom size, capacity, connector, wire length, PCM protection, label and packaging support.
Ultra-Thin

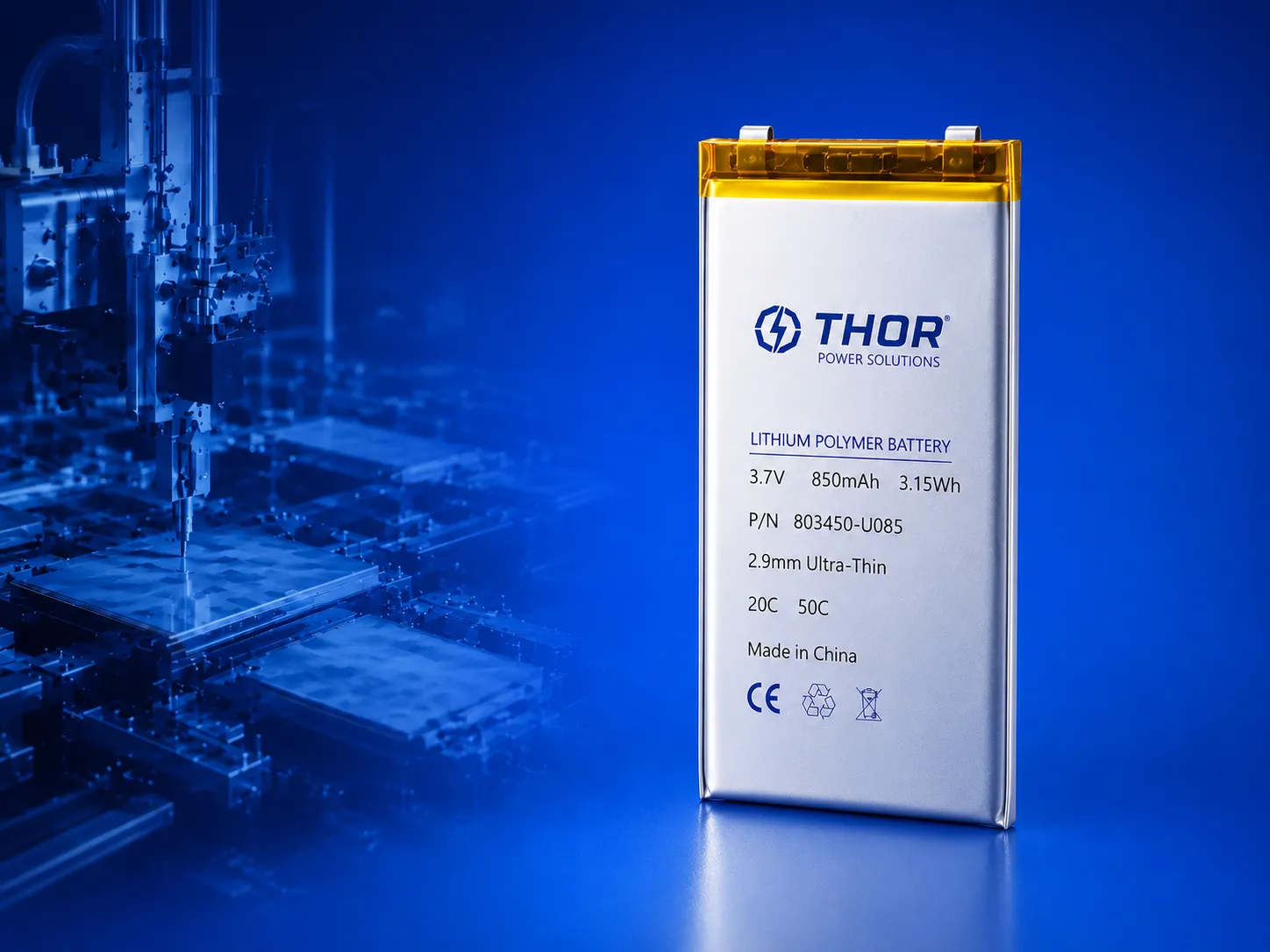

Ultra-Thin LiPo Batteries
Thin pouch LiPo batteries for slim products where thickness, weight and internal space are critical to device structure and user experience.
High-Capacity

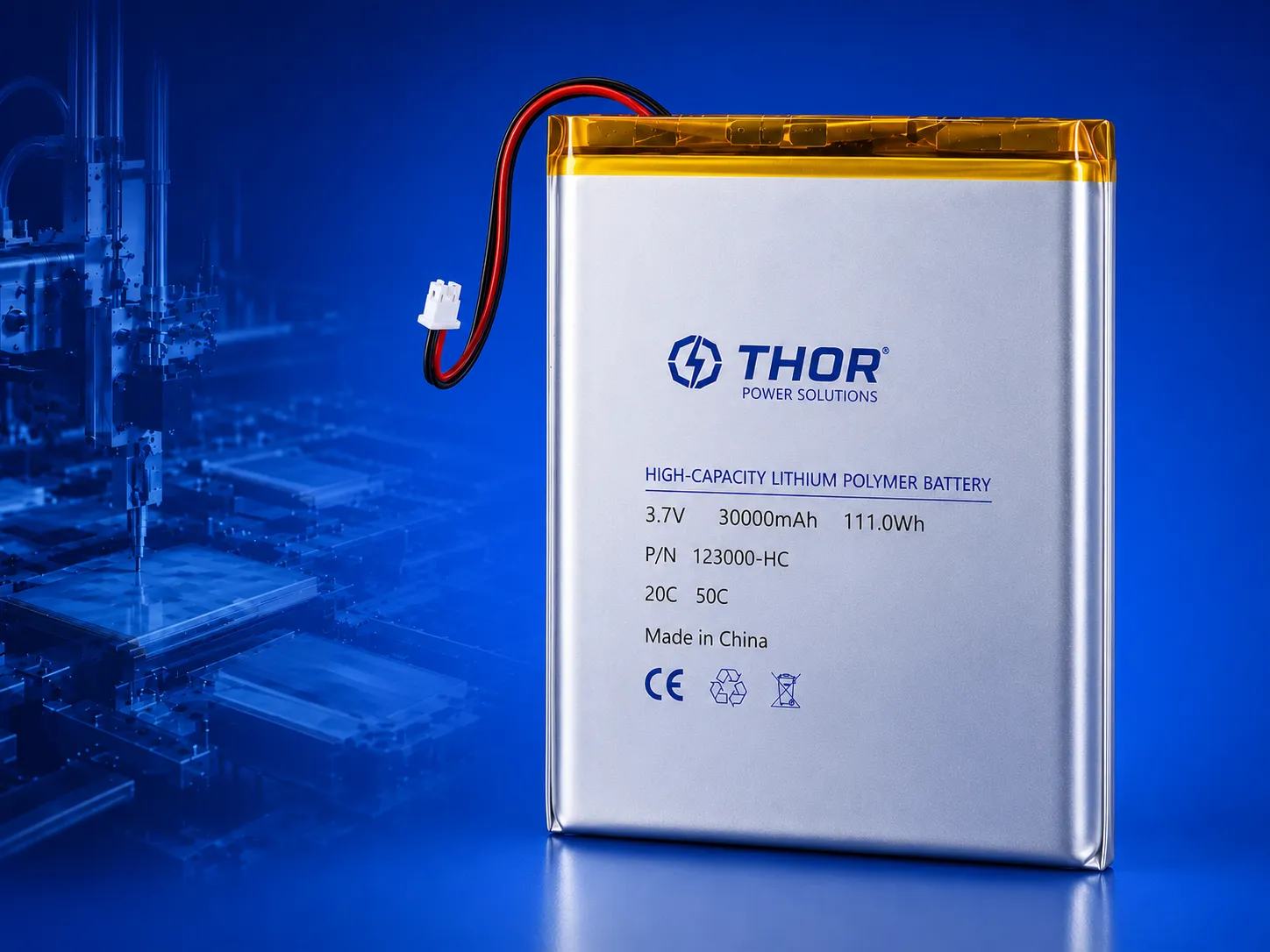

High-Capacity LiPo Batteries
Higher-capacity LiPo batteries designed for longer runtime while balancing size, weight, safety protection and final product structure.
High-Discharge

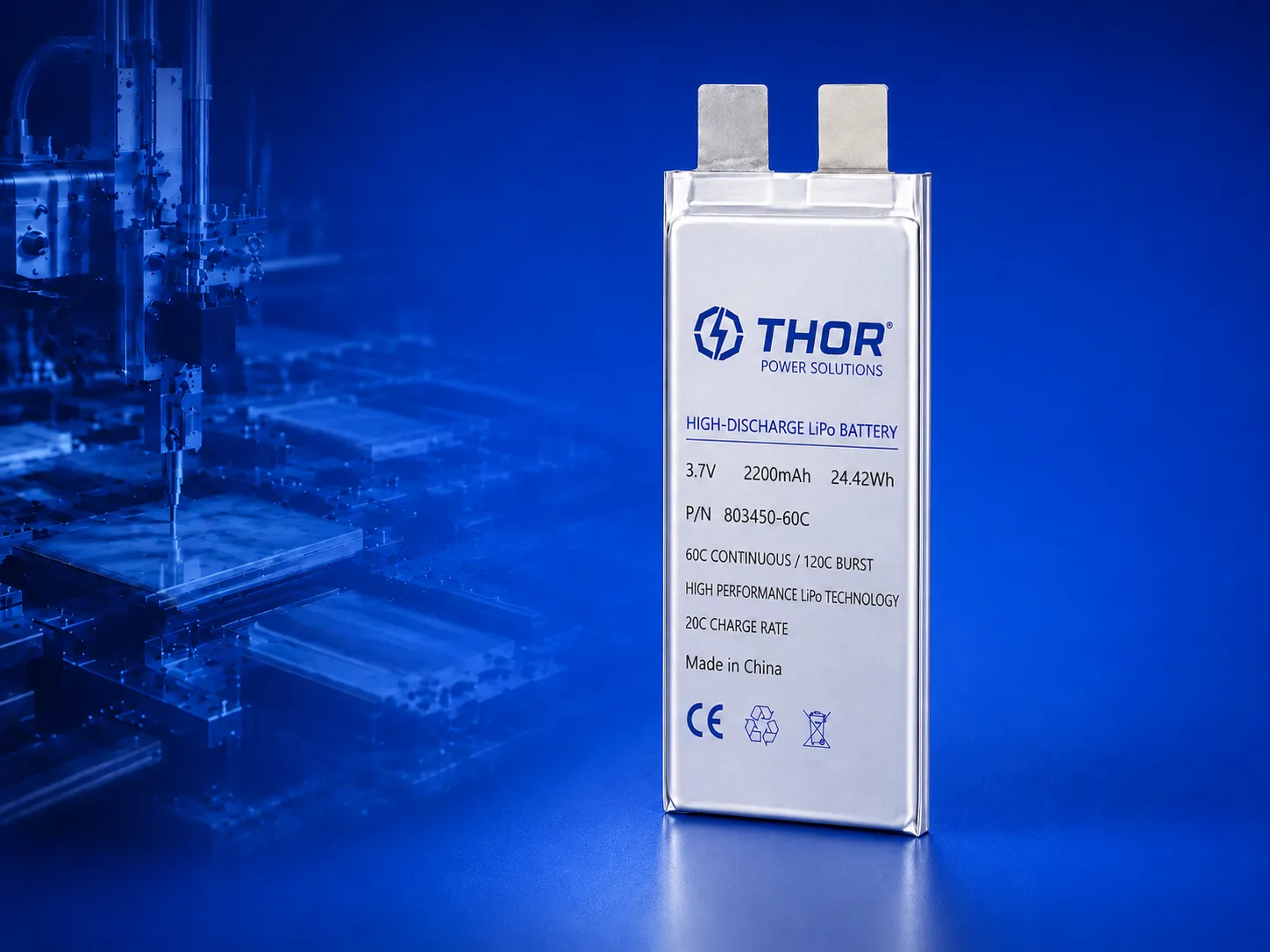

High-Discharge LiPo Batteries
Selected high-discharge LiPo models support higher current output for RC models, drones, FPV devices and other power-demanding products.
Custom-Shaped

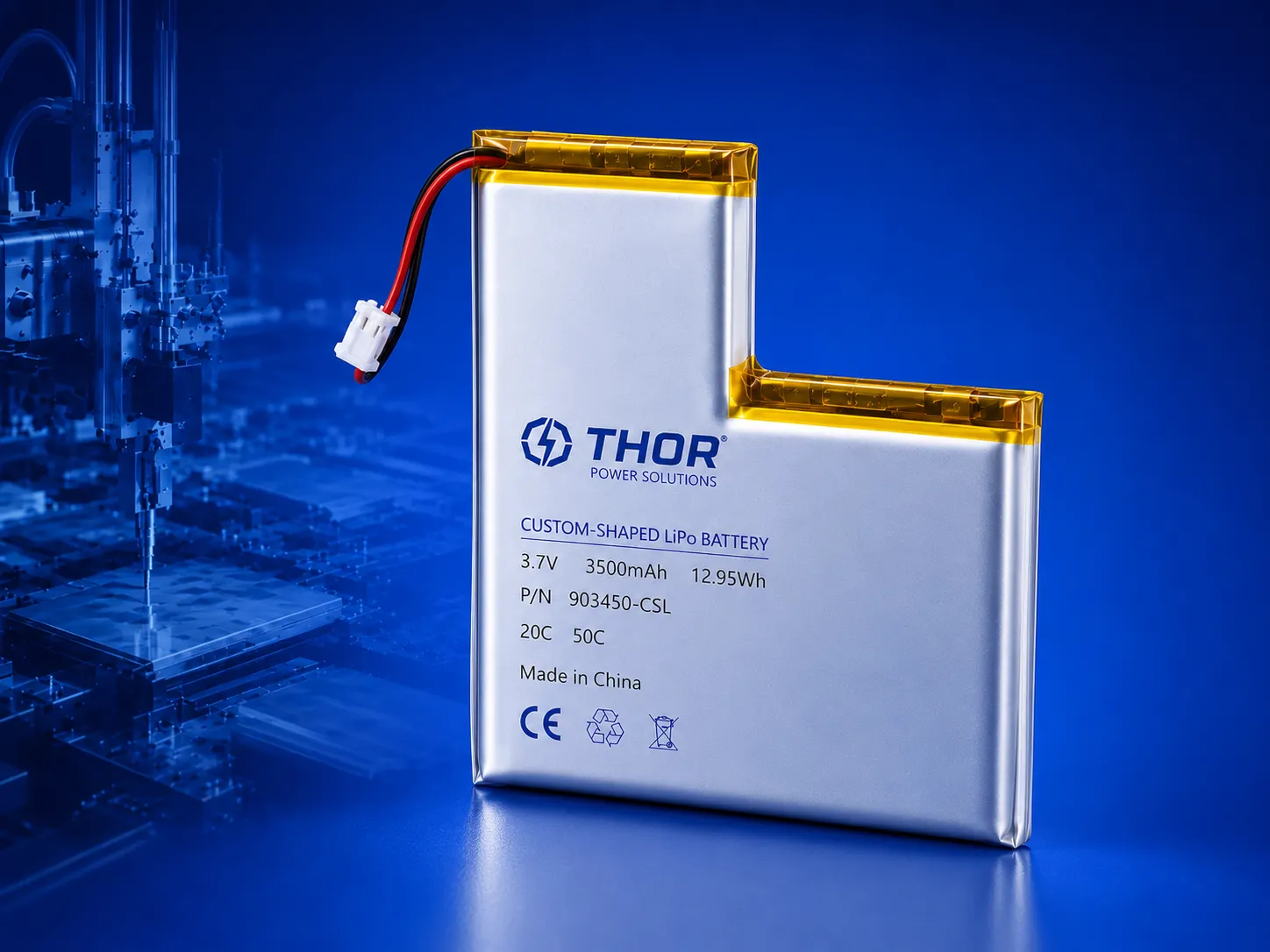

Custom-Shaped LiPo Batteries
Custom-shaped pouch battery designs for limited, irregular or non-standard internal spaces with special assembly requirements.
Semi-Solid Option

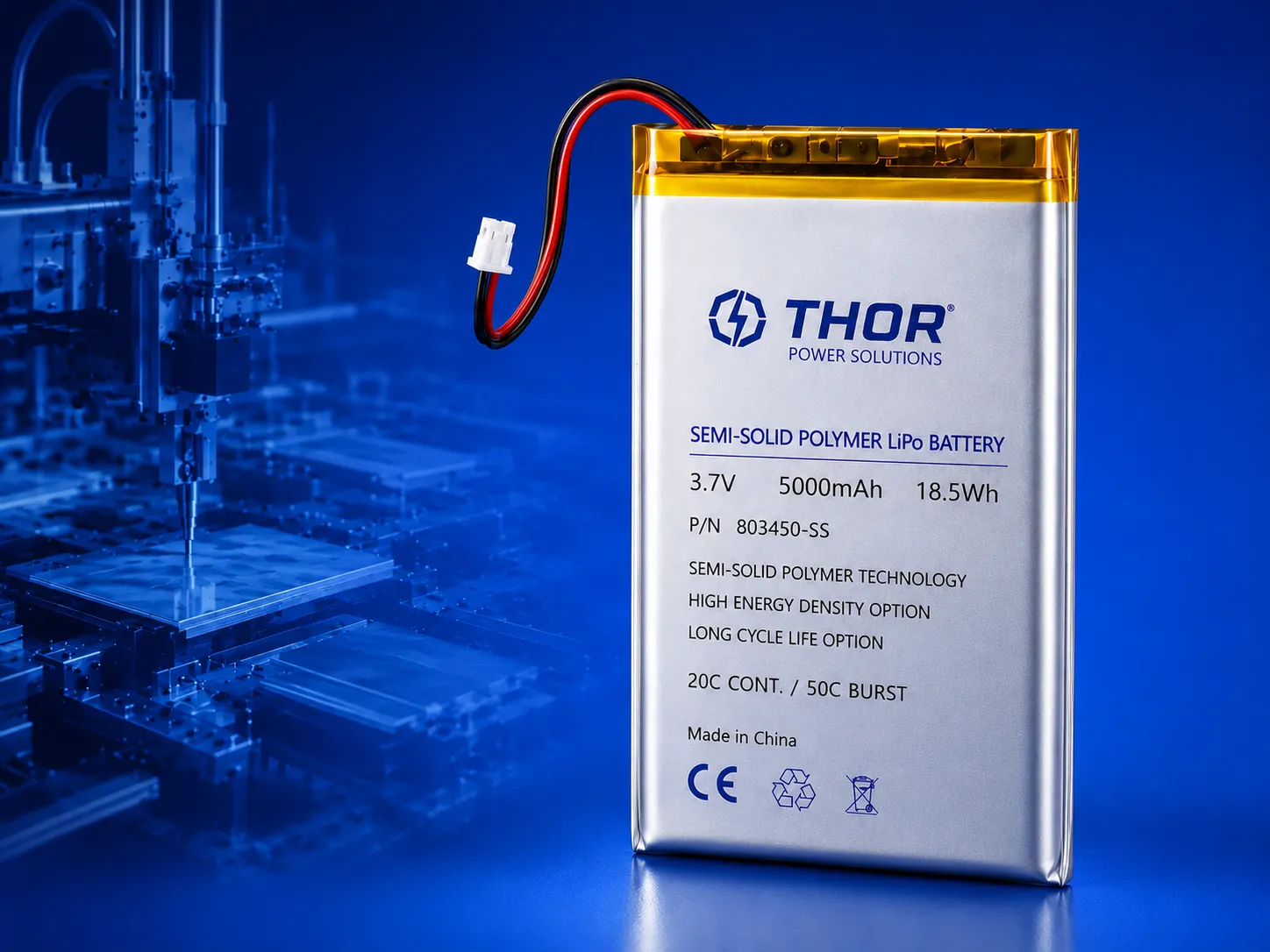

Semi-Solid Polymer LiPo Battery Options
For selected high-performance projects, semi-solid polymer LiPo options support a better balance of size, safety, power output and reliability.
Note: Final battery type, capacity, discharge rate, connector, PCM protection and documentation support can be confirmed according to your device structure, load current, testing needs and OEM/ODM project plan. *Discharge rate depends on cell type, size, structure and application requirements.
Not sure which LiPo battery type fits your application?
View LiPo Battery ApplicationsCustom LiPo Battery Specifications for Your Device

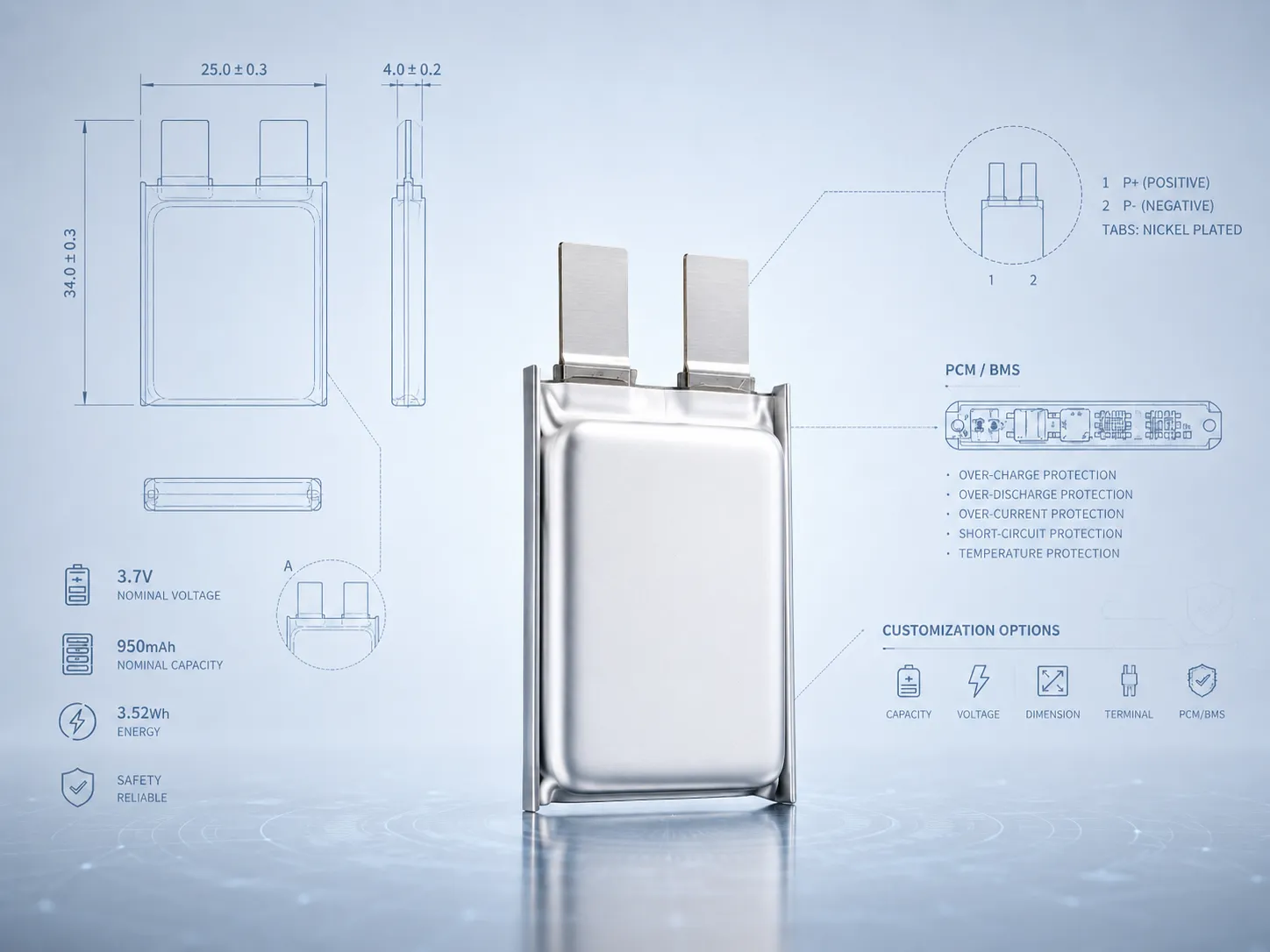

Every custom LiPo battery project starts from real device requirements. THOR Power can adjust battery size, capacity, voltage, connector, wire length, PCM protection, label, packaging, and sample testing details before mass production.

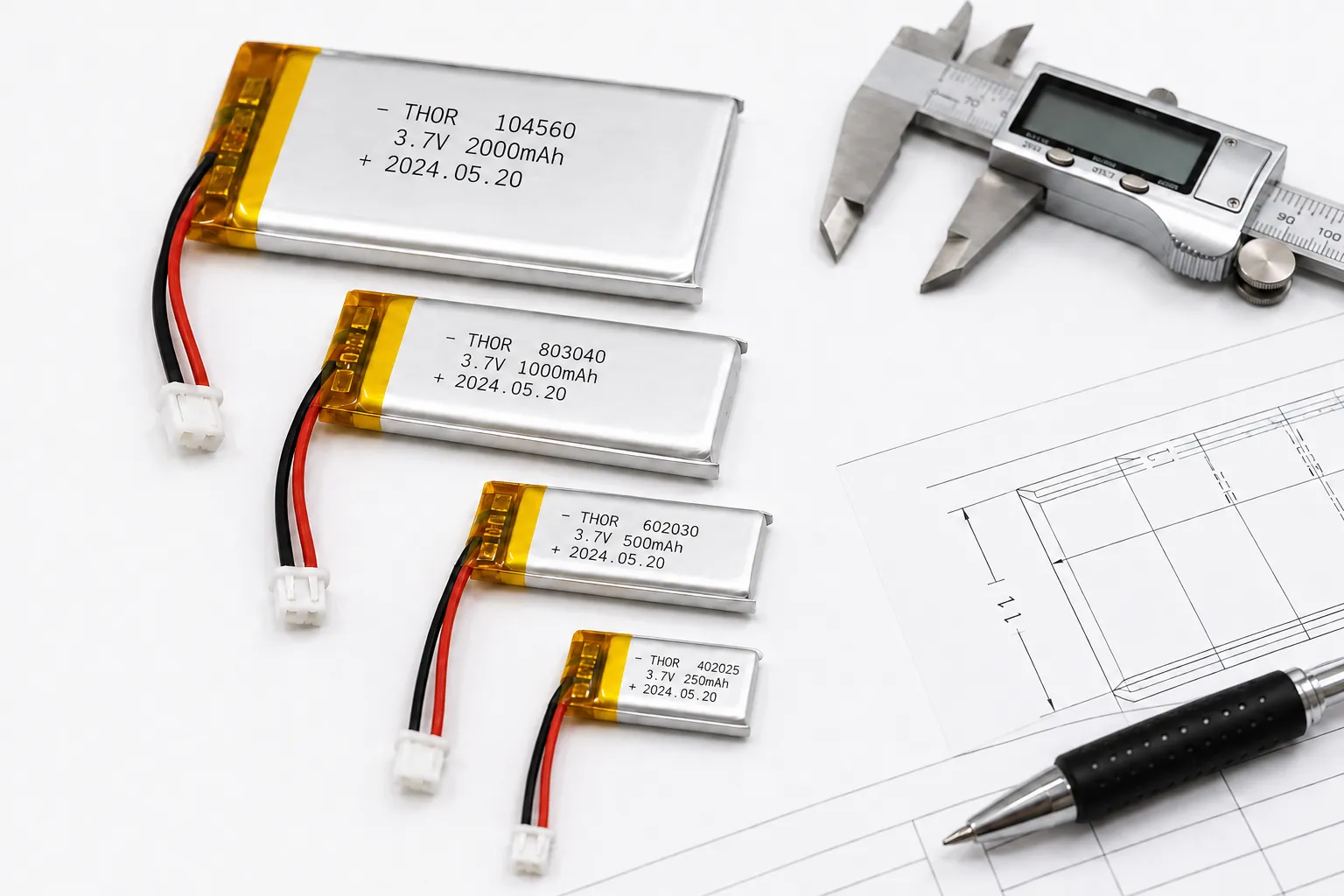

Built Around Your Device Requirements
A suitable LiPo battery is not selected only by voltage and capacity. Our team reviews device space, runtime target, discharge current, charging method, connector position, PCM protection needs, and assembly structure before recommending a custom battery solution.
Size & Thickness
Battery thickness, width, length, and pouch cell structure can be adjusted according to internal device space.
Capacity & Runtime
Capacity can be matched according to target runtime, product size, discharge current, and safety requirements.
Voltage Platform
Single-cell 3.7V LiPo batteries and customized pack voltage can be reviewed according to product power design.
Connector & Wire
Connector type, wire length, wire gauge, polarity, and output direction can be customized for device assembly.
PCM Protection
PCM protection can be configured for overcharge, over-discharge, overcurrent, short-circuit, and charging safety.
Tabs & Output Direction
Metal tabs, soldering position, and output direction can be reviewed for compact or special assembly structures.
Label & Packaging
OEM label, model information, warning marks, heat shrink, and packaging details can be prepared according to project needs.
Sample Testing Support
Sample testing, specification confirmation, and pre-production review help reduce risk before mass production.
Have a device but not sure which battery specification is suitable?
Send Your Battery RequirementsFull-Process Quality Control for Custom LiPo Batteries
THOR Power applies strict quality control across key production steps from slurry preparation, electrode coating, calendering, slitting, stacking, pouch packaging, electrolyte filling, formation, degassing, aging and capacity grading to PCM welding, connector assembly, electrical testing, packing, and final shipment review.
Reduce Quality Risks Before Delivery
For custom LiPo battery projects, poor coating consistency, weak tab or PCM welding, unstable protection settings, connector polarity errors, pouch appearance issues, or incomplete QC records may cause unstable runtime, charging problems, swelling risk, installation errors, or shipment disputes. Before delivery, THOR Power reviews production QC records and inspection reports again as part of our standard quality control process to improve traceability and reduce project risks.
LiPo Cell Manufacturing Process QC
Slurry preparation, electrode coating, calendering, slitting, stacking, pouch packaging, electrolyte filling, formation, degassing, and sealing records can be reviewed as part of the LiPo cell manufacturing quality process.
Aging, Capacity Grading & Electrical Testing
Aging, capacity grading, voltage, internal resistance, charging status, discharge performance, and runtime consistency are checked to reduce power mismatch and batch variation risks.
PCM Welding, Connector & Polarity Review
PCM protection, tab welding, soldering, connector type, wire length, polarity, insulation, and output direction are reviewed to reduce protection mismatch and device integration risks.
Final QC Report & Shipment Review
Before delivery, production QC records, inspection reports, pouch appearance, sealing, label, heat shrink, packing method, carton mark, and shipping documents are reviewed again for project traceability.
Factory quality control continues from LiPo cell manufacturing to final shipment review. Production QC record review, electrical performance testing, PCM protection confirmation, connector polarity inspection, pouch appearance review, labeling, packing inspection, and shipment document review help make OEM LiPo battery projects safer and more consistent.
Best-Selling Custom LiPo Battery Models for Long-Term Supply
Explore selected LiPo pouch battery models from our long-term supplied products. THOR Power supports both ready-to-install LiPo batteries with wires and connectors, and LiPo pouch cells with tabs for further assembly.
Hundreds of Custom LiPo Pouch Battery Models
THOR Power supplies hundreds of custom LiPo pouch battery models for OEM and ODM projects, including ready-to-install LiPo batteries with wires and connectors, and pouch cells with tabs for PCB welding or further PACK integration.
Size, capacity, voltage, PCM protection, wire, connector, polarity, label, packaging, tab direction and pouch structure can all be customized. Almost every LiPo battery customization requirement can be reviewed and developed by our factory.
Connector, Tab, PCM & Custom Shape Examples
Selected real LiPo battery samples for custom connector, wire length, PCM protection, tab direction, label, pouch structure and long-term supply review.
Partial Custom LiPo Battery Specification Options
The specifications below are only part of the LiPo pouch battery models our factory can customize. Due to limited page space, not all available sizes are listed. You can choose similar size, capacity and output options as a starting point, then send us your final device requirements.
| Model | Thickness | Width | Length | Voltage | Capacity | Output Option | Customizable |
|---|---|---|---|---|---|---|---|
| 301015 | 3.0mm | 10mm | 15mm | 3.7V | 45mAh | Tabs / Connector | Yes |
| 301020 | 3.0mm | 10mm | 20mm | 3.7V | 60mAh | Tabs / Connector | Yes |
| 351020 | 3.5mm | 10mm | 20mm | 3.7V | 70mAh | Tabs / Connector | Yes |
| 401020 | 4.0mm | 10mm | 20mm | 3.7V | 90mAh | Tabs / Connector | Yes |
| 401030 | 4.0mm | 10mm | 30mm | 3.7V | 120mAh | Tabs / Connector | Yes |
| 451220 | 4.5mm | 12mm | 20mm | 3.7V | 110mAh | Tabs / Connector | Yes |
| 501225 | 5.0mm | 12mm | 25mm | 3.7V | 150mAh | Tabs / Connector | Yes |
| 501230 | 5.0mm | 12mm | 30mm | 3.7V | 180mAh | Tabs / Connector | Yes |
| 502030 | 5.0mm | 20mm | 30mm | 3.7V | 250mAh | Tabs / Connector | Yes |
| 502035 | 5.0mm | 20mm | 35mm | 3.7V | 300mAh | Tabs / Connector | Yes |
| 502040 | 5.0mm | 20mm | 40mm | 3.7V | 400mAh | Tabs / Connector | Yes |
| 503030 | 5.0mm | 30mm | 30mm | 3.7V | 400mAh | Tabs / Connector | Yes |
| 503040 | 5.0mm | 30mm | 40mm | 3.7V | 500mAh | Tabs / Connector | Yes |
| 523450 | 5.2mm | 34mm | 50mm | 3.7V | 1000mAh | Tabs / Connector | Yes |
| 602030 | 6.0mm | 20mm | 30mm | 3.7V | 300mAh | Tabs / Connector | Yes |
| 602040 | 6.0mm | 20mm | 40mm | 3.7V | 500mAh | Tabs / Connector | Yes |
| 603030 | 6.0mm | 30mm | 30mm | 3.7V | 500mAh | Tabs / Connector | Yes |
| 603040 | 6.0mm | 30mm | 40mm | 3.7V | 750mAh | Tabs / Connector | Yes |
| 603450 | 6.0mm | 34mm | 50mm | 3.7V | 1000mAh | Tabs / Connector | Yes |
| 652540 | 6.5mm | 25mm | 40mm | 3.7V | 700mAh | Tabs / Connector | Yes |
| 702030 | 7.0mm | 20mm | 30mm | 3.7V | 350mAh | Tabs / Connector | Yes |
| 703040 | 7.0mm | 30mm | 40mm | 3.7V | 900mAh | Tabs / Connector | Yes |
| 704050 | 7.0mm | 40mm | 50mm | 3.7V | 1500mAh | Tabs / Connector | Yes |
| 704060 | 7.0mm | 40mm | 60mm | 3.7V | 2000mAh | Tabs / Connector | Yes |
| 753040 | 7.5mm | 30mm | 40mm | 3.7V | 1000mAh | Tabs / Connector | Yes |
| 803040 | 8.0mm | 30mm | 40mm | 3.7V | 1200mAh | Tabs / Connector | Yes |
| 803450 | 8.0mm | 34mm | 50mm | 3.7V | 1500mAh | Tabs / Connector | Yes |
| 805080 | 8.0mm | 50mm | 80mm | 3.7V | 4000mAh | Tabs / Connector | Yes |
| 902540 | 9.0mm | 25mm | 40mm | 3.7V | 950mAh | Tabs / Connector | Yes |
| 903450 | 9.0mm | 34mm | 50mm | 3.7V | 1800mAh | Tabs / Connector | Yes |
| 904060 | 9.0mm | 40mm | 60mm | 3.7V | 2500mAh | Tabs / Connector | Yes |
| 102540 | 10.0mm | 25mm | 40mm | 3.7V | 950mAh | Tabs / Connector | Yes |
| 103450 | 10.0mm | 34mm | 50mm | 3.7V | 2000mAh | Tabs / Connector | Yes |
| 105080 | 10.0mm | 50mm | 80mm | 3.7V | 5000mAh | Tabs / Connector | Yes |
Note: These are only selected examples from our custom LiPo pouch battery model references. Many other sizes, capacities, connector types, wire layouts, PCM protection options, tab directions, labels, and packaging details can be customized according to your real device structure and project requirements.
Explore more custom battery support:
Can’t find the exact LiPo battery size you need?
Send Your Required Battery SizeCustom LiPo Battery FAQ for Electronic Device Applications
Find answers about custom LiPo battery size selection, 3.7V voltage options, connector and wire customization, PCM/BMS protection, high-discharge LiPo battery performance, sample testing, and battery integration for electronic devices, GPS trackers, IoT devices, medical devices, RC models, and wearable products.
The right custom LiPo battery size should be selected based on internal device space, required runtime, working current, peak current, connector position, PCM protection, and assembly structure. A larger capacity is not always better if the battery becomes too thick, difficult to install, or unsuitable for the device structure.
Yes. If you provide the available battery space, device application, target runtime, charging method, working current, and connector position, THOR Power can help estimate a suitable LiPo battery size, capacity range, PCM protection, and connector layout before sample development.
Yes. A 3.7V LiPo battery can be customized with different connector types, wire length, wire gauge, polarity, output direction, PCM protection, NTC, label, and packaging according to device assembly and charging requirements.
A LiPo pouch cell with tabs is usually used for PCB welding or further pack integration, while a LiPo battery with connector is normally ready for device installation after adding wires, connector, PCM protection, polarity confirmation, label, and insulation.
A 1000mAh LiPo battery may perform differently depending on device power consumption, working current, peak current, discharge rate, temperature, connector resistance, PCM protection settings, and power management design. Runtime should be evaluated based on real device load, not capacity alone.
The discharge rate shows how much current a LiPo battery can deliver compared with its capacity. Higher C-rate LiPo batteries may support stronger burst power for RC models, drones, FPV devices, or high-current products, but the cell capability, heat generation, connector, PCM/BMS design, and safety requirements must be reviewed.
Before replacing an existing LiPo battery, check the original battery size, voltage, capacity, connector type, wire length, polarity, PCM protection, discharge current, charging method, and available installation space to avoid connector mismatch, charging issues, assembly problems, or safety risks.
For a custom LiPo battery quotation or sample recommendation, please provide the device application, battery size limit, voltage, capacity, working current, peak current, connector type, wire length, PCM/BMS requirements, quantity, label or packaging needs, and shipping or certification requirements.
Need a Custom LiPo Battery Recommendation?
Send us your device space, voltage, capacity, working current, peak current, connector type, wire length, PCM/BMS requirements, application, quantity, and shipping needs. THOR Power will review your project and recommend a practical custom LiPo battery solution.
